Chapter 4 - Extender Configuration in Command Center
3. Note the correct Time Zone Value for your IIF.

Extender Management

The RF Mesh Endpoint Information screen will also provide information about the Extenders and
Mesh Extenders in the utility's RF Mesh system. This screen summarizes information about a
selected Extender and provides an interface for sending commands to the Extender.
Following is the procedure to view Gridstream RF Endpoint Information for a Extender from main
Command Center screen:
1. From Command Center home, select Operations > Endpoints. The Endpoint/Meter Selection
window will open.
2. Enter the Extender Serial Number or Meter Number
3. Click Go. The Endpoint/Meter Selection screen will refresh and display tasks available for the
Extender.
34

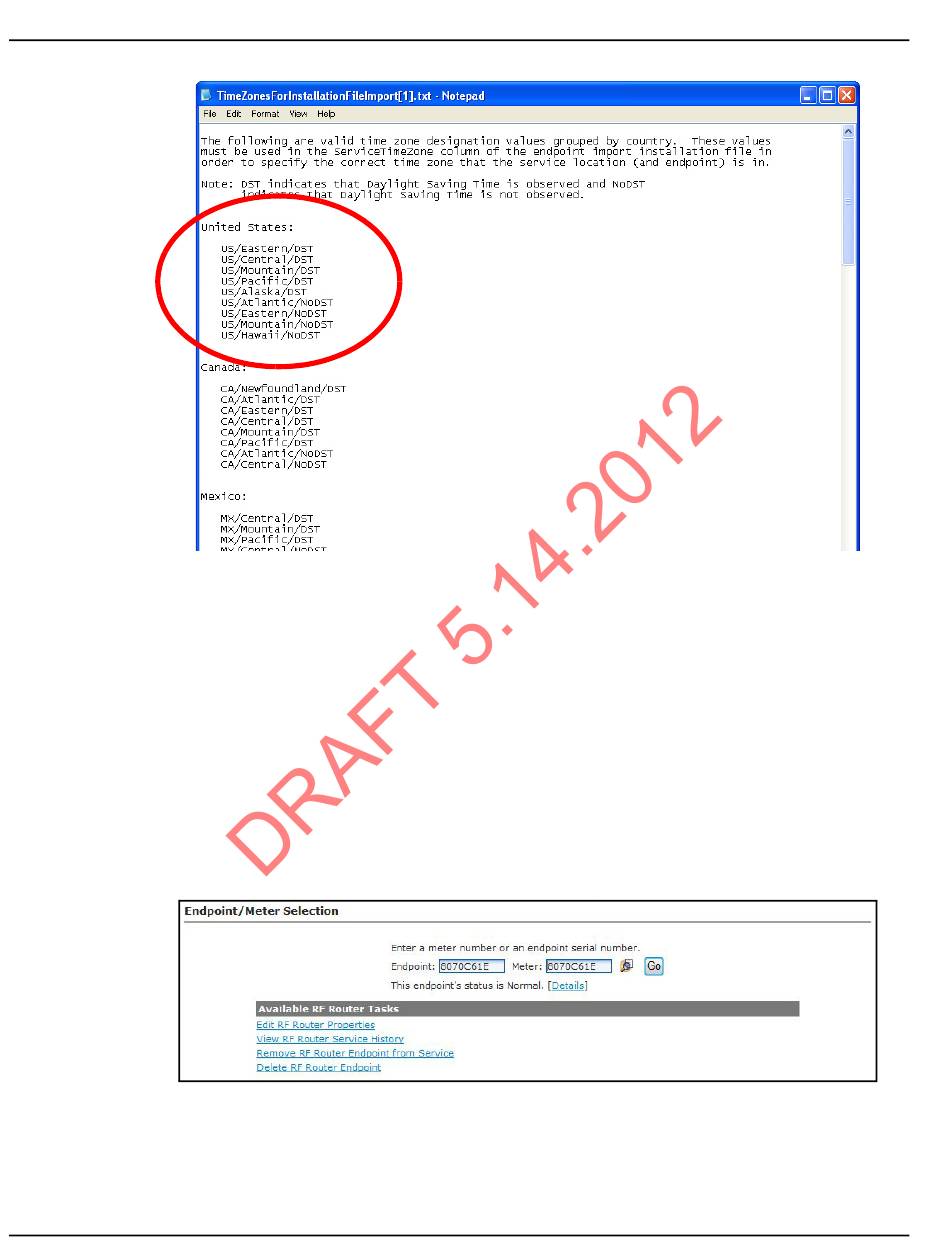

Figure 4 - 6. Time Zone List
Figure 4 - 7. Endpoint/Meter Selection
