Streetlight Arm Mount Installation
VERIFY this street light has power 24/7 and is NOT remotely switched.
Mount Extender to Streetlight Bracket
The following procedure details Extender installation on a standard steetlight arm. Ensure that
required tools and materials are on hand and available.
1. Attach the Extender to the streetlight mounting bracket.
A. Insert bolt (A), with a spring washer (B) and a flat washer (C) in the center hole of each side
B. Tighten the screws with a torque of 45 in. lb.
C. Insert the connector of the AC power cable (E) into the AC power socket (F). Be sure to
D
Installation and User Guide
of the Extender and align to the holes in the mounting bracket (D).
push the connector all the way down until you feel a click which indicates the power cable is
fully engaged.

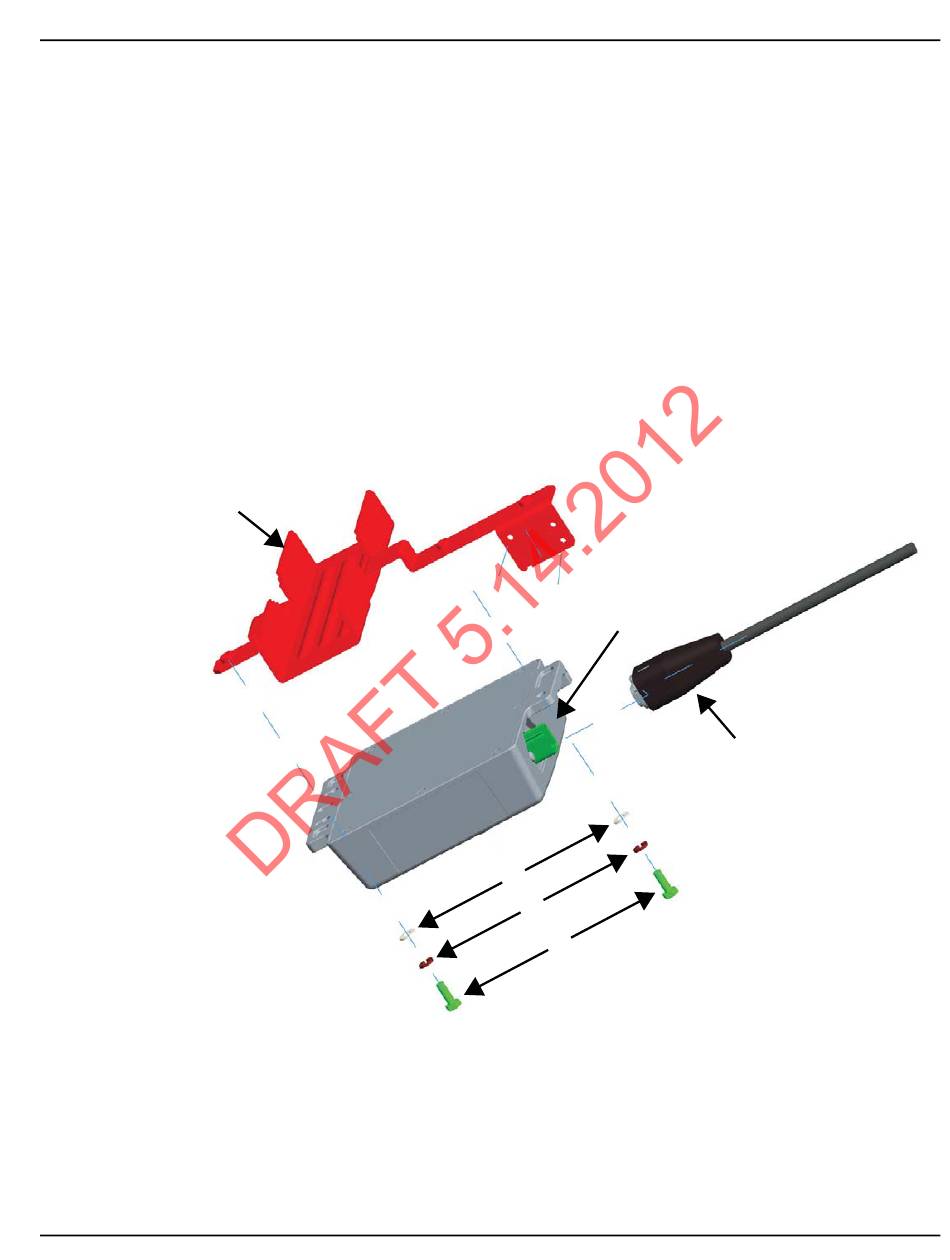

Figure 2 - 9. Mount to Streetlight Bracket
C
B
A
98-1178 Rev AA
Chapter 2 - Installation
F
E
21
