Chapter 3 - RadioShop and Endpoint Testing Manager (ETM)

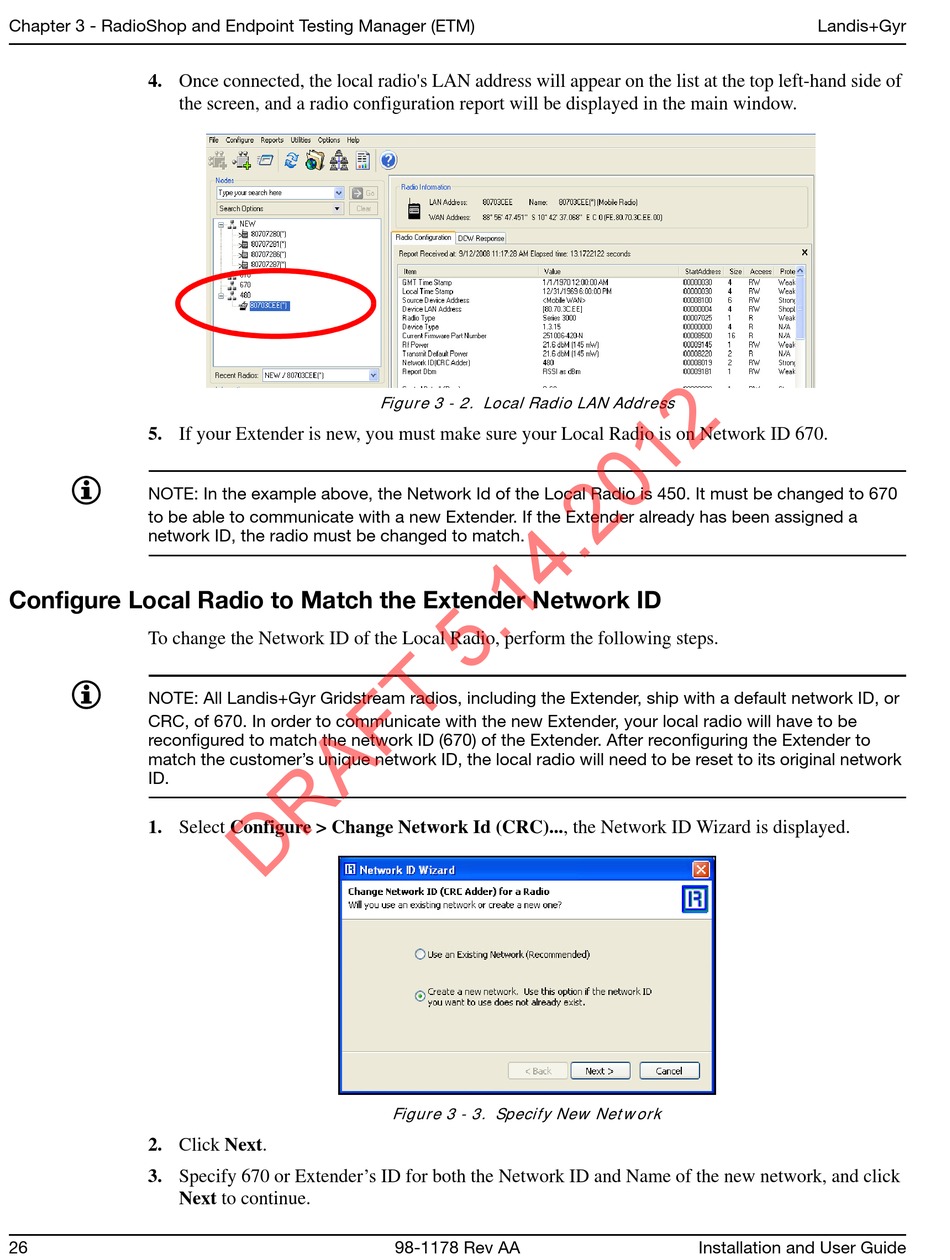

4. Once connected, the local radio's LAN address will appear on the list at the top left-hand side of
the screen, and a radio configuration report will be displayed in the main window.
5. If your Extender is new, you must make sure your Local Radio is on Network ID 670.

NOTE: In the example above, the Network Id of the Local Radio is 450. It must be changed to 670
to be able to communicate with a new Extender. If the Extender already has been assigned a
network ID, the radio must be changed to match.

Configure Local Radio to Match the Extender Network ID

To change the Network ID of the Local Radio, perform the following steps.

NOTE: All Landis+Gyr Gridstream radios, including the Extender, ship with a default network ID, or
CRC, of 670. In order to communicate with the new Extender, your local radio will have to be
reconfigured to match the network ID (670) of the Extender. After reconfiguring the Extender to
match the customer's unique network ID, the local radio will need to be reset to its original network
ID.
1. Select Configure > Change Network Id (CRC)..., the Network ID Wizard is displayed.
2. Click Next.
3. Specify 670 or Extender's ID for both the Network ID and Name of the new network, and click
Next to continue.
26
Figure 3 - 2. Local Radio LAN Address
Figure 3 - 3. Specify New Network
98-1178 Rev AA
Landis+Gyr
Installation and User Guide
