5. Re-install the photocell in the same manner.
6. Using UV stable tie wraps, secure the power cable to the light head.
•
•
•
Installation and User Guide
Landis+Gyr recommends that tie wraps be the steroid version - about 1/2" to 3/4" wide and
very thick.
While securing the power cable to the streetlight arm, care must be taken to NOT DAMAGE
the outer jacket of the power cable. A nick in the outer jacket will allow water to migrate
inside the Extender or the adapter.
Provide enough tension relief and a drip loop for the power cable.

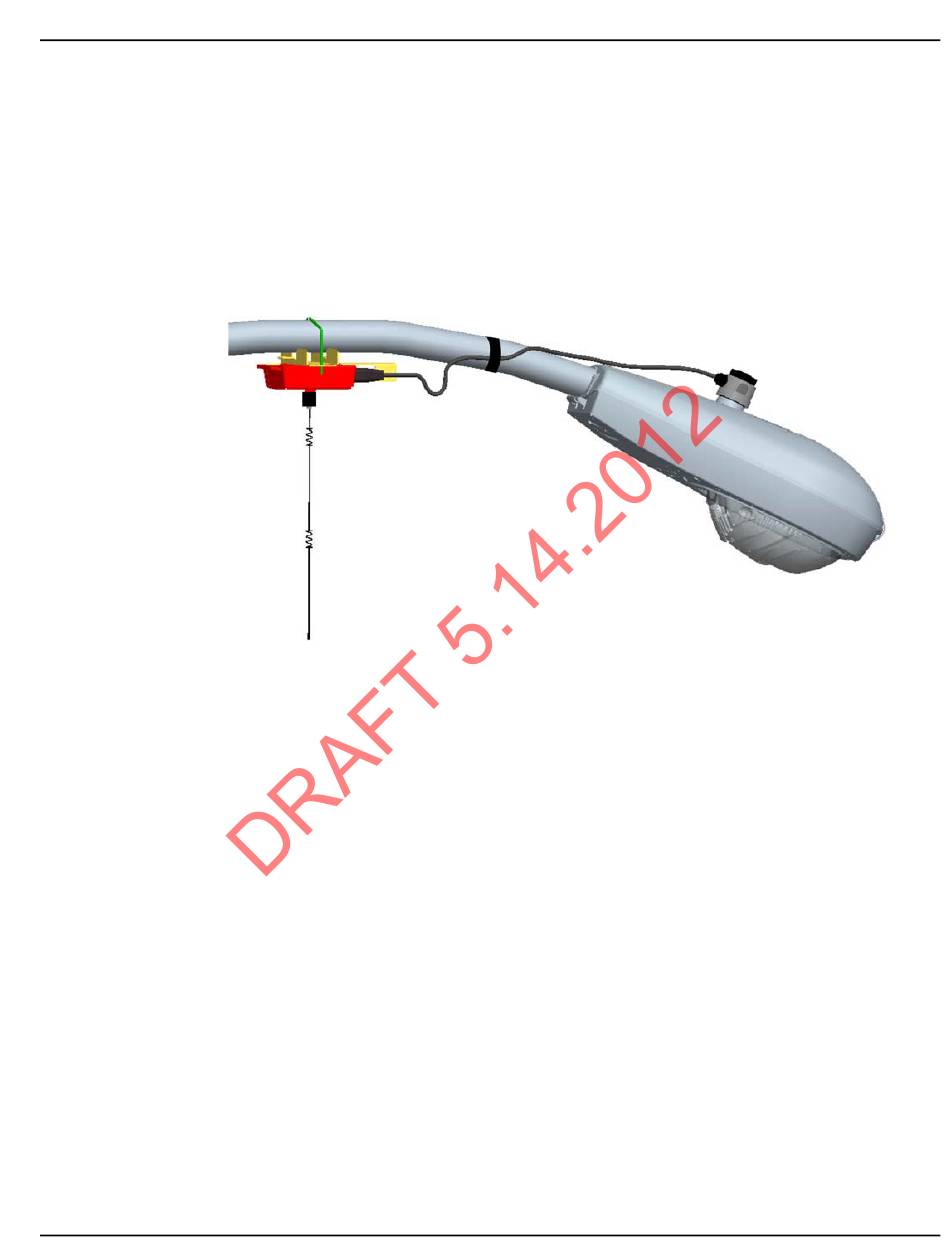

Figure 2 - 11. Extender Mounted on Streetlight Arm
