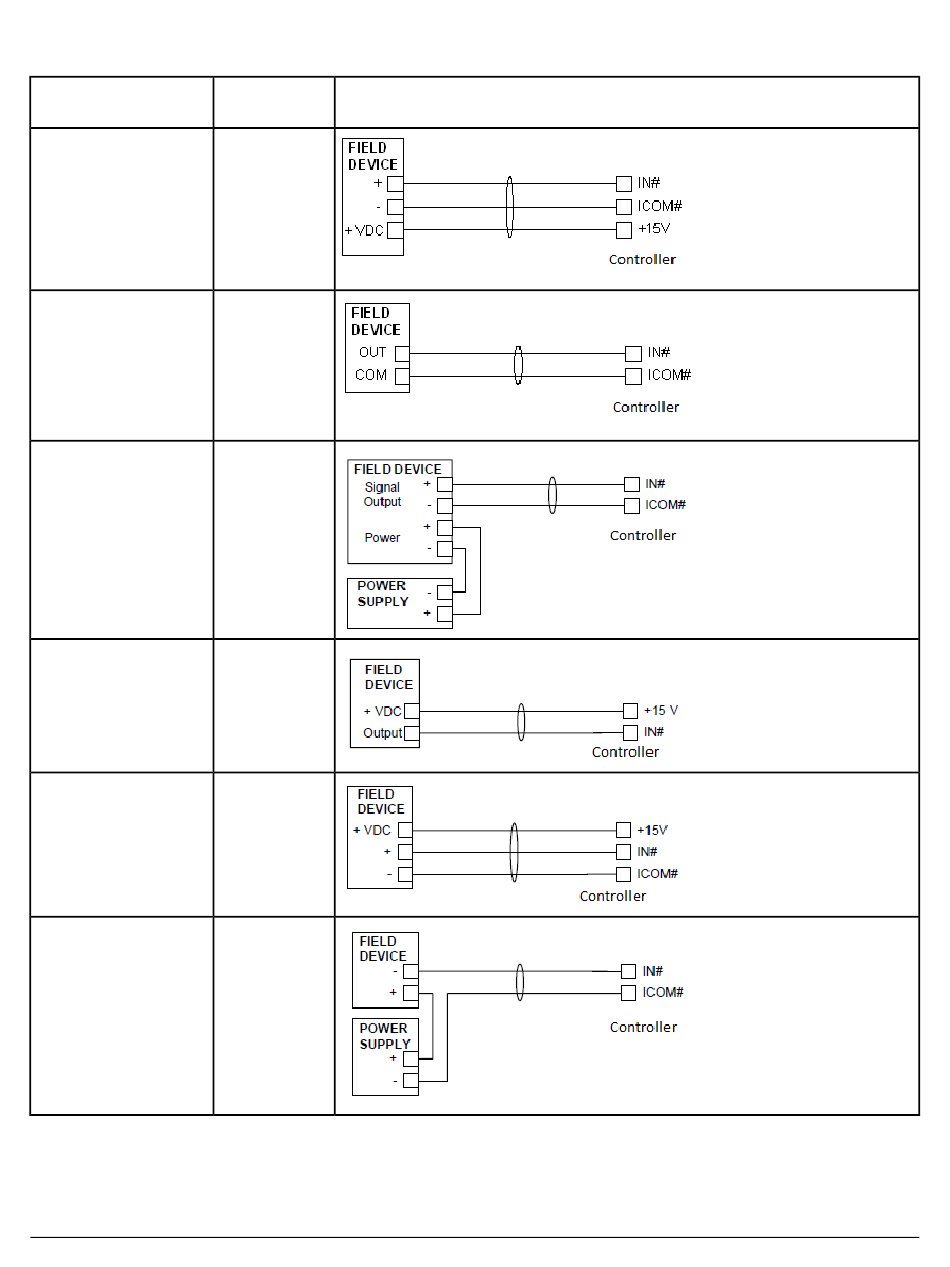

Table 2: Termination Details
Type of Field Device
Voltage Input - Internal
Source
Voltage Input
(Self-Powered)
Current Input - External
Source (Isolated)
Current Input - Internal
Source (2-wire)
Current Input - Internal
Source (3 wire)
Current Input - External
Source (in Loop)
FEC26 Field Equipment Controllers Installation Instructions
Type of
Termination Diagrams
Input/Output
UI
UI
UI
UI
UI
UI
8
