Table 1: FEC2621 Physical Features
Callout Physical Feature: Description and References
1 Binary Output (BO) Source Power Selection Jumper Pin Blocks, 3 – BO Jumper Pin Blocks. See
information.
2 Device Address DIP Switch Block. See
3 Mounting Clip. See
4 Configurable Output (COs) Terminal Blocks. See
5 Analog Outputs (AOs) Terminal Block. See
6 24 VAC, Class 2 Supply Power Terminal Block. See
7 Cover Lift Tab (One of Two). See
8 Display Navigation Buttons. See
Note: Not available on all FEC models.
9 Liquid Crystal Display (LCD) Display Area
Note: Not available on all FEC models.
10 Field Controller (FC) Bus Terminal Block. (See
11 Sensor Actuator (SA) Bus Terminal Block. (See
12 Sensor Actuator (SA) Bus (RJ-12 6-pin Modular Jack). See
13 Binary Input (BI) Terminal Block, 2 – Binary Inputs. See
14 Universal Input (UI) Terminal Blocks, 6 – Universal Inputs. See
15 LED Status Indicators. See
16 Field Controller (FC) Bus Port (RJ-12 6-pin Modular Jack). See
17 Binary Output (BO) Terminal Blocks. See
FEC26 Field Equipment Controllers Installation Instructions

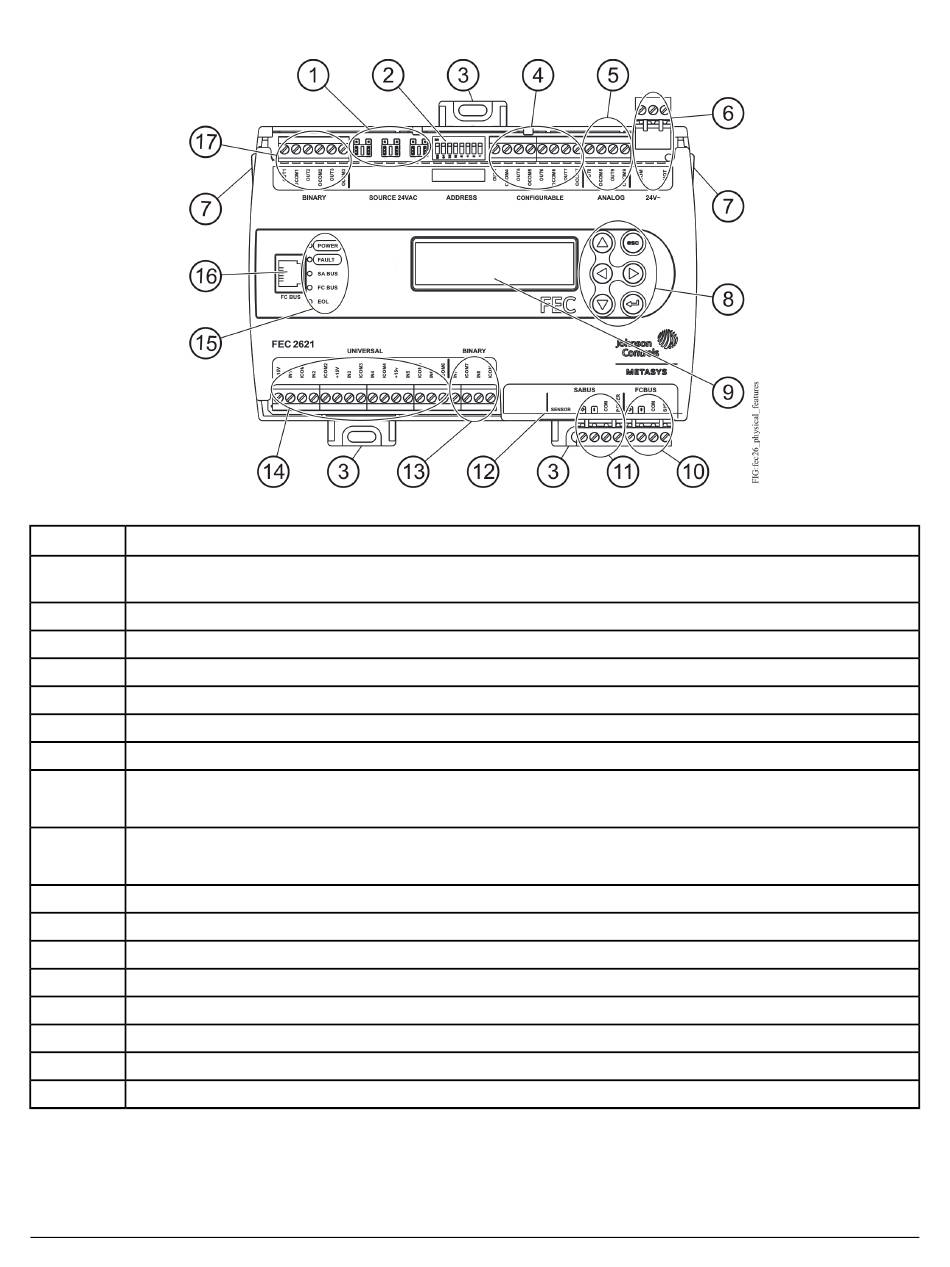

Figure 3: FEC2621 Physical Features
