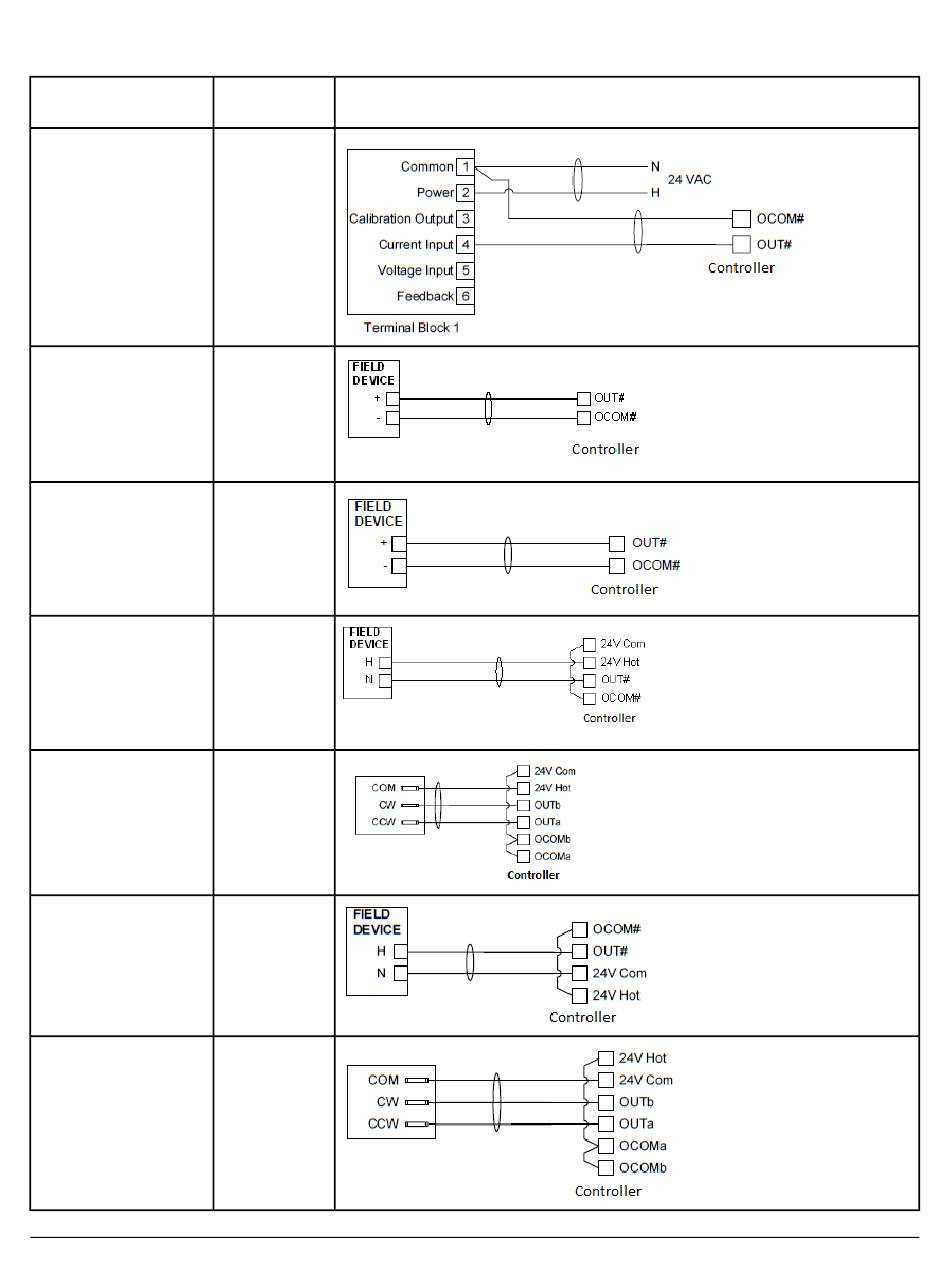

Table 2: Termination Details
Type of Field Device
4–20 mA Output to
Actuator
Voltage (Analog Output)
Analog Output (Current)
24 VAC Triac Output
(Switch Low, External
Source)
Incremental Control to
Actuator (Switch Low,
Externally Sourced)
24 VAC Binary Output
(Switch High, Externally
Sourced)
Incremental Control to
Actuator (Switch High,
Externally Sourced)
FEC26 Field Equipment Controllers Installation Instructions
Type of Termination Diagrams
Input/Output
CO or AO
AO
AO
CO or AO
CO or AO
CO or AO
CO or AO
