SMC Networks SMC8612XL3 F 1.0.1.3 Management Manual page 144

C
ONFIGURING THE
• Trunk Member
• Creation
via LACP.
1: Port Information only.
2: Trunk Information only

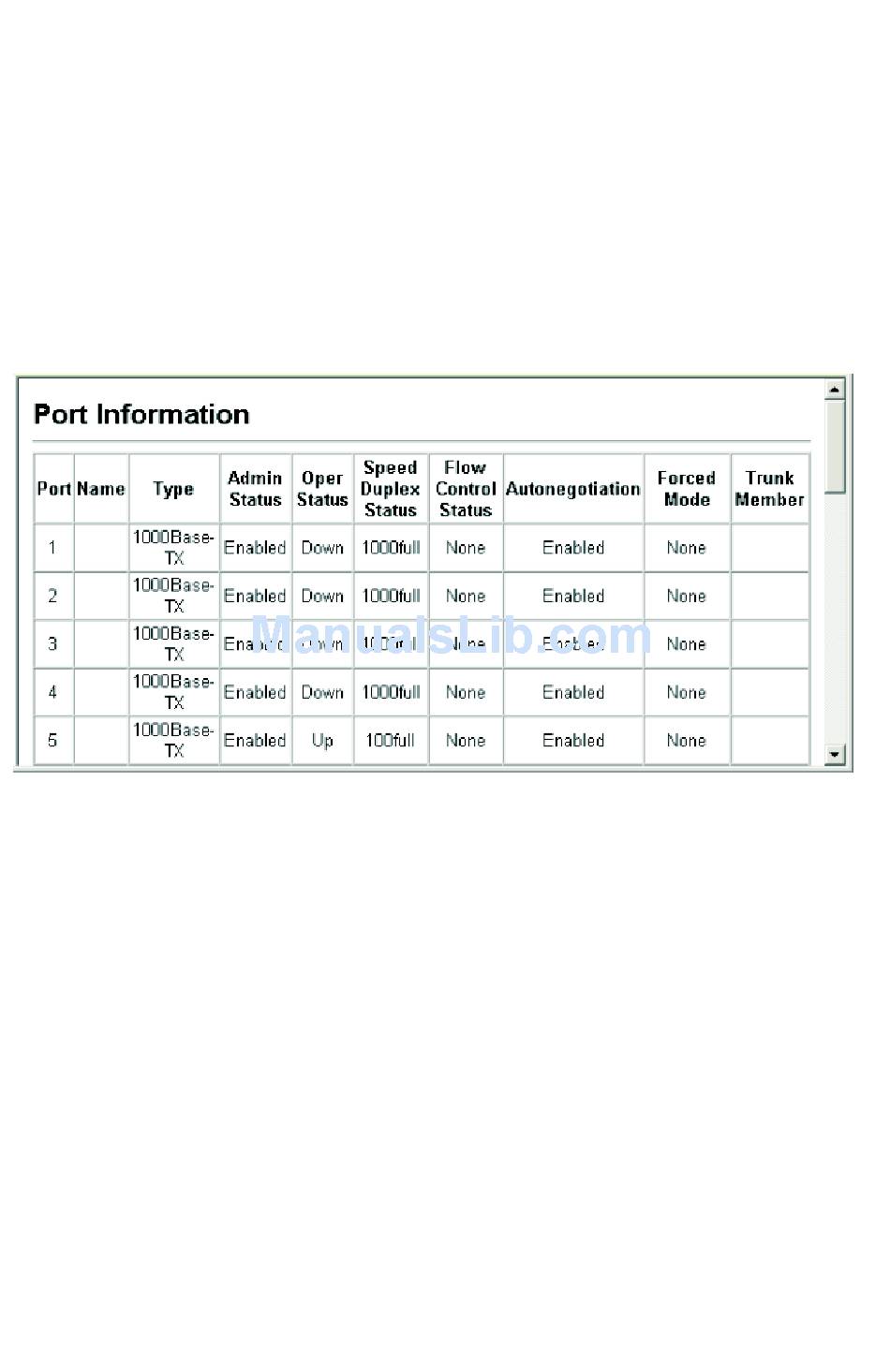

Web – Click Port, Port Information or Trunk Information.
Field Attributes (CLI)
Basic information:
• Port type – Indicates the port type. (1000BASE-T, 1000BASE-SX,
1000BASE-LX)
• MAC address – The physical layer address for this port. (To access
this item on the web, see "Setting the Switch's IP Address" on
page 3-20.)
Configuration:
• Name – Interface label.
• Port admin – Shows if the interface is enabled or disabled (i.e., up or
down).
• Speed-duplex – Shows the current speed and duplex mode. (Auto, or
fixed choice)
3-90
S
WITCH
1
– Shows if port is a trunk member.
2
– Shows if a trunk is manually configured or dynamically set
