Predator-Dualview Installation Manual V2.1.21.1
• Open the hinge taking care that the gasket is not damaged and support the weight of the Predator.
Gently open the HMA until the lanyard is able to take the weight. If the lanyard appears to support the
weight of the Predator, there is no need to continue to support the Predator. The connection circuit
board (PCB-000-0247-xx) can now be seen.
Please make sure there is adequate spare cable (20cm) for when the camera is resting on the lanyard, failure
to do this could damage the connector circuit board.
Note
Camera has two separate Ethernet connections and two separate IP
addresses. (Default is 192.168.1.187 and .188)

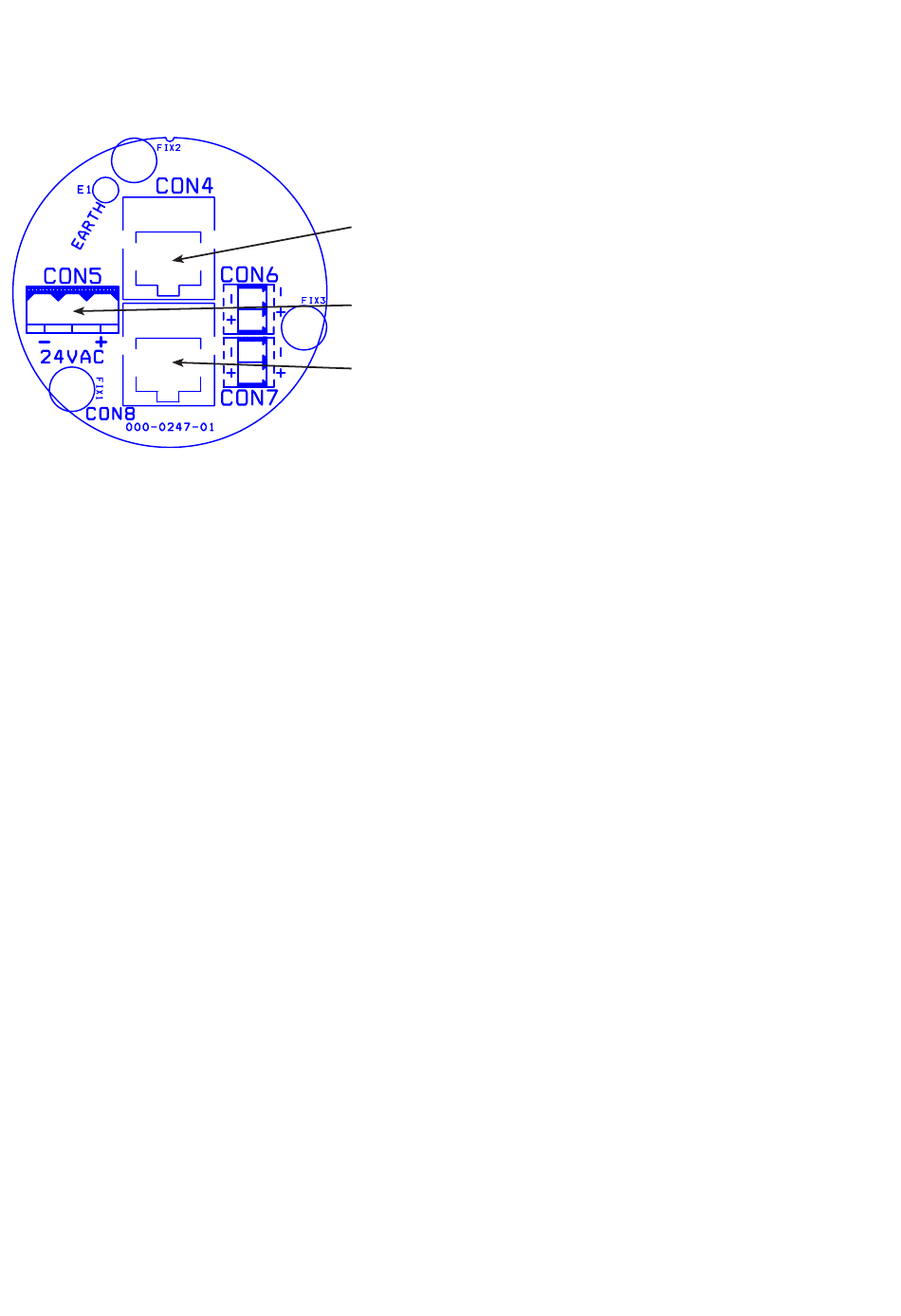

Ethernet Connection Predator (192.168.1.187)
Connect Ethernet cable to HMA Predator Dual View connection board
using a RJ45 connector (CON4).
Power Connections
Connect 24Vac/30Vdc to CON5.
Ethernet Connection Affiniti (192.168.1.188)
Connect Ethernet cable to HMA Predator Dual View connection board
using a RJ45 connector (CON8).
