Affiniti Thermal IP Install Manual V2.1.17.3

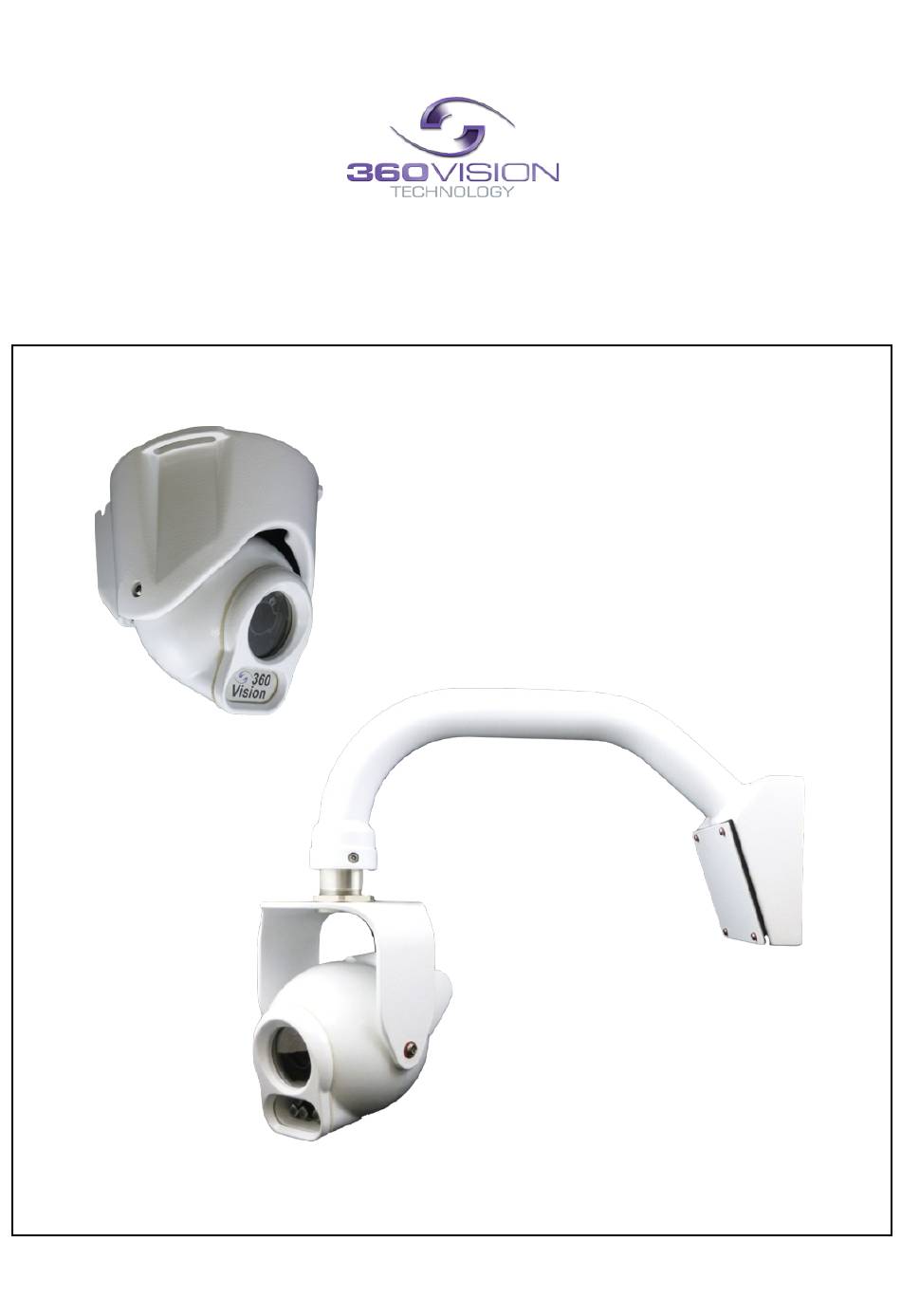

Page 1
Affiniti Thermal IP
Installation/Configuration Manual
© 360 Vision Technology Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Affiniti Thermal IP and is the answer not in the manual?

Questions and answers

Summary of Contents for 360 Vision Affiniti Thermal IP

  • Page 1 Affiniti Thermal IP Install Manual V2.1.17.3 Page 1 Affiniti Thermal IP Installation/Configuration Manual © 360 Vision Technology Ltd.
  • Page 2: Table Of Contents

    11 Stream Resolutions & RTSP Links ......................20 1 Safety and Precautions 1. Please read these notes before attempting to operate the 360 Vision Affiniti, and keep for future reference. 2. DO NOT disassemble or remove covers. This will break the water seals and invalidate the warranty.
  • Page 3: Dimensional Drawing

    Affiniti Thermal IP Install Manual V2.1.17.3 Page 3 2 Dimensional Drawing Pole Mount Soffit/Ceiling Mount Wall Mount © 360 Vision Technology Ltd.
  • Page 4 Affiniti Thermal IP Install Manual V2.1.17.3 Page 4 102.0 56.6 REF 5.5 (x4) ON 50.8 (2") PCD 32.0 5.5x9.5 SLOT (x4) ON 80 PCD SCALE 0.3 Wall Mount 300915 FIRST ISSUE ISS DATE REFERENCE SCALE: DESCRIPTION SHEET: MATERIAL: FINISH: NAME:...
  • Page 5: Connections

    Pin 6 Green Pin 7 White with Brown Band Pin 8 Brown Front View Top View The Affiniti Thermal IP is fitted with a 3 metre power cable, connect the camera to the PSU dome connections. © 360 Vision Technology Ltd.
  • Page 6 Affiniti Thermal IP Install Manual V2.1.17.3 Page 6 © 360 Vision Technology Ltd.
  • Page 7: Locating The Affiniti Thermal Ip On Your Network

    Using the DVR management software or ‘Onvif Device Manager’ (which can be found on the CD supplied or from the 360 Vision Technology ftp web site) to find the IP address of the Affiniti Thermal IP. Note the ports used...
  • Page 8: Live Video

    Affiniti Thermal IP Install Manual V2.1.17.3 Page 8 If you select the box ‘Remember Password’ it could compromise the security of the Affiniti Thermal IP camera. Select Submit There are four main tabs on the left of the web page/screen.
  • Page 9: Add/Edit Users

    The web page admin password is also the Onvif admin password. Care must be taken, when changing the admin password. There is no way of recovering the Affiniti Thermal IP admin password if forgotten. © 360 Vision Technology Ltd.
  • Page 10: Video

    • Detailed Info - This will show the information about the stream on the video. OK to program the new settings into the Affiniti Thermal IP. Cancel to abandon the changes to the video settings. Advanced to gain access to advanced stream settings.
  • Page 11: Advanced Video/Stream

    Packet Size 100 (default) (% of Frame Data Value) OK to program the new settings into the Affiniti Thermal IP. Cancel to abandon the changes to the advanced video settings. Back to return to the video settings. © 360 Vision Technology Ltd.
  • Page 12: Advanced Features

    Affiniti Thermal IP Install Manual V2.1.17.3 Page 12 5.5 Advanced Features The Advanced Features page, offers options to:- • Camera - Cannot be edited, shows label/name given to the camera. (See section Video - Camera - page 10). A ‘Preset’ is a stored view. When a preset is defined, it will store the pan, tilt, zoom, focus and iris positions. Use the up, down left and right buttons to move the camera to the desired position and then use the zoom buttons to set the image as required.
  • Page 13: Camera

    Factory reset - This will reboot the camera and all the settings, except IP address will be lost. Select option from the drop down box, and then click on perform reset. OK to program the new settings into the Affiniti Thermal IP. Cancel to abandon the changes to the advanced feature settings.
  • Page 14 Affiniti Thermal IP Install Manual V2.1.17.3 Page 14 • Sun Shield - Feature not available. • Auto Flip - Feature not available. • Zoom speed - Feature not available. • Attack Detect - Feature not available. • Proportional Zoom - Feature not available.
  • Page 15: Date/Time

    Refresh - Use this option to manually refresh the web page to show how much of the process has • been done, or if it is complete. OK to apply the new settings into the Affiniti Thermal IP. Cancel to abandon the changes to the date/time settings. © 360 Vision Technology Ltd.
  • Page 16: Network

    If the receivers of the video streams are suitable for using ‘multicast’ and the video streams will all have the same format, then it may be possible to use ‘multicast’. In this mode, the CODEC in the Affiniti Thermal IP chooses a ‘new UDP address’...
  • Page 17: Maintenance

    Save - Allows the current camera stream settings to be copied and then pasted as a text file. Clear - Selecting this option will default the Affiniti Thermal IP camera settings. Admin login details are required to perform this action.
  • Page 18: Network Settings Recovery

    Turn power to the Affiniti Thermal IP ON for approx. 1 minute. Repeat the above three times. On the final power ON, leave the power switched on for at least 5 minutes to allow the Affiniti Thermal IP to initialise.
  • Page 19: Important - Care Of Painted Surfaces

    When the Affiniti Thermal IP is installed in areas where there is a high risk of damage from birds or their droppings, additional precautions and measures should be used to keep the birds away from the Affiniti Thermal IP e.g.
  • Page 20: Stream Resolutions & Rtsp Links

    Affiniti Thermal IP Install Manual V2.1.17.3 Page 20 11 Stream Resolutions & RTSP Links Resolution MJPEG D1 (720 x 576) (rtsp://ipaddress/mjpeg) Resolution Resolution H.264 MPEG4 D1 (720 x 576) D1 (720 x 576) (rtsp://ipaddress/h264main) (rtsp://ipaddress/mpeg4main) Resolution H.264 MJPEG H.264 (rtsp://ipaddress/h264main) &...
