Multicast
If the receivers of the video streams are suitable for using 'multicast' and the video streams will all have the
same format, then it may be possible to use 'multicast'. In this mode, the CODEC in the Affiniti-HD chooses a
'new UDP address' (Typically an address which is outside the normal range of addresses for the network to
which the Affiniti-HD is connected) and sends a video stream to the 'new UDP address'. Multiple receivers can
then access this single video stream. Consequently the bandwidth that is required by the Affiniti-HD is typically
reduced to the single video stream.
When using 'multicast' all intermediate network-switches and routers must be set to allow the stream from the
'new UDP address' to be routed correctly.

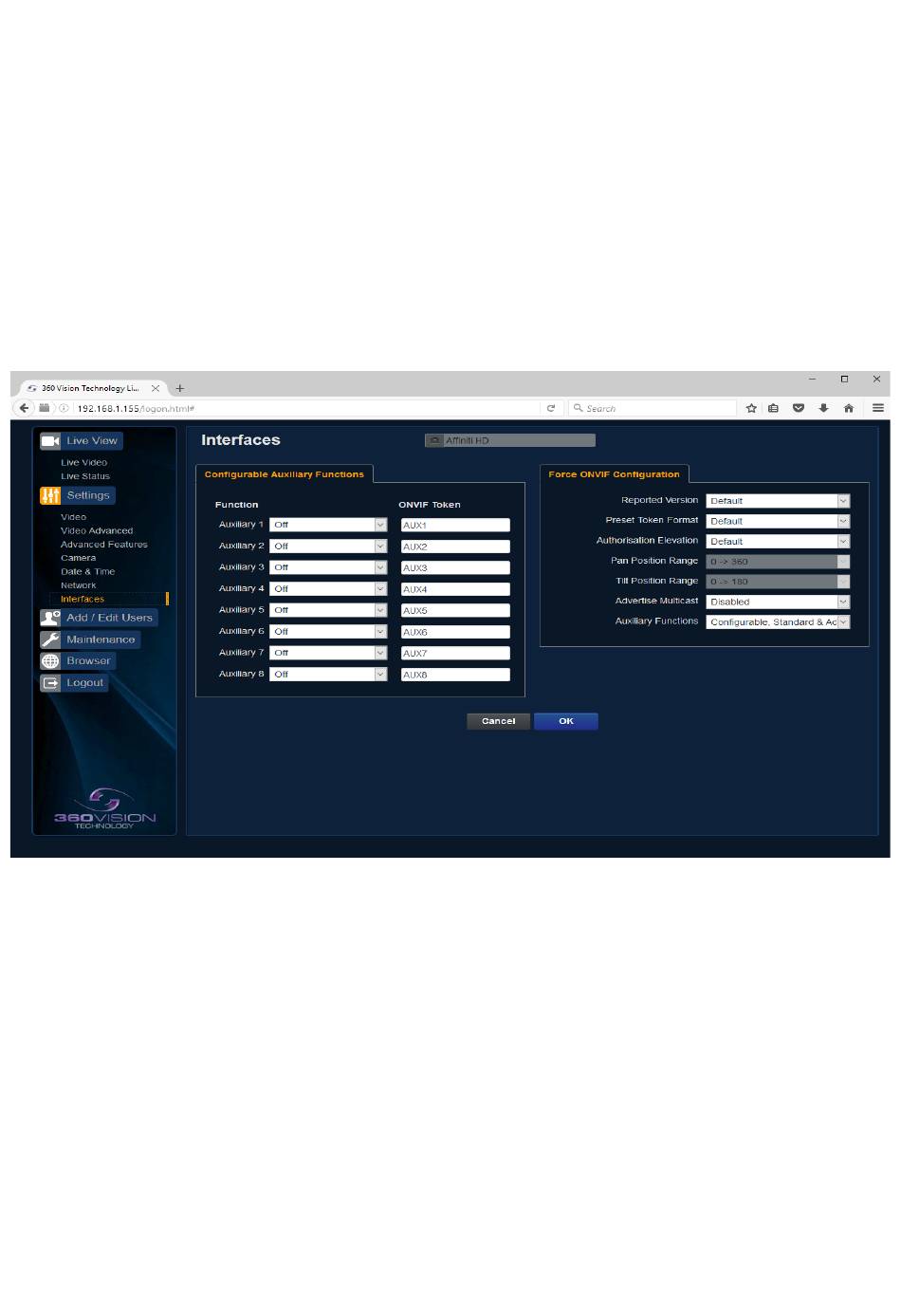

11.2.7 Interfaces

Auxiliary Functions
Allows the camera to be configured to use Onvif Auxiliary commands.
Features available are:-
• Force White Light On - Forces white lights on.
• Force White Light Off - Switches off forced white lights.
• Dark IR Light On - Switch on IR, when dark.
• Dark White Light On -Switch on white light, when dark.
• Dark Lights Off - When dark, switch off all lamps.
• Dark Sensor Mono - Sets the camera to a mono image, when dark.
• Dark Sensor Colour - Sets the camera to a colour image, when dark.
• Dark Focus White - Sets the camera focus (when in mono), to suit the scene when ambient light is
present.
• Dark Focus IR - Sets the camera focus (when in mono) to suit the scene when IR light is present.
• Disable Forced Settings - Switch off forced settings, camera to use settings as per light level.
Dark relates to when the camera is in dark mode, see section Camera - Night Changeover - page 45.
OK to apply the new settings into the Affiniti-HD.
Cancel to abandon the changes to the network settings.
