Predator-Dualview Installation Manual V2.1.21.1

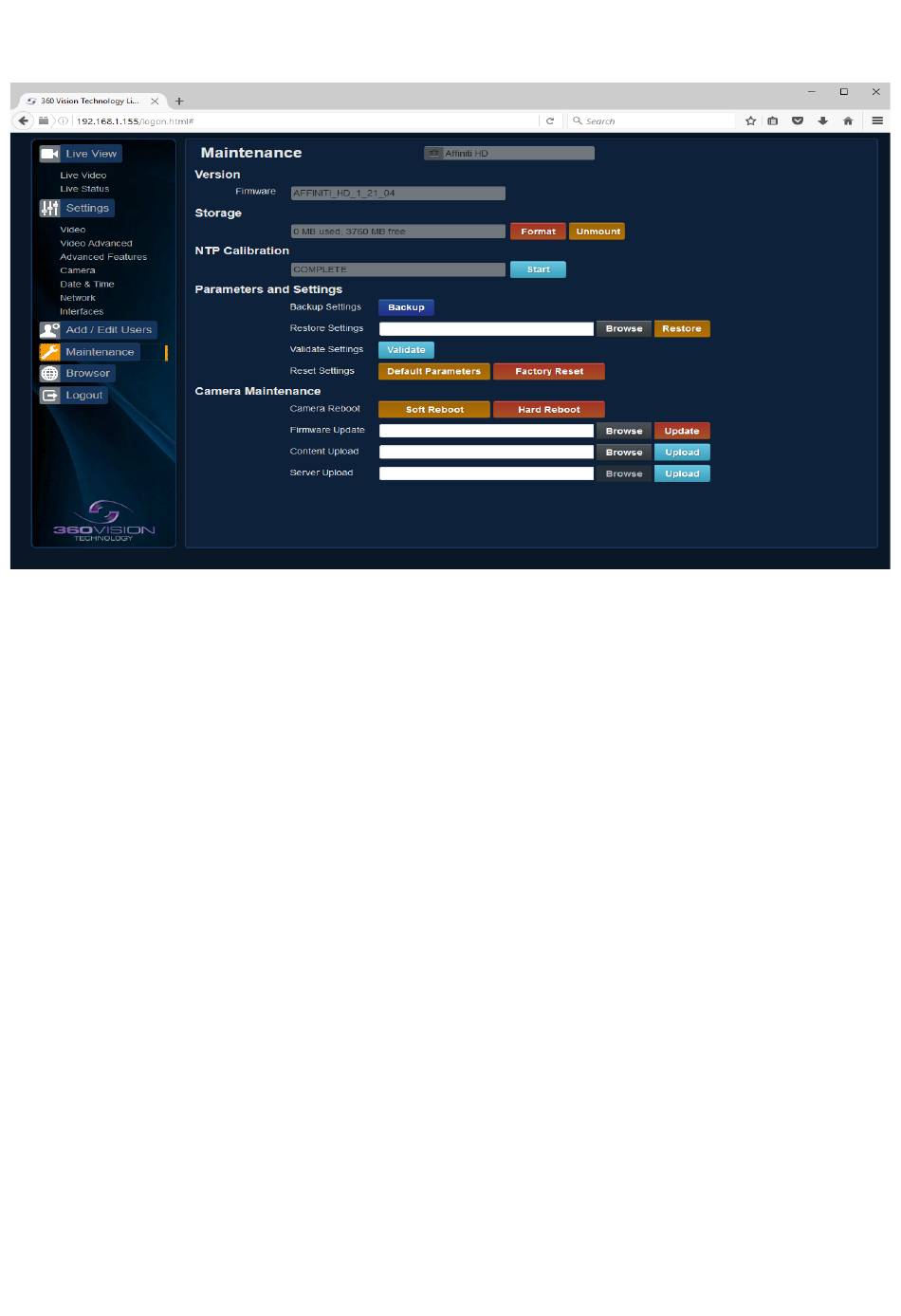

11.4 Maintenance

• Camera - Cannot be edited, shows label/name given to the camera.
(See Video - Camera - page 41).
Version
• Firmware - Current firmware loaded onto the camera.
Storage
• Used and free space on the memory device. Used for the firmware update process.
• Format - You can use this option to format the storage device. Please stay on the web page while it is
doing this. Once formatted the unmount button will show as mount. Use this to mount the device so
that it can be used by the camera.
• Unmount - Select this option to unmount the storage, once confirmed. The web page will report back
that the process is successful.
NTP Calibration
Used to calibrate the codec clock to a NTP server so that the codec time is more accurate.
Start - Click on this option to start the process. Synchronize with NTP Server option must be
•
selected with access to the NTP server. The process takes approx 20 minutes.
Parameters and Settings
• Backup Settings - Save - Used to save the camera settings.
The file is displayed as Affiniti_HD_YYYYMMDD_HHMM.DAT clicking on this file will download the
file to the PC download folder.
• Restore Settings - Browse to the required DAT file and then click restore. The camera will then apply
the settings and reboot the camera.
PLEASE note:- All saved camera settings including passwords will be uploaded to the camera.
• Validate Settings - Used to validate the uploaded settings, after the camera reboot process.
• Reset Settings
• Default Parameters - Reset codec parameters i.e. video stream settings.
• Factory reset - This will reboot the camera and all the settings, except IP address will be lost.
© 360 Vision Technology Ltd.
Page 51
