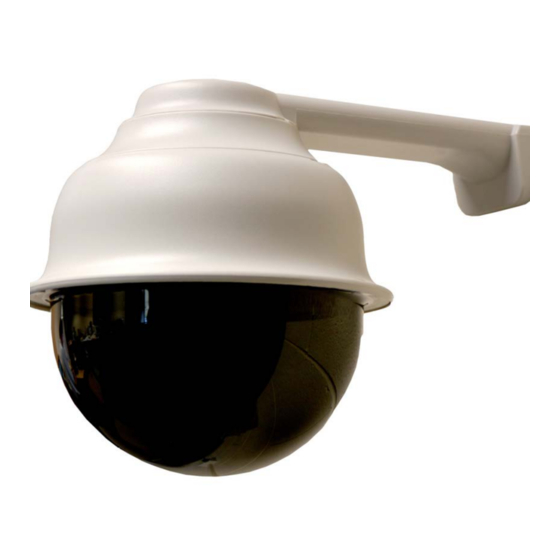

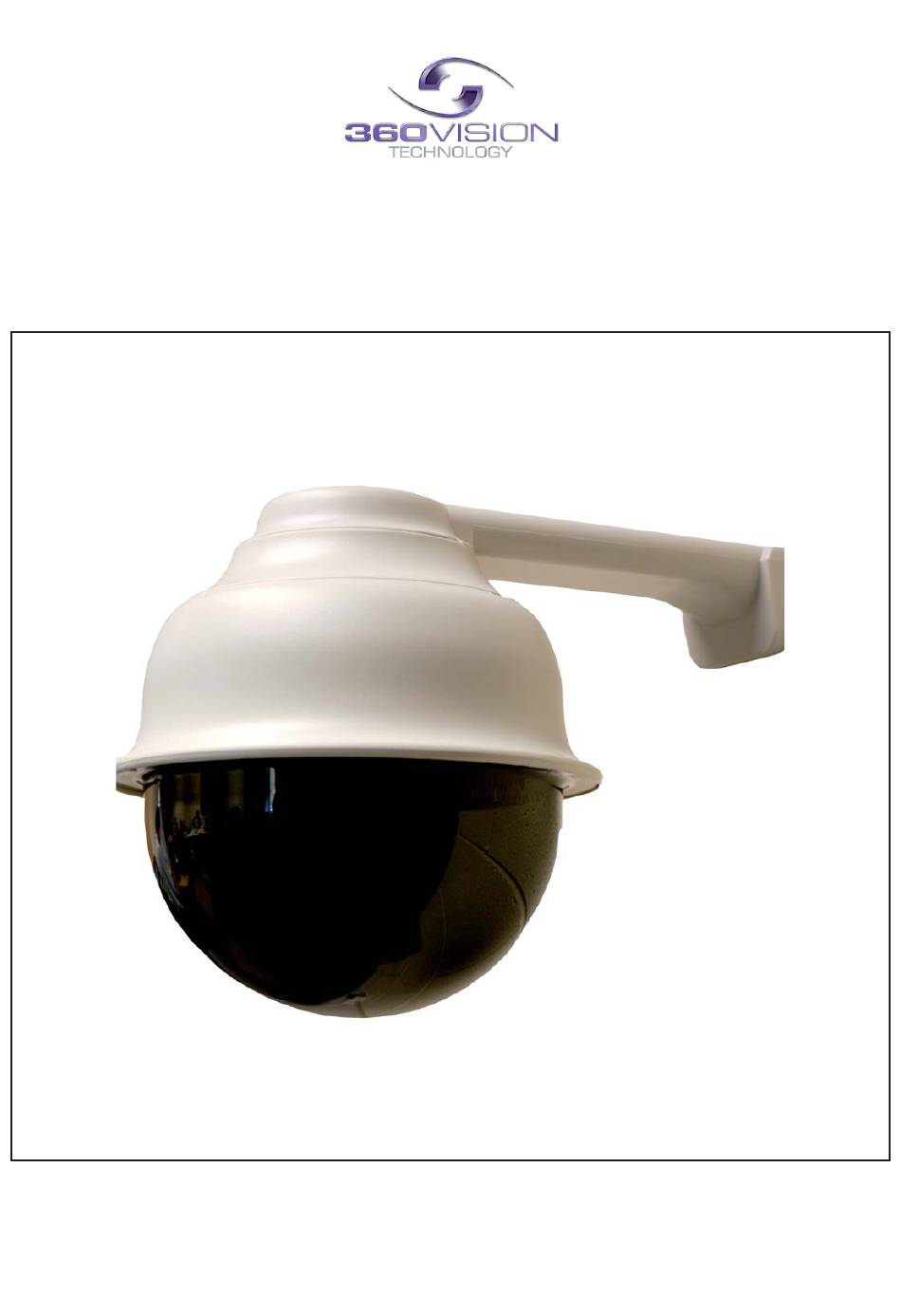

- Page 1 Visiondome HD Installation Manual V2.1.29 Page 1 Visiondome-HD Installation/Configuration Manual © 360 Vision Technology Ltd.
-
Page 2: Table Of Contents
2 Housing Dimensional Drawing ........................3 3 Bracket Dimensional Drawing ........................3 4 Connections ............................... 4 5 Locating the Visiondome-HD on your Network ..................5 6 Connecting to the Visiondome HD ......................5 6.1 Live View ............................7 6.1.1 Live Video ..........................7 6.1.2 Status ............................ -
Page 3: Safety And Precautions
Visiondome HD Installation Manual V2.1.29 Page 3 1 Safety and Precautions 1. Please read these notes before attempting to operate the 360 Vision VisionDome-HD, and keep for future reference. 2. All servicing and repairs must be handled by 360 Vision Technology. -
Page 4: Connections
Internal VisionDome-HD Connections Use a short bodied RJ45 connector with CAT5e cable for the connection to the VisionDome-HD PCB 000-0125- 01. Do not use RJ45 connectors with connector hoods or CAT6 cable, as these are too bulky to fit properly. -
Page 5: Locating The Visiondome-Hd On Your Network
9001 TCP 6 Connecting to the Visiondome HD Type in the IP address of the Visiondome-HD into the address bar of Internet browser and install the plug-ins as required. The web page of the camera will then appear. Visiondome-HD Web Page Login screen... - Page 6 Visiondome HD Installation Manual V2.1.29 Page 6 If you select the box ‘Remember Password’ it could compromise the security of the Visiondome-HD camera. Select Login The web page will show JPEG images every second (See Browser - page 25). © 360 Vision Technology Ltd.
-
Page 7: Live View
Preset Seek/Define - This will allow admin and operator user levels to seek or define presets (Viewer user level can only seek presets). (See Advanced Features - Presets - page 13) • List all Presets - Use to show all presets or programmed presets in drop down selection box. © 360 Vision Technology Ltd. -
Page 8: Status
Visiondome HD Installation Manual V2.1.29 Page 8 6.1.2 Status Status page shows information relating to the camera status. Status page, top section. Status page, bottom section. © 360 Vision Technology Ltd. - Page 9 Current Status - Shows the camera function information. • Frame Statistics - Gives information about the video stream, how big the frames are, how big the I frames are, how long it is taking to transmit the frames. © 360 Vision Technology Ltd.
-
Page 10: Settings
(See PTZ zones - page 18). • PTZ Status - Shows camera PTZ co-ordinates. • Camera Status - Shows the current state of the camera, what focus, iris and sensor mode the camera is in. © 360 Vision Technology Ltd. -
Page 11: Video Advanced
RTSP authentication - Adds password credentials to the RTSP stream. • • D1 16:9 aspect ratio - Set D1 aspect ratio to 16:9 OK to program the new settings into the Visiondome-HD. Cancel to abandon the changes to the video settings. 6.2.2 Video Advanced Multicast - (See Stream Tables - page 28). - Page 12 • Option allows the user to set the video streamer version. Options are original and 2016a. OK to program the new settings into the Visiondome-HD. Cancel to abandon the changes to the advanced video settings. Default is used to factory reset the video stream settings.
-
Page 13: Advanced Features
If this is set incorrectly the image may not be in focus, when in mono at night. • PTZ - Camera can be set to pan, tilt and zoom or not. This can be used to operate the sensor function. Note: This product does not have lamps fitted. © 360 Vision Technology Ltd. - Page 14 Tours A tour of presets is stored in the Visiondome-HD as a list of tour points. Each tour point consists of a preset number, the dwell time for which the Visiondome-HD will pause and the speed parameter that will be used to seek the preset.
-
Page 15: Camera
Use the pan preset offset to set the camera to 0°, this would be used to set the camera to North if using the pan compass option. Use the clear button to reset the pan or tilt offset settings. OK to program the new settings into the Visiondome-HD. Cancel to abandon the changes to the advanced feature settings. 6.2.4 Camera •... - Page 16 Auto Focus/Iris on PTZ - Auto focus/iris will activate when PTZ is used, can be switched off. Default is • Fast Shutter - Select fast shutter if using the Visiondome-HD camera on a ANPR system. Default is off. (See page 29 for table of options).
- Page 17 Auto Dimming - When selected the camera will reduce the lamp power, when looking in scenes where there is to much light. OK to program the new settings into the Visiondome-HD. Cancel to abandon the changes to the camera settings.
-
Page 18: Ptz Zones
• List all Presets - Use to show all presets or programmed presets in drop down selection box. OK to apply the new settings into the Visiondome-HD. Cancel to abandon the changes to the PTZ zones settings. © 360 Vision Technology Ltd. -
Page 19: Date/Time
• Time Zone Time Zone - Select time zone to suit the location of the camera. • OK to apply the new settings into the Visiondome-HD. Cancel to abandon the changes to the date/time settings. © 360 Vision Technology Ltd. -
Page 20: Network
(See Maintenance - SSL Key/Certificate - page 23) • HTTPS Port - Set required HTTPs port. Default is 443. • SSL Certificate - Choose required SSL certificate. • SSL Private Key - Choose required private key. © 360 Vision Technology Ltd. -
Page 21: Interfaces
Authentication - Tick to enable 802.1x. Options to choose MD5 or TLS and add username/password. SNMP • Enabled - Enables Simple Network Management Protocol. OK to apply the new settings into the Visiondome-HD. Cancel to abandon the changes to the network settings. 6.2.8 Interfaces Auxiliary Functions Allows the camera to be configured to use ONVIF Auxiliary commands. -
Page 22: Add/Edit Users
The web page admin password is also the ONVIF admin password. Care must be taken, when changing the admin password. There is no way of recovering the Visiondome-HD admin password if forgotten. © 360 Vision Technology Ltd. -
Page 23: Maintenance
Firmware Update - Browse to codec file and then click on update. The camera codec will then be updated. The Visiondome-HD camera will re-boot once the update has been performed. DO NOT interfere with this process as it may stop the camera from working. - Page 24 SSL Certificates and Keys • Upload SSL file - Import SSL file. Supported files .key, .pem and .crt. Update Screen OK to apply the new settings into the Visiondome-HD. Cancel to abandon the changes to the maintenance settings. © 360 Vision Technology Ltd.
-
Page 25: Browser
Network Latency - Adjust Video player latency/buffer. • Download - Download video plug-in from the camera. • OK to apply the new settings into the Visiondome-HD. Cancel to abandon the changes to the maintenance settings. © 360 Vision Technology Ltd. -
Page 26: Network Settings Recovery
Visiondome-HD from the network and control it locally using a network connection to a laptop so that the IP address can be set to a suitable setting before the Visiondome-HD is reconnected to the main network. -
Page 27: Important - Care Of Painted Surfaces
If damage occurs to the coating (e.g. the Visiondome-HD is dropped, scrapped etc.), repairs MUST be carried out immediately. When the Visiondome-HD is installed in areas where there is a high risk of damage from birds or their droppings, additional precautions and measures should be used to keep the birds away from the Visiondome- HD e.g. -
Page 28: 1080P Stream Resolutions & Rtsp Links
1080p (1920 x 1080) QVGA (432 x 240) 1080p (1920 x 1080) D1 (720 x 576) Resolution D1 (720 x 576) D1 (720 x 576) H.264(rtsp://ipaddress/h264main) & MPEG4(rtsp://ipaddress/mpeg4sub) 1080p (1920 x 1080) D1 (720 x 576) © 360 Vision Technology Ltd. -
Page 29: White Balance And Fast Shutter Options
Visiondome HD Installation Manual V2.1.29 Page 29 13 White Balance and Fast Shutter options White Balance Options Fast Shutter Options Auto 1/1000 Outdoor 1/1250 Indoor 1/1750 Auto Tracing 1/2500 Indoor A, B & C 1/6000 Sodium 1/10000 Sodium Auto A & B... - Page 30 Visiondome HD Installation Manual V2.1.29 Page 30 © 360 Vision Technology Ltd.
