Interfaces - 360 Vision Predator-Dualview Installation And Configuration Manual

Predator-Dualview Installation Manual V2.1.21.1
Multicast
If the receivers of the video streams are suitable for using 'multicast' and the video streams will all have the
same format, then it may be possible to use 'multicast'. In this mode, the CODEC in the Predator-DV chooses
a 'new UDP address' (Typically an address which is outside the normal range of addresses for the network to
which the Predator-DV is connected) and sends a video stream to the 'new UDP address'. Multiple receivers
can then access this single video stream. Consequently the bandwidth that is required by the Predator-DV is
typically reduced to the single video stream.
When using 'multicast' all intermediate network-switches and routers must be set to allow the stream from the
'new UDP address' to be routed correctly.
FTP (FTP server is used to transfer video recordings from the camera).
Only available on Multimedia Edge Recording Predator
• FTP Server - Input FTP server IP address, domain name.
• Port - Set port to be used for FTP access, default is 21.
• User Name - FTP server username.
• Password - FTP server password.
• File Upload Path - Set folder name for the file transfer on FTP server.

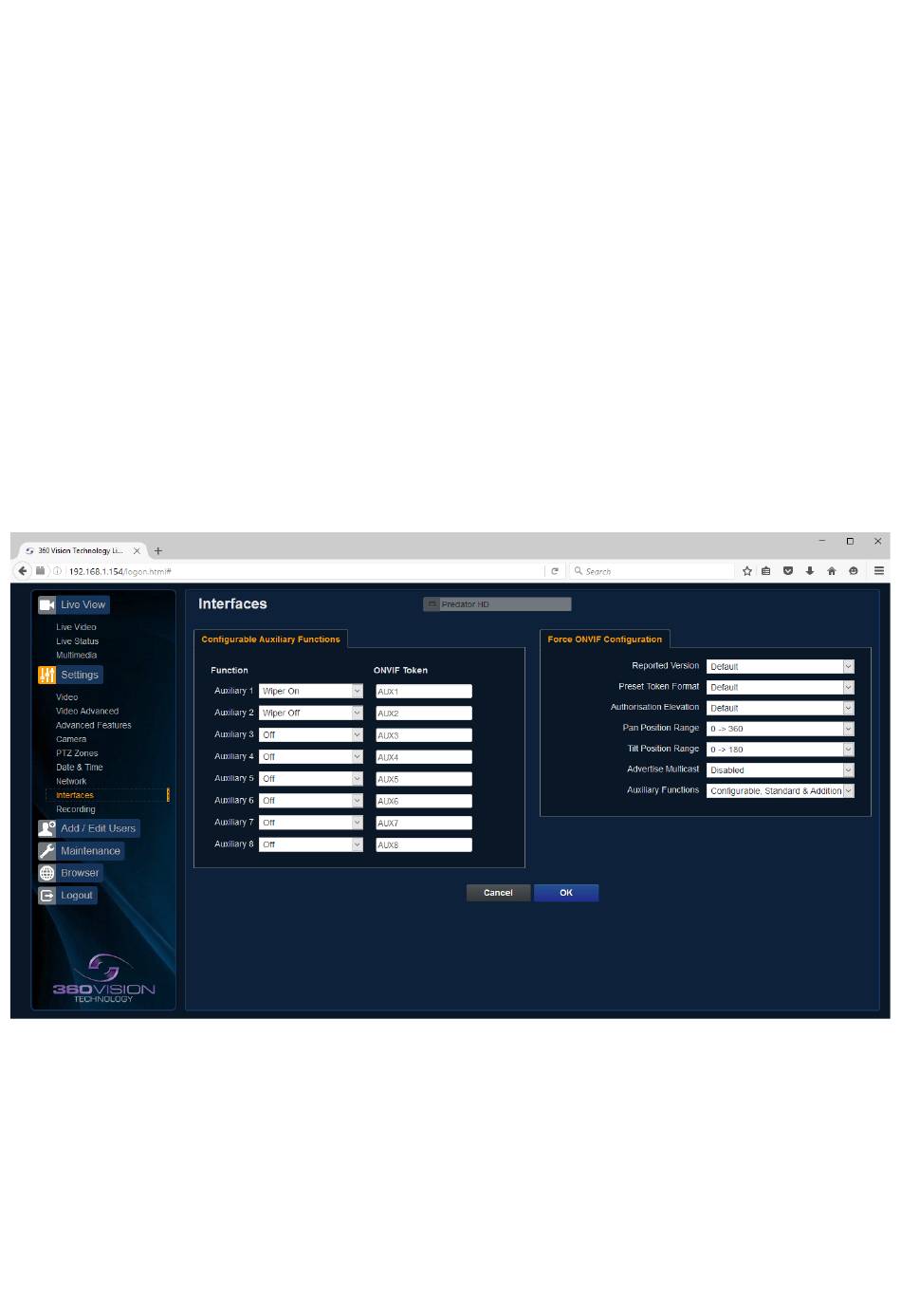

7.2.8 Interfaces

Auxiliary Functions
Allows the camera to be configured to use Onvif Auxiliary commands.
Features available are:-
• Force White Light On - Forces white lights on.
• Force White Light Off - Switches off forced white lights.
• Wiper On - Activates wiper.
• Wiper Off - Stops wiper.
• Dark IR Light On - Switch on IR, when dark.
• Dark White Light On -Switch on white light, when dark.
• Dark Lights Off - When dark, switch off all lamps.
• Dark Sensor Mono - Sets the camera to a mono image, when dark.
• Dark Sensor Colour - Sets the camera to a colour image, when dark.
OK to apply the new settings into the Predator.
Cancel to abandon the changes to the network settings.
