Predator Installation Manual V10_1_29_00

Page 1 of 56

Predator

Installation / Configuration

Manual

Table of Contents

Need help?

Do you have a question about the Predator Ultra and is the answer not in the manual?

Questions and answers

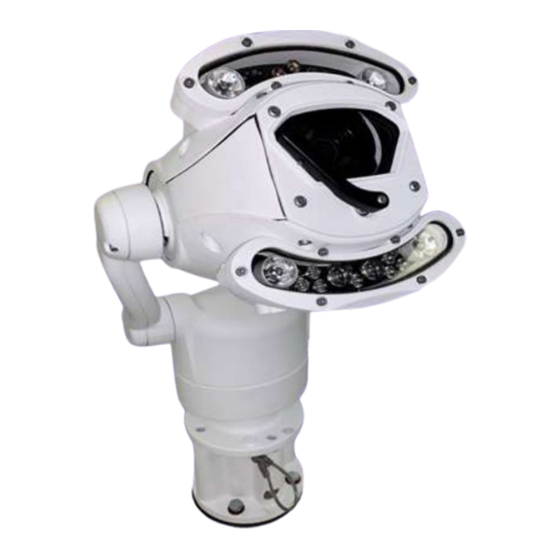

Summary of Contents for 360 Vision Predator Ultra

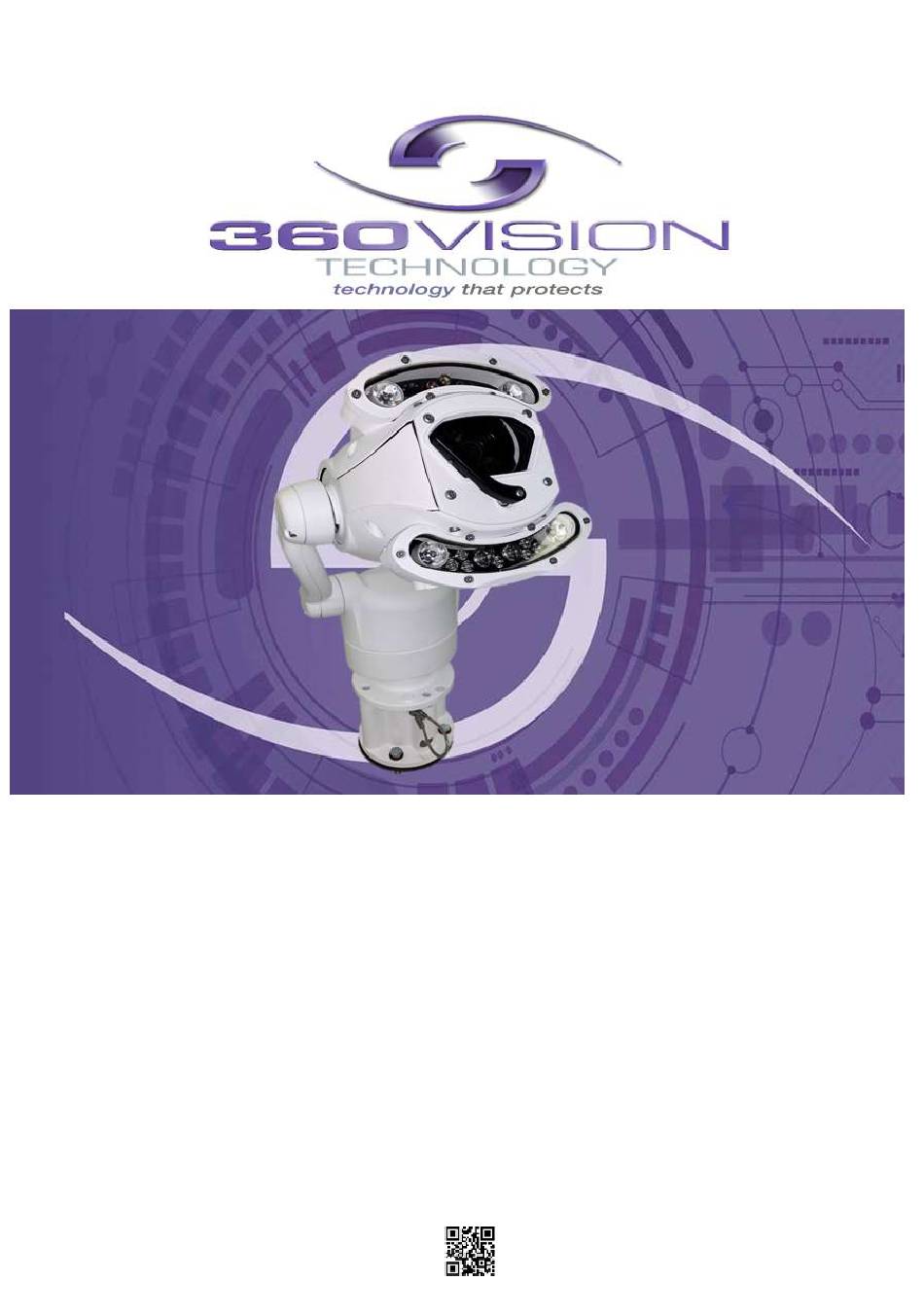

Page 1 Predator Installation Manual V10_1_29_00 Page 1 of 56 Predator Installation / Configuration Manual © 360 Vision Technology Ltd...
Page 2: Table Of Contents
29 Special Presets 30 Important – Care of Painted Surfaces 31Storage and Handling 32 Warranty 33 PSU Enclosure 34.1080p Stream Resolutions & RTSP Links 35 White Balance and Fast Shutter options 36 Recording 37 Recording Browser © 360 Vision Technology Ltd...
Page 3 Lighting options: SIR200, SIR275, SIR250WL, SIR400, SIR550S, 400SWL, SIR100W200N The lighting options listed above fulfil the requirements for photo-biological safety according to IEC/EN 62471 (risk group2). Avoid prolonged eye exposure, do not stare at operating lamp. © 360 Vision Technology Ltd...
Page 4: Safety And Precautions
7. To prevent risk of injury caused by the Predator hybrid or mounting options becoming detached, fit a suitable safety chain or lanyard. 8. Use only 360 Vision Predator Hybrid power supplies. These have suitable terminals for all the wires in the lnvictus composite cable.
Page 5: Brackets &Housing Dimensional Drawing
Predator Installation Manual V10_1_29_00 Page 5 of 56 © 360 Vision Technology Ltd...
Page 7 Predator Installation Manual V10_1_29_00 Page 7 of 56 Dual View Dimentions & Predator Thermal (up to 35mm lens) with LED array and built in thermal encoder © 360 Vision Technology Ltd...
Page 9 Predator Installation Manual V10_1_29_00 Page 9 of 56 2 Brackets & Dimensional Drawings PMA Bracket © 360 Vision Technology Ltd...
Page 10 Predator Installation Manual V10_1_29_00 Page 10 of 56 Wall Bracket Corner Bracket PMB Bracket © 360 Vision Technology Ltd...
Page 11: Connections
SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN RELIEVED. FUSE PROTECTION: Mains input fuse 2AF. 360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000. www.360visiontechnology.com © 360 Vision Technology Ltd...
Page 12 Predator Installation Manual V10_1_29_00 Page 12 of 56 Predator Installation Manual V10_1_29_00 Page 12 of 54 SEE BELOW PRED-HYB-PSU-SM © 360 Vision Technology Ltd © 360 Vision Technology Ltd...
Page 13 SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN RELIEVED. FUSE PROTECTION: Mains input fuse 2AF. 360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000. www.360visiontechnology.com © 360 Vision Technology Ltd...
Page 14: Standalone Alarmcard Setup
Connect RS485 to camera to CON5 Protocol/Alarm settings Relay Output Use CON4 to set protocol and camera Use CON3 for relay output. alarm behavior (see page 16) Alann Inputs Use CON 1 for volt free alarm inputs © 360 Vision Technology Ltd...
Page 15 Predator Installation Manual V10_1_29_00 Page 15 of 56 Address 1 to 128 range Normally Open Contacts Normally Closed Contacts (Un-used inputs must be connected to common) RS485 Address Settings © 360 Vision Technology Ltd...
Page 17 SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN RELIEVED. FUSE PROTECTION: Mains input fuse 2AF. 360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000. www.360visiontechnology.com © 360 Vision Technology Ltd...
Page 18: Predator Washer/Nozzle Bracket
Take care that the cable ties do not cause excessive restriction of the tube. Water Jet direction (vertical) Adjustable Nozzle Tube Nozzle Bracket located Fit M8 Plain Washer Between Nozzle Bracket and Predator Mounting Base. © 360 Vision Technology Ltd...
Page 19: Connections To Predator With Hma
Connection between the power supply and the Predator use conventional cables as detailed below. 36Vdc Power connections between Predator PSU and Predator that is fitted with HMA. Camera current draw table. © 360 Vision Technology Ltd...
Page 20 SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN RELIEVED. FUSE PROTECTION: Mains input fuse 2AF. 360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000. www.360visiontechnology.com © 360 Vision Technology Ltd...
Page 21 Connect Ethernet cable to HD HMA Predator connection board using a RJ45 connector (CON4) Please make sure there is adequate spare cable (20cm) for when the camera is resting on the lanyard, failure to do this could damage the connector circuit board. © 360 Vision Technology Ltd...
Page 22 Predator Installation Manual V10_1_29_00 Page 22 of 56 Predator Analogue Installation Configuration sectio n © 360 Vision Technology Ltd...
Page 23: Basic Twisted Pair/Rs485 Data Wiring
RS485 twisted pair cable is wired to each camera in a "star" from one point. A suitable RS485 star driver/ data distribution product must be used. All cameras in this wiring configuration must have the RS485 (end of line) termination on. © 360 Vision Technology Ltd...
Page 24: Predator Osd
(On screen display) is accessed by defining / programming preset 6 & 95. • Use the joystick up, down, left, right, to navigate the menu. • Use the joystick zoom in to highlight / select an option. • Use joystick lef t and right to increment/decrement numbers © 360 Vision Technology Ltd...
Page 25: Pin Number
Predator Installation Manual V10_1_29_00 Page 25 of 56 Engineer Level 10 Pin Numbers Operators: 360 or 426 or 180 Controllers: 1379 or 9731 Engineers: 5498 © 360 Vision Technology Ltd...
Page 26: Osd Operation / Navigation
The camera will perform an ACTION (Go to preset, start preset or mimic tour), after a period of inactivity. Use the NUMBER option to set which preset or tour to start, and the DELAY MINUTES/SECONDS to input the inactivity time period. © 360 Vision Technology Ltd...
Page 27 • Pelco Static Mode -Disables PTZ control • FV White Lights - Used when using Forward Vision protocol, can be used to select what lamps are controlled from the lamp command © 360 Vision Technology Ltd...
Page 29 • White When Alarm - Set if white lights are to be used if an alarm is triggered. This feature works with 360 Standalone alarm card or 360 Vision Matrix only. • White Timeout - Use if a white light time is required. Default is on.
Page 30 80 % lamp intensity • 100% lamp intensity • video switch • white day • ir-mono • mono • normal night • washer on • washer off • low power on • low power off • © 360 Vision Technology Ltd...
Page 31 Predator Installation Manual V10_1_29_00 Page 31 of 56 Predator HD Installation & Configuration © 360 Vision Technology Ltd...
Page 32: Locating The Predator On Your Network
Predator Installation Manual V10_1_29_00 Page 32 of 56 12 Locating the predator on your network. Dual View camera: 192.168.1.188 192.168.1.187 255.255.255.0 255.255.255.0 13 Connecting to the predator Hybrid. © 360 Vision Technology Ltd...
Page 34: Live View
Preset Seek/Define - This will allow admin and operator user levels to seek or define presets (Viewer user level can only seek presets). ( See Advanced Features - Presets - page 39) • List all presets - Use to show all presets o programmed presets in drop down selection box. © 360 Vision Technology Ltd...
Page 36: Settings
• Text - Selecting this option will show the selected text on the video stream. Position available are top left or right of the image. • Detailed info - This will show the information about the stream on the video © 360 Vision Technology Ltd...
Page 37: Video Advanced
Concurrent Uni/Multicast - Enable to allow concurrent unicast / multicast streams. RTSP protocols allow 'multicast' or 'unicast' transmission. In addition to the multi cast feature being available on the Predator, the 'multicast' feature must also be available on the receiving device. © 360 Vision Technology Ltd...
Page 39: Advanced Features
PTZ -The camera can be set to pan, tilt and zoom or not. This can be used to operate the sensor or lamp function. Use the Seek preset button to test the preset. Define preset button to set the above parameters. Delete preset to remove the preset © 360 Vision Technology Ltd...
Page 40 Home action -This sends the camera to a preset, tour. or. mimic . • Home Number.-This sets the preset, tour.or.mimic the camera will go to start . Home timer.-this sets the time for.the period of inactivity. © 360 Vision Technology Ltd...
Page 41: Camera
Predator Installation Manual V10_1_29_00 Page 41 of 56 21 Camera (See section Video - Camera page 36) (See page 53 for table of options) (See page 53 for table of options) © 360 Vision Technology Ltd...
Page 42 Night HLC Level- Set a value to help mask high intensity light sources, options are low , medium and high. Night HLC Mask - Sets a mask for the light source, options are 1 (white) to 15 (grey). © 360 Vision Technology Ltd...
Page 43: Date/Time
Time in Camera - Cannot be edited, shows the current date and time of the camera . • Date Format - Select from the drop down the date format. • Time Format- Choose 24hr or 12hr time display . © 360 Vision Technology Ltd...
Page 44: Network
Default Recovery - Inhibit Multiple Power Cycle Method, disables the Network recovery process (See Network Settings Recovery - page 50 ) NTP Server - Input the address of the time server required, default is pool.ntp.org. © 360 Vision Technology Ltd...
Page 45: Interfaces
Predator Installation Manual V10_1_29_00 Page 45 of 56 (See section Video - Camera page 44) 24 Interfaces © 360 Vision Technology Ltd...
Page 46 Fixed Preset Location - The per-programed presets are moved to lower preset numbers for ease of use for VMS and DVR/NVR that can not use higher numbers for controls such as Wiper and white lights. OK to apply the new settings into the Predator. Cancel to abandon the changes to the settings. © 360 Vision Technology Ltd...
Page 47: Add/Edit Users
The web page admin password is also the ONVIF admin password. Care must be taken, when changing the admin password. There is no way of recovering the Predator Hybrid admin password if forgotten. © 360 Vision Technology Ltd...
Page 48: Maintenance
DO NOT interfere with this process as it may stop the camera fr o m working. Visit the camera Browser page (Framework), 360 Vision Technology web site or contact 360 Vision Technical Support for the link to the update application & codec update files.
Page 49 Upload SSL file - Import SSL file. Supported files .key, .pem and .crt. OK to apply the new settings into the Predator. Cancel to abandon the changes to the maintenance settings. © 360 Vision Technology Ltd © 360 Vision Technology Ltd...
Page 50: Browser
On the final power ON, leave the power switched on for at least 5 minutes to allow the Predator to (See section Locating the Predator on your Network- page 44) Initialize . If using a Dual View please be advised both cameras will be reset to default IP 192.168.1.187 © 360 Vision Technology Ltd...
Page 51: Special Presets
When the Predator is installed in areas where there is a high risk of damage from birds or their droppings, additional precautions and measures should be used to keep the birds away from the Predator e.g. fit anti bird spikes. © 360 Vision Technology Ltd...
Page 52: 31Storage And Handling
720p (1280 X 720) D1 (720 576) D 1 (720 576) H.264 MPEG4 (rtsp:llipaddresslh264main) (rtsp:llipadclress/mpeg4main) SXVGA ( 1280 x 960) SXVGA (1280 x 960) 1080p (1920 1080) 1080p (1920 X 1080) Resolution MJPEG 1080p (1920 X 1080) (rtsp:llipadclresshnjpeg} © 360 Vision Technology Ltd...
Page 53: White Balance And Fast Shutter Options
Predator Installation Manual V10_1_29_00 Page 53 of 56 35 White Balance and fast Shutter options © 360 Vision Technology Ltd...
Page 54: Recording
At preset – Start recording when the camera gets to a specific preset, tour or mimic.  Attack Detect – Start recording if the camera is attacked  Schedule Edit – Setup a recording schedule (See below)  Lifetime – Recording schedule will stop after this period. © 360 Vision Technology Ltd...
Page 55: Recording Browser
Once your options have been selected in the filter click on Update and the display will show the results based on the files currently on the cameras internal storage device which comply with the filter settings. © 360 Vision Technology Ltd...
