7.2.5 PTZ Zones

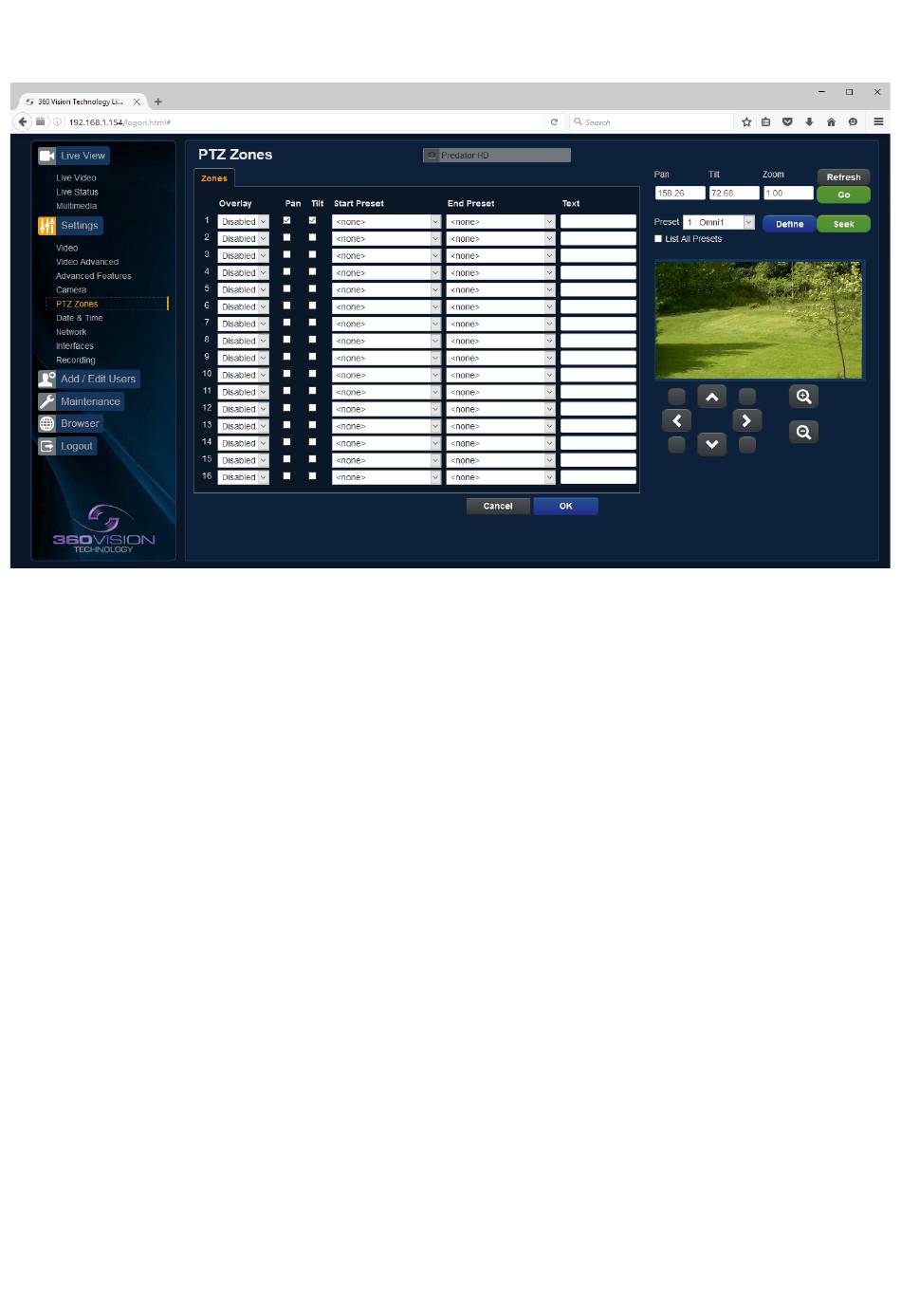

The PTZ zones page, offers options to:-
• Camera - Cannot be edited, shows label/name given to the camera.
(See Video - Camera - page 17).
Set Text Overlays using the below options
• 1-16 - Set up to 16 text overlays.
• Pan - Used to set pan axis as the trigger for the text overlay to be displayed.
• Tilt - Used to set the tilt axis as the trigger for the text overlay to be displayed.
• Start Preset - Set start preset for text overlay.
• End Preset - Set end preset for text overlay
• Text - Input required text for sector zone overlay.
PTZ buttons can be used to move the camera so that simple preset positions can be programmed or recalled.
PTZ position co-ordinates are also shown, use the refresh button to refresh the data if the camera has been
moved.
PTZ position co-ordinates can also be added manually, use the go button to send the camera to the coordinates
set.
Use the pan preset offset to set the camera to 0°, this would be used to set the camera to North if using the pan
compass option.
Use the clear button to reset the pan or tilt offset settings.
• Preset Seek/Define - This will allow admin and operator user levels to seek or define presets (Viewer
user level can only seek presets).
• List all Presets - Use to show all presets or programmed presets in drop down selection box.
(See Video - page 17).
OK to apply the new settings into the Predator.
Cancel to abandon the changes to the PTZ zones settings.
(see also Video - page
(See Advanced Features - Presets - page 19)
