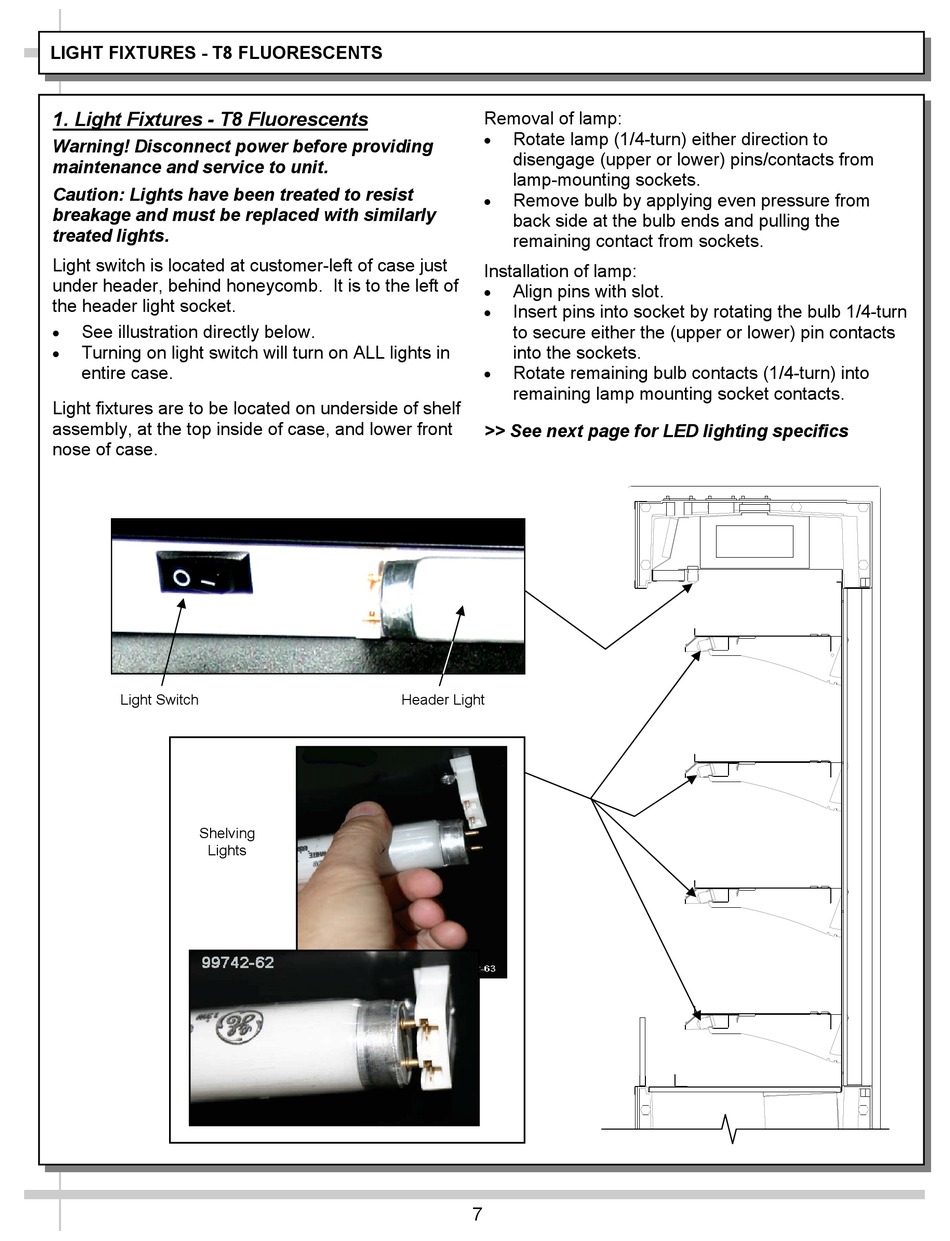

LIGHT FIXTURES - T8 FLUORESCENTS

1. Light Fixtures - T8 Fluorescents
Warning! Disconnect power before providing
maintenance and service to unit.
Caution: Lights have been treated to resist
breakage and must be replaced with similarly
treated lights.
Light switch is located at customer-left of case just
under header, behind honeycomb. It is to the left of
the header light socket.
 See illustration directly below.
 Turning on light switch will turn on ALL lights in
entire case.
Light fixtures are to be located on underside of shelf
assembly, at the top inside of case, and lower front
nose of case.
Light Switch
Shelving
Lights
Removal of lamp:
 Rotate lamp (1/4-turn) either direction to
disengage (upper or lower) pins/contacts from
lamp-mounting sockets.
 Remove bulb by applying even pressure from
back side at the bulb ends and pulling the
remaining contact from sockets.
Installation of lamp:
 Align pins with slot.

Insert pins into socket by rotating the bulb 1/4-turn
to secure either the (upper or lower) pin contacts
into the sockets.
 Rotate remaining bulb contacts (1/4-turn) into
remaining lamp mounting socket contacts.
>> See next page for LED lighting specifics
Header Light
