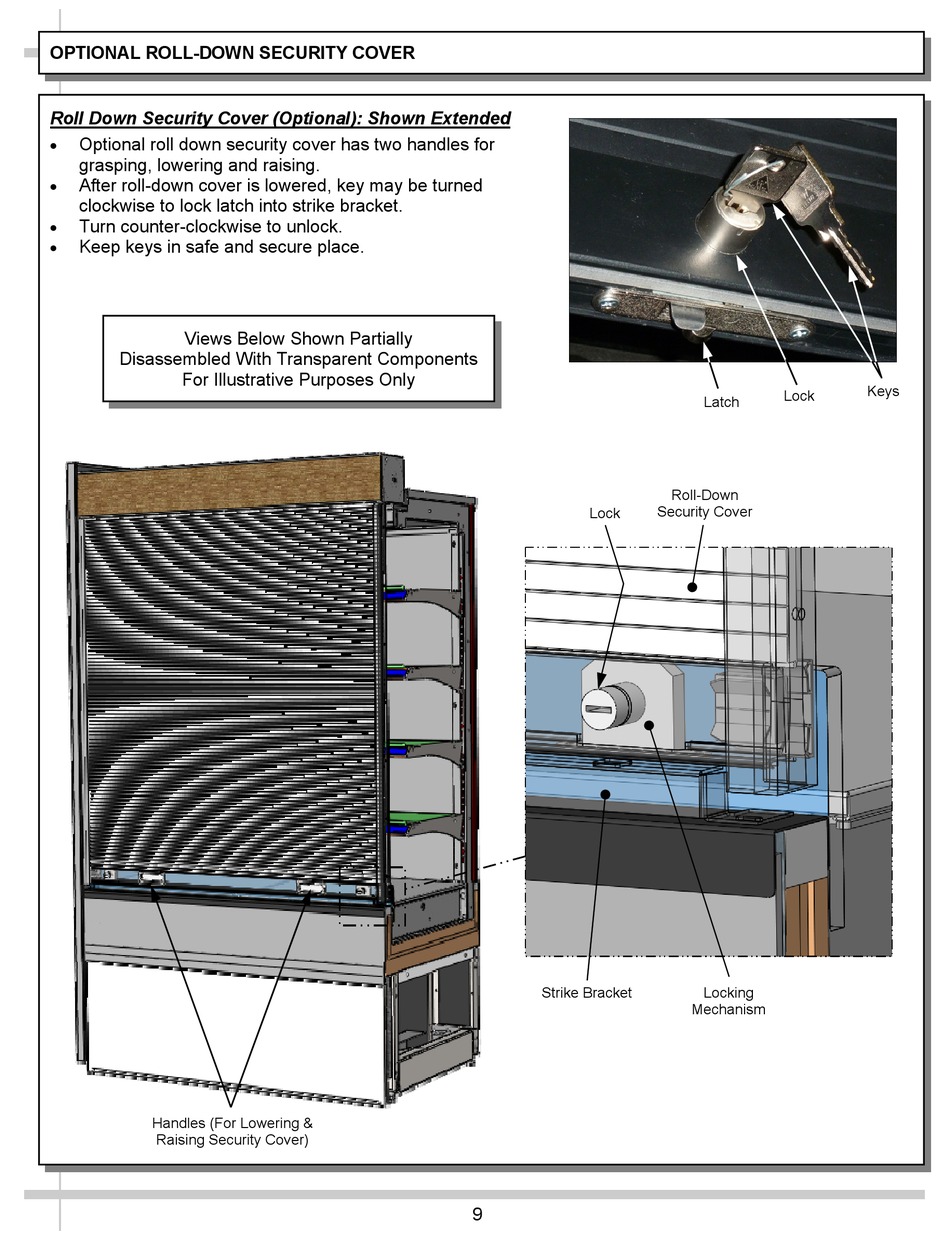

OPTIONAL ROLL-DOWN SECURITY COVER
Roll Down Security Cover (Optional): Shown Extended
Optional roll down security cover has two handles for
grasping, lowering and raising.
After roll-down cover is lowered, key may be turned
clockwise to lock latch into strike bracket.
Turn counter-clockwise to unlock.
Keep keys in safe and secure place.
Views Below Shown Partially
Disassembled With Transparent Components
For Illustrative Purposes Only
Handles (For Lowering &
Raising Security Cover)
Lock
Strike Bracket
9
Lock
Latch
Roll-Down
Security Cover
Locking
Mechanism
Keys
