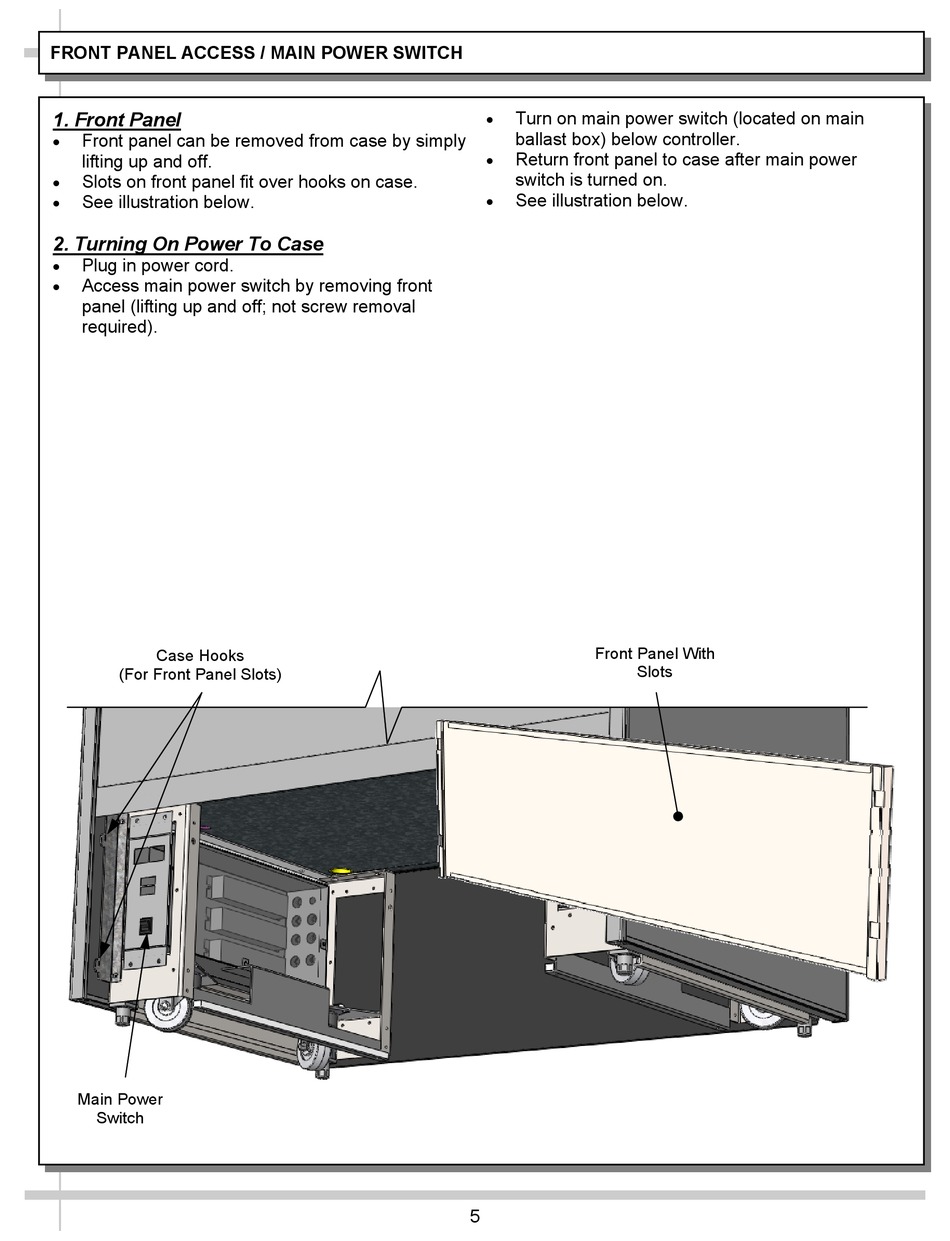

FRONT PANEL ACCESS / MAIN POWER SWITCH
1. Front Panel
Front panel can be removed from case by simply
lifting up and off.
Slots on front panel fit over hooks on case.
See illustration below.
2. Turning On Power To Case
Plug in power cord.
Access main power switch by removing front
panel (lifting up and off; not screw removal
required).
Case Hooks
(For Front Panel Slots)
Main Power
Switch
Turn on main power switch (located on main
ballast box) below controller.
Return front panel to case after main power
switch is turned on.
See illustration below.
Front Panel With
Slots
5
