A–6

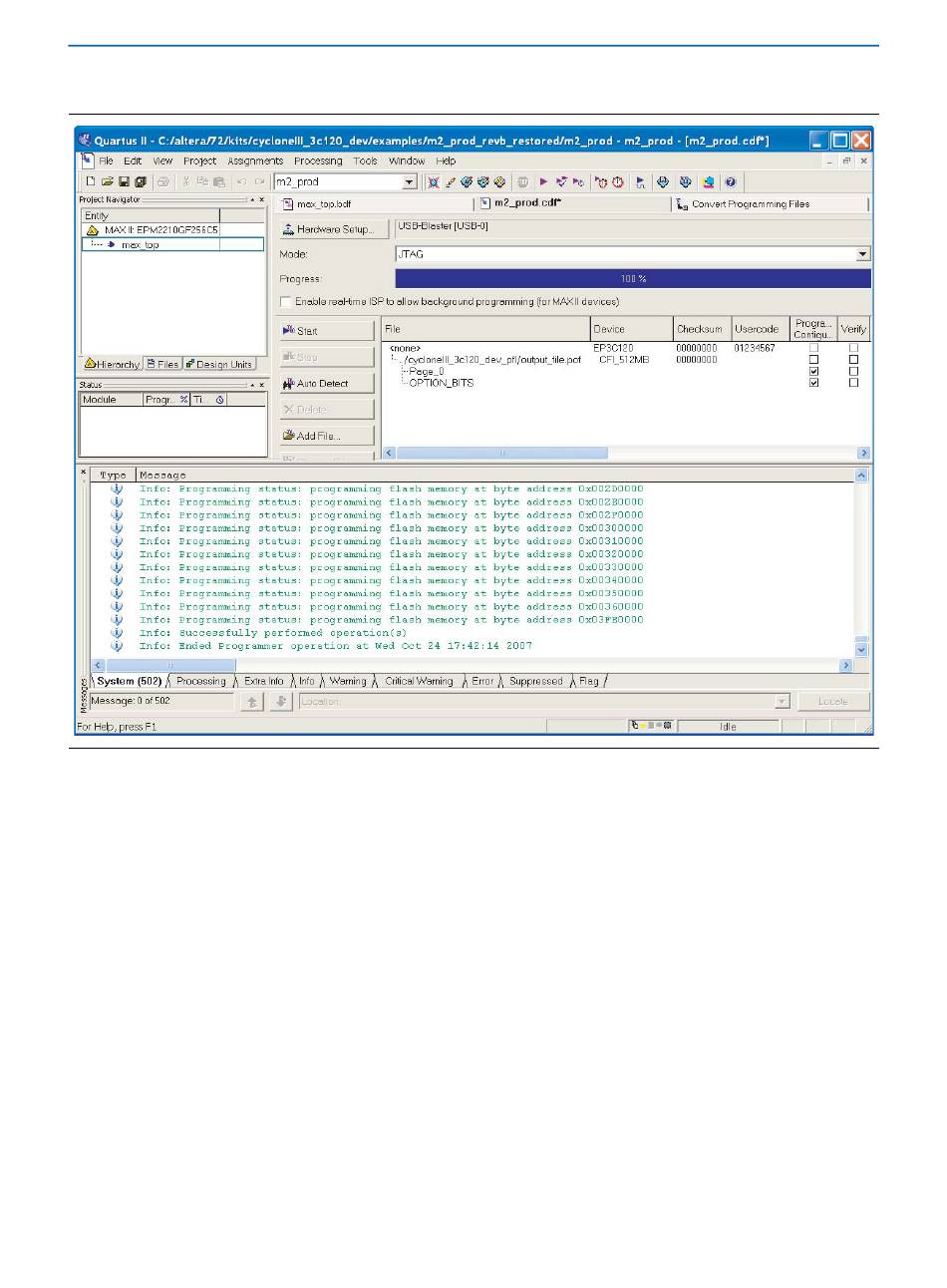

Figure A–3. Program/Configure Options
12. Click Start. The message window details the flash writing progress to successful
You have now successfully programmed the flash device with a configuration for
your board. To configure the board from the flash device, power cycle the board as
described in
Powering on the board causes the flash device to load a new configuration into the
FPGA device. The Configuration Done LED lights up and the hardware functions
associated with the design take effect.

Restoring the Factory Design to the Flash Device

To restore the development board to factory conditions, repeat the steps for writing a
new POF to the flash device as described in
page
Cyclone III Development Kit User Guide
completion. Flash writing to one page, as in this case, can take five to six minutes.
"Powering Up the Board" on page
A–4, except select the cycloneIII_3c120_dev_factory_recovery.pof file.
Appendix A: Programming the Flash Device
Restoring the Factory Design to the Flash Device
4–1.
"Programming the Flash Device" on
