1.4.2 The Start-up Wizard

The built-in wizard menu guides the installer through the
set-up of the frequency converter in a clear and structured
manner to set-up an open loop application. An open loop
application is here an application with a start signal,
analog reference (voltage or current) and optionally also
relay signals (but no feed back signal from the process
applied).

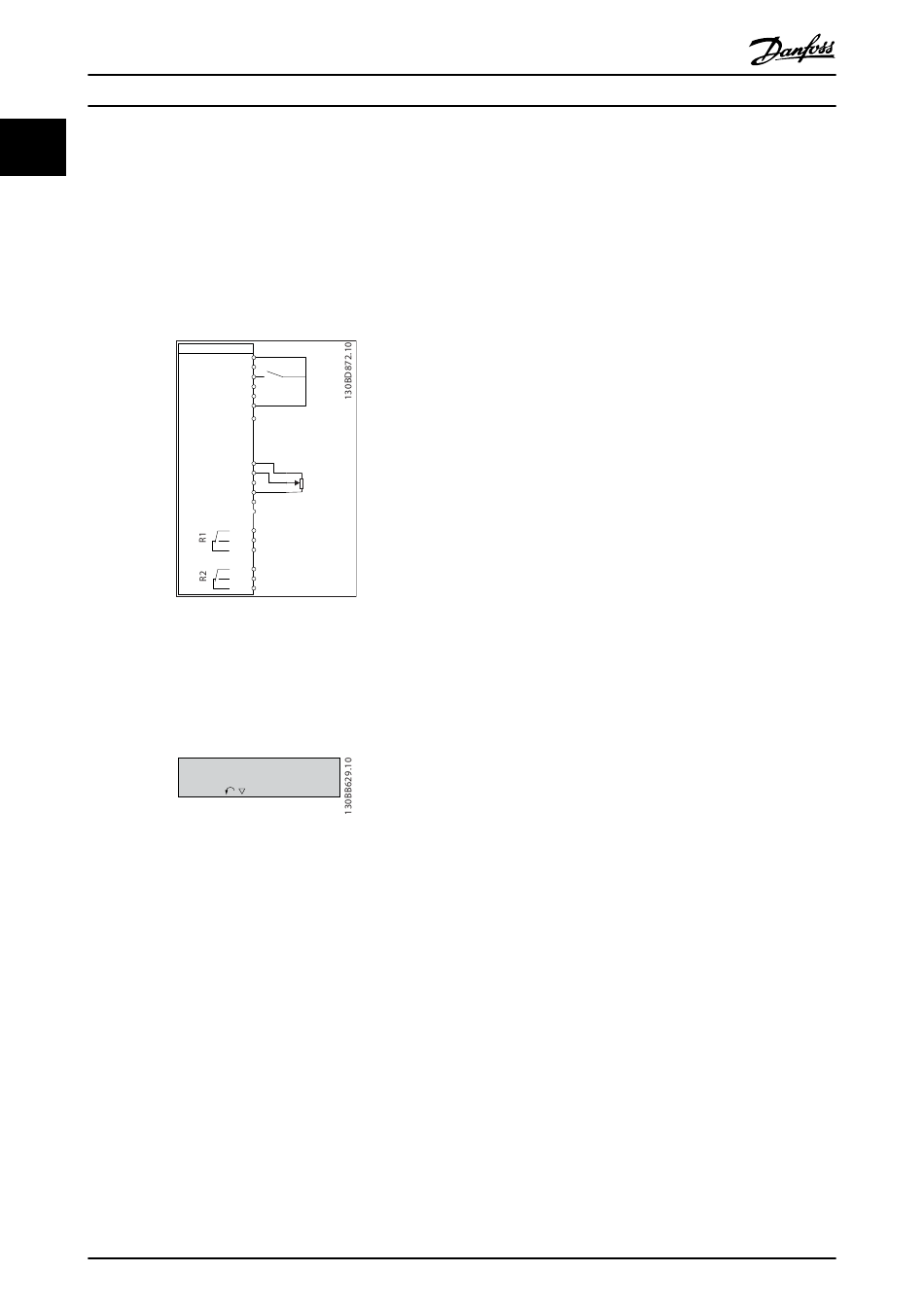

Illustration 1.13 Open Loop Application
The wizard is initially be shown after power-up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. Press [Back] to return to the status screen.
Illustration 1.14 Start-up/Quit Wizard
12
Quick Guide
FC
12
+24 V
15
PRESSURE SWITCH
DIG IN
18
Start
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10 V
50
+
A IN
53
Reference
A IN
54
COM
55
42
0-10 V
A OUT/D OUT
A OUT/D OUT 45
01
02
03
04
05
06
Press OK to start Wizard
Push Back to skip it
Setup 1
