1.4 Programming

1.4.1 Local Control Panel (LCP)
NOTICE
LCP is NOT supported in SW 1.0X!
The LCP is divided into 4 functional sections.
A. Display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
1
2
1-20 Motor Power
3
A
[5] 0.37kW - 0.5HP
Setup 1
4
Status
B
Menu
6
Com.
C
10
Back
On
7
Warn.
8
Alarm
9
Hand
D
On
13

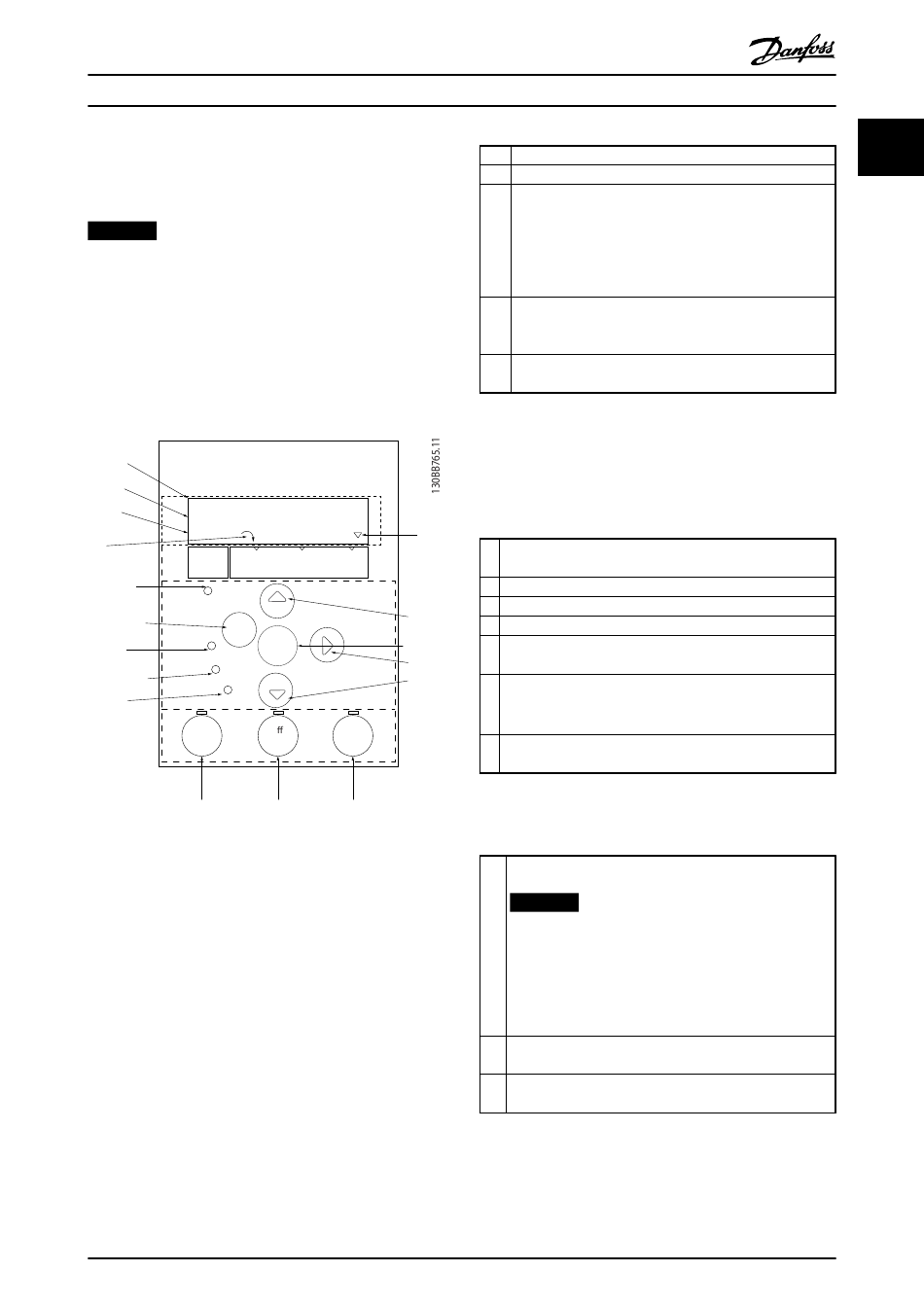

Illustration 1.12 Local Control Panel (LCP)
A. Display
The LCD-display is back-lit with 2 alphanumeric lines. All
data is displayed on the LCP.
Information can be read from the display.
MG18M102
Quick Guide
5
Main
Quick
Menu
Menu
11
12
OK
11
11
O Auto
Reset On
14 15
Danfoss A/S © Rev. 09/2014 All rights reserved.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-ups differ, both numbers are shown in
the display (set-up 12). The number flashing, indicates the
edit set-up.
4 Compressor direction is shown to the bottom left of the
display – indicated by a small arrow pointing either
clockwise or counterclockwise.
5 The triangle indicates if the LCP is in Status, Quick Menu
or Main Menu.
Table 1.10 Legend to Illustration 1.12
B. Menu key
Press [Menu] to select between Status, Quick Menu or
Main Menu.
C. Navigation keys and indicator lights (LEDs)
6 Com LED: Flashes when bus communication is communi-
cating.
7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
navigation structure
▲ ▼
11 [
] [ ] [►]: For maneuvering between parameter groups,
parameters and within parameters. Can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings
Table 1.11 Legend to Illustration 1.12
D. Operation keys and indicator lights (LEDs)
13 [Hand On]: Starts the compressor and enables control of
the frequency converter via the LCP.
NOTICE
Terminal 27 Digital Input (5-12 Terminal 27 Digital
Input) has stop inverse as default setting. This
means that [Hand On] does not start the
compressor if there is no 24 V to terminal 27.
Connect terminal 12 to terminal 27.
14 [Off/Reset]: Stops the compressor (Off). If in alarm mode,
the alarm is reset.
15 [Auto On]: Frequency converter is controlled either via
control terminals or serial communication.
Table 1.12 Legend to Illustration 1.12
