Note: The switch shown in the previous figure does not represent real S2956 switch.
5) When the cover is opened, put it aside. The mainframe of the system appears.
Note:
After taking off the cover, put it horizontally and avoid it to be crushed or collided.
Otherwise, the chassis is hard to install.
4.2

Closing the Chassis

The section mainly describes how to put the cover and close the chassis. Do as
follows:
1) Put them well according to their locations and joint them together along their
sides.

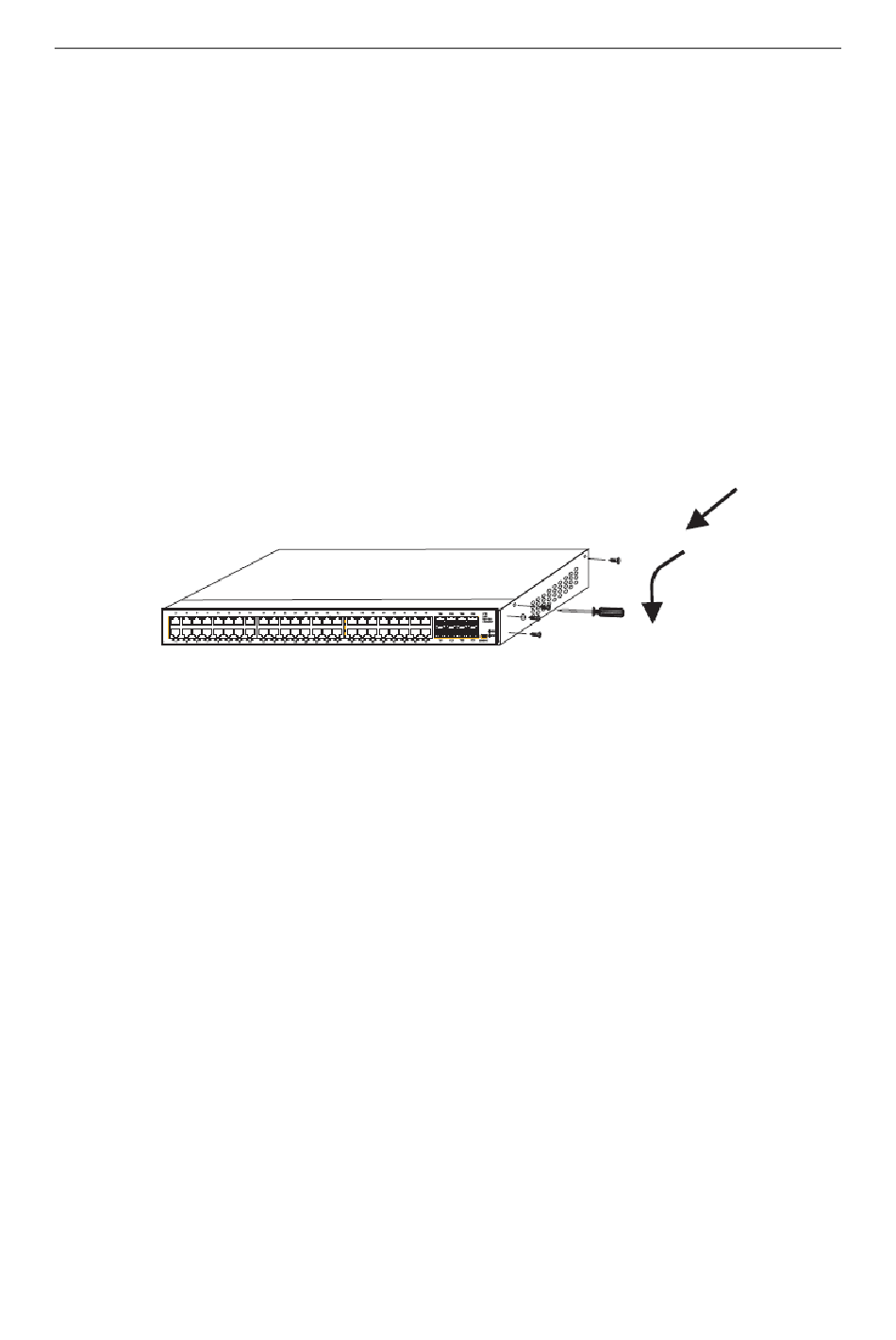

2) See the following figure.
3) When the cover and the bottom are closely tied, let the cover slide the slot of the
front template at the bottom.
4) Nail the bolt and screw it tightly with the screwdriver.
5) Reinstall the switch on the cabinet or the desk.
6) Reconnect all cables of the switch.
