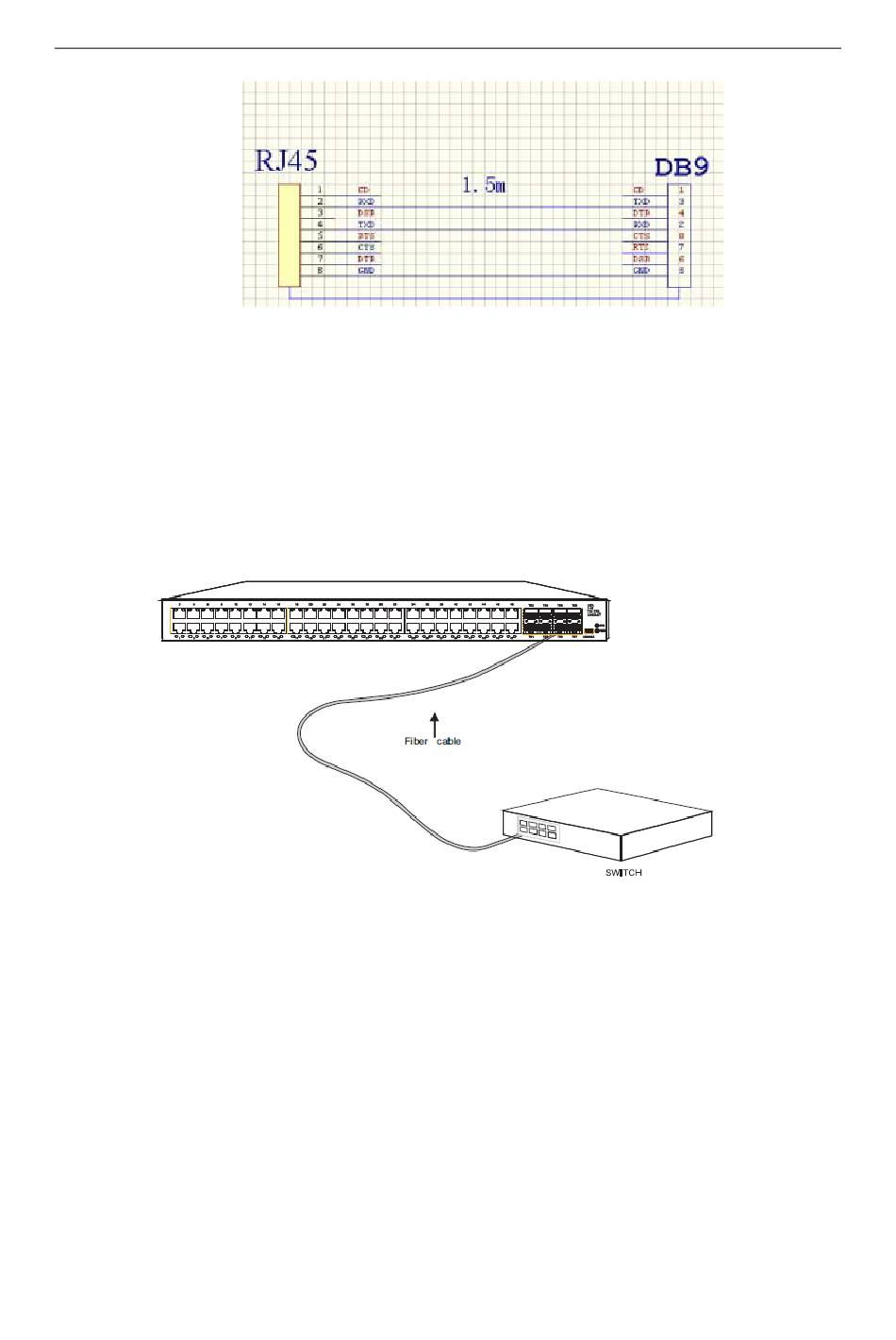

3.3.2 Connecting the 1000M Ethernet SFP Port
S2956 provides 8 10G SFP+ ports. You can insert the SFP+ optical module into the
port and then connect the module to other Ethernet terminal devices through the
optical fiber if you want to use the SFP+ port.
Note: The switch shown in the previous figure does not represent real S2956 switch.
3.3.3 Connecting Ethernet Electric Port
The S2956 switch has 48 10/100/1000Base-T ports. The indicators are labeled with
numbers 1-48, indicating the link/ACT state of the port. You can connect other Ethernet
terminal devices to the UTP port through the cut-through or cross network cable. The
numbering order of the pins in the UTP port is the same as the console port.
Figure 3-4 External wiring of the console port
S2956 Hardware Installation Manual
- 11 -
