2.1.4. Lifting

Always lift the frequency converter in the dedicated lifting eyes. Use a bar to avoid bending the
lifting holes of the frequency converter.
2

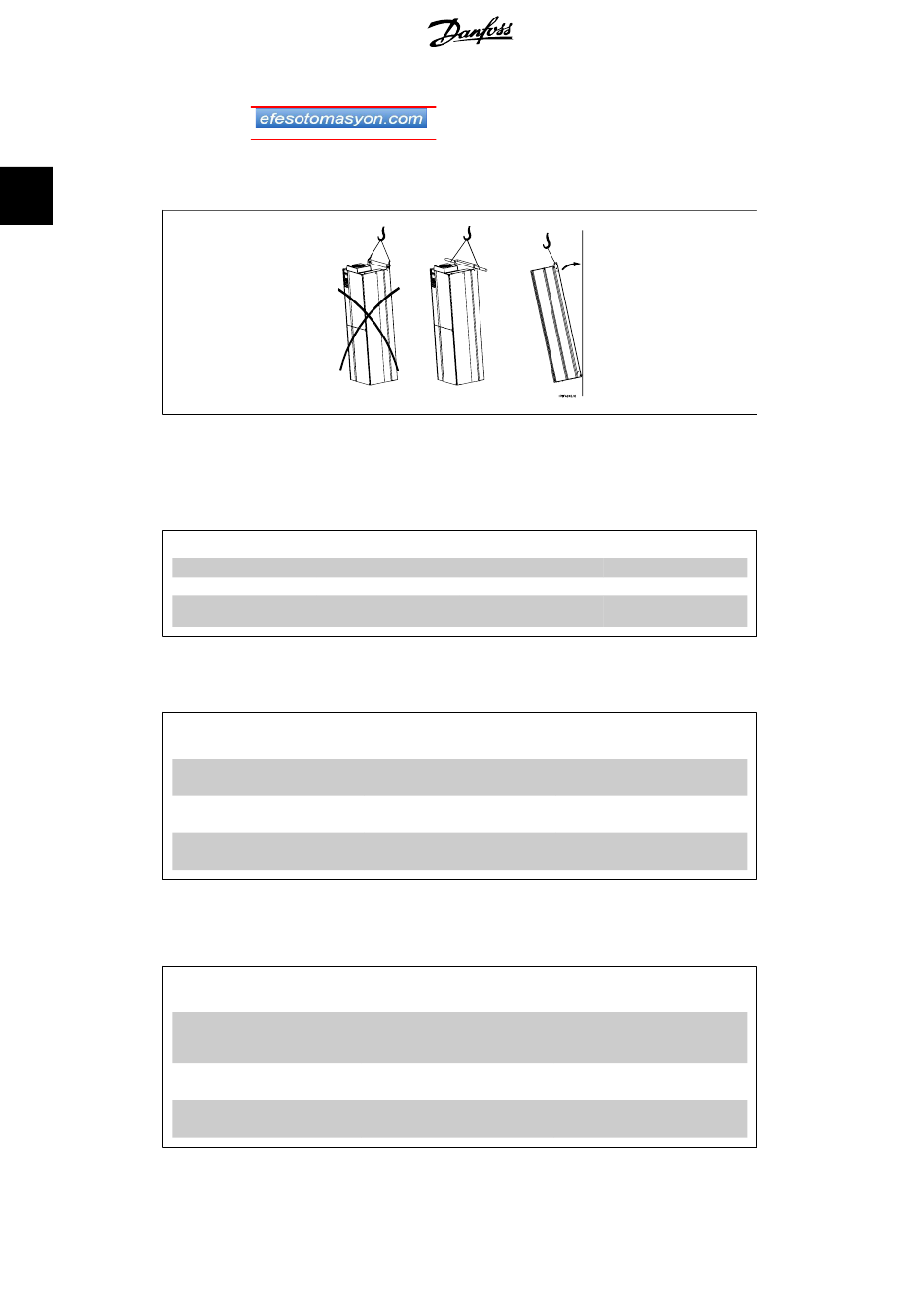

Illustration 2.2: Recommended lifting method

2.1.5. Shipping Weights and Dimensions

The weight and dimensions of the frequency converter and packaging depend on the actual unit.
IP 00 / Chassis
IP 21 / NEMA Type 1 104 (229)
IP 54 / NEMA Type 12 104 (229)
Table 2.1: Shipping weight in kg (lbs)
Weight is specified as the maximum weight with all possible options included.
Enclosure D1
Enclosure D2
Enclosure E1
Table 2.2: Card board box size. Shipping dimensions (width * hight * depth in mm (in))
The units are shipped laying down, and the above dimensions are according to this. The dimen-
sions include the skid where the box is mounted.
Enclosure D1
Enclosure D2
Enclosure E1
Table 2.3: Drive dimensions (height * width * depth in mm (in))
8
Enclosure D1 Enclosure D2
91 (200) 138 (304)
151 (333)
151 (333)
IP00 / Chassis
1220*650*570
(48*25.6*22.4)
1490*650*570
(58.7*25.6*22.4)
1705*831*736
(67.1*32.8*29.0)
IP00 / Chassis
1046*408*373
(41*16.1*14.7)
1327*408*373
(52.2*16.1*14.7)
1499*585*506
(59.0*23.0*19.9)
MI.90.J2.02 - VLT ® is a registered Danfoss trademark
®
VLT
High Power Installation Guide
Enclosure E1
277 (610)
313 (689)
272 (689)
IP21 / NEMA Type 1
IP54 / NEMA Type 12
1730*650*570
(53.9*25.6*22.4)
1730*650*570
(68.1*25.6*22.4)
2197*840*736
(86.5*33.1*29.0)
IP21 / NEMA Type 1
IP54 / NEMA Type 12
1208*420*373
(47.5*16.5*14.7)
1588*420*373
(62.5*16.5*14.7)
2000*6000*494
(78.7*23.6*19.5)
5000/6000/8000
