Danfoss VLT 6000 Installation Manual page 40

4. Duct Work Cooling Kit for IP00 Units

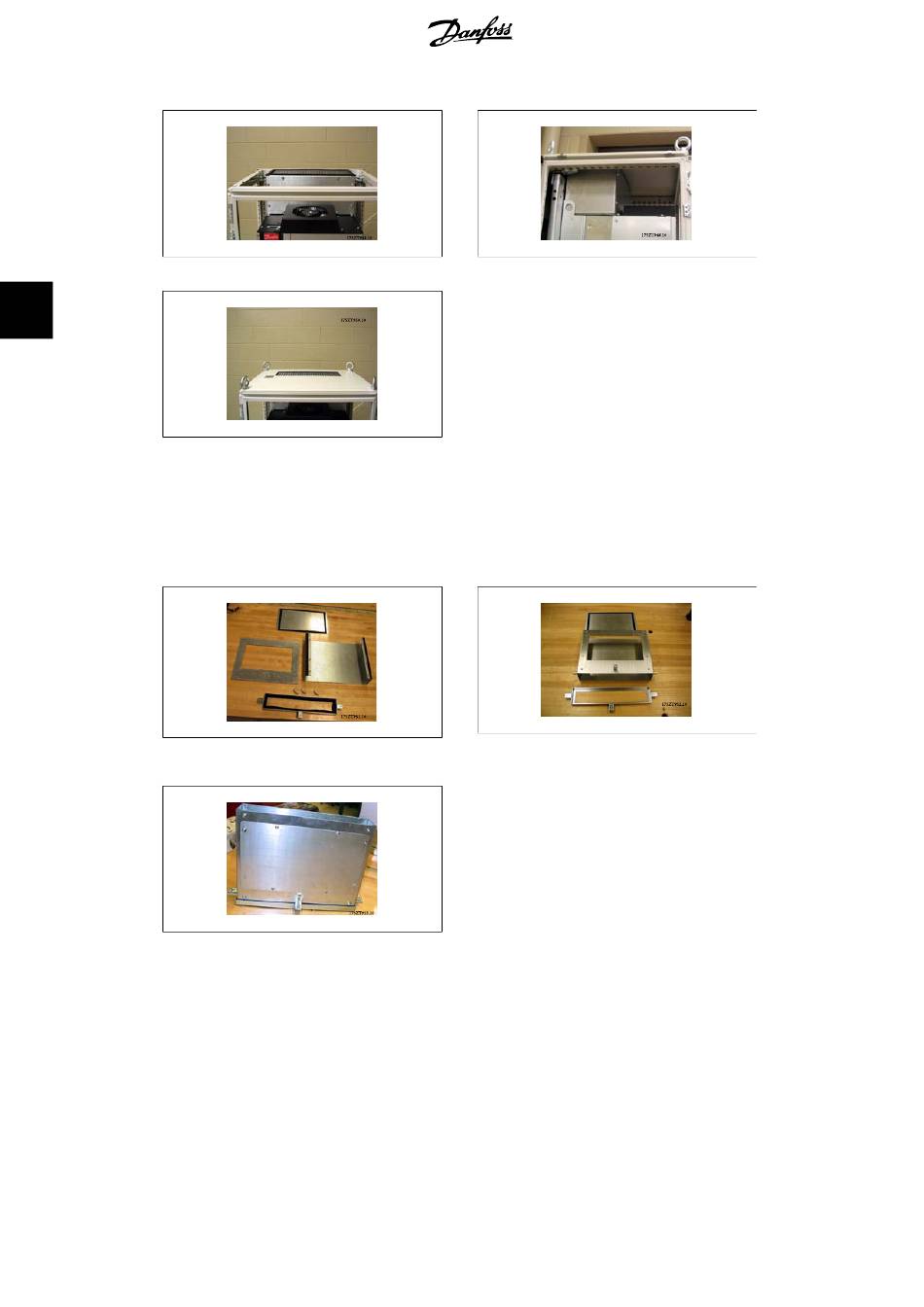

Illustration 4.20: Top duct closing plate installed
4
Illustration 4.22: Top view of Rittal enclosure
The bottom duct assembly pieces. Refer to drawing showing exploded view of duct work compo-
nents. Gasket is installed as shown. Assemble the bottom duct less the cover. Assembly includes
the mounting of 3 angle brackets on the front and sides of the partially assembled bottom duct.
The bottom duct collar is bolted to the duct using 3 - T25 screws in the outermost holes of the
brackets. Tighten the screws to compress the gasket.
Illustration 4.23: Bottom ductwork pieces
Illustration 4.25: Completely assembled bottom
duct work
The duct assembly is used to mark the bottom
cutout. Temporarily install the bottom duct
work as shown to the right. Use the inside of
the ductwork to mark the bottom of the en-
closure for the opening.
40
Illustration 4.21: Enclosure top installed
Illustration 4.24: Bottom ductwork partially as-
sembled
MI.90.J2.02 - VLT ® is a registered Danfoss trademark
®
VLT 5000/6000/8000
High Power Installation Guide
