5. Installation on Pedestal - IP 21 / IP 54 Units

The frequency converter can also be installed on the floor. A dedicated floor stand is designed for
that purpose. It can only be used for units produced after week 50, 2004 (serial number
XXXXXG504).
This section describes the installation of a pedestal unit available for the VLT series frequency
converters frames D1 and D2. This is a 200 mm high pedestal that allows these frames to be floor
mounted. The front of the pedestal has openings for input air to the power components.
The frequency converter gland plate must be installed to provide adequate cooling air to the
control components of the frequency converter via the door fan and to maintain the IP21/NEMA
1 or IP54/NEMA 12 degrees of enclosure protections.
There is one pedestal that fits both frames D1 and D2.
Required Tools
Required Tools:
•
•
Torques:
•
•
•
Kit Contents:
•
•
Socket wrench with 7-17 mm sockets
T30 Torx Driver
M6 - 4.0 Nm (35 in-lbs)
M8 - 9.8 Nm (85 in-lbs)
M10 - 19.6 Nm (170 in-lbs)
Pedestal parts
Instruction manual
MI.90.J2.02 - VLT ® is a registered Danfoss trademark
5. Installation on Pedestal - IP 21 / IP 54 Units

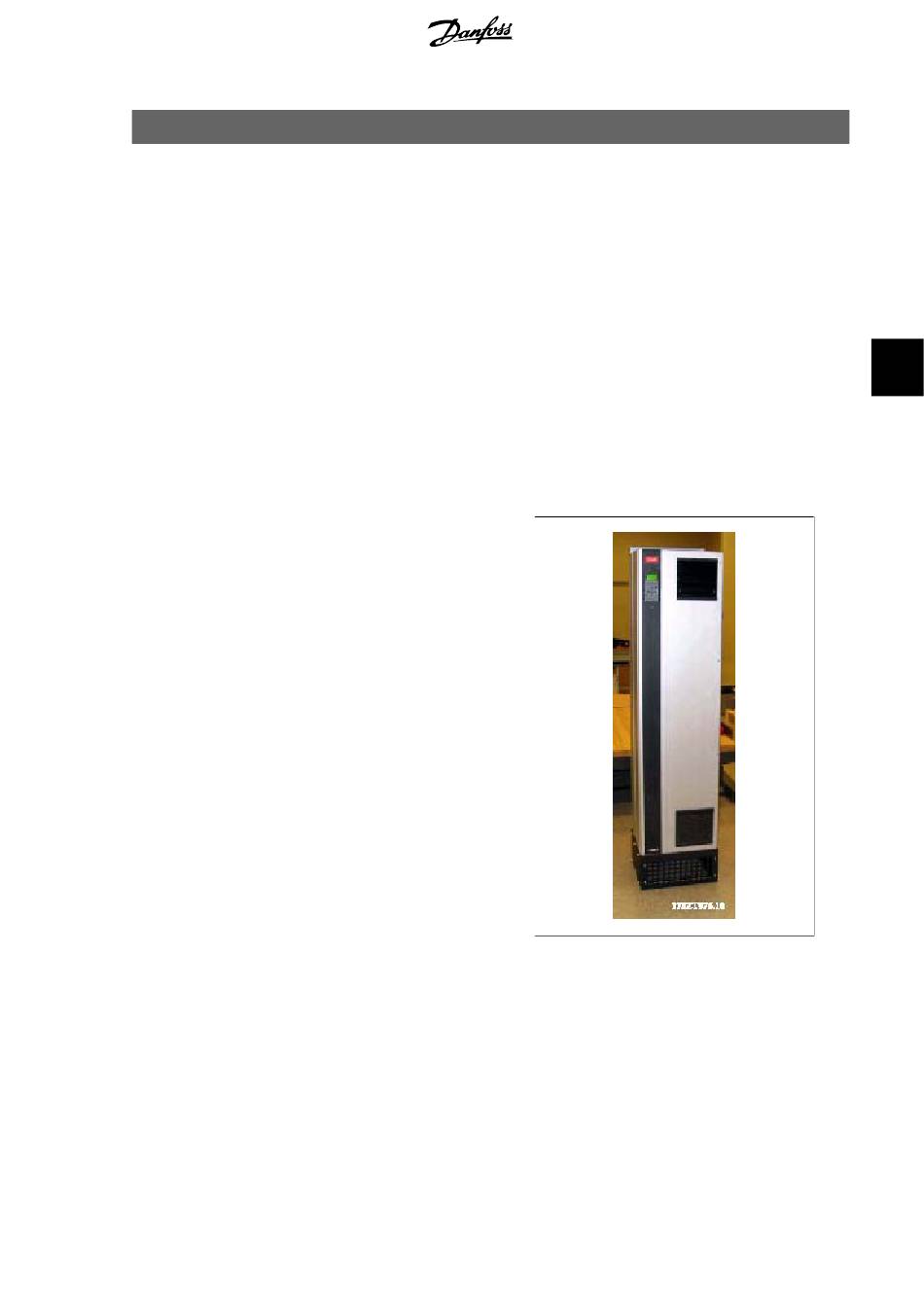

Illustration 5.1: Drive on pedestal.
