VLT 5000/6000/8000
High Power Installation Guide

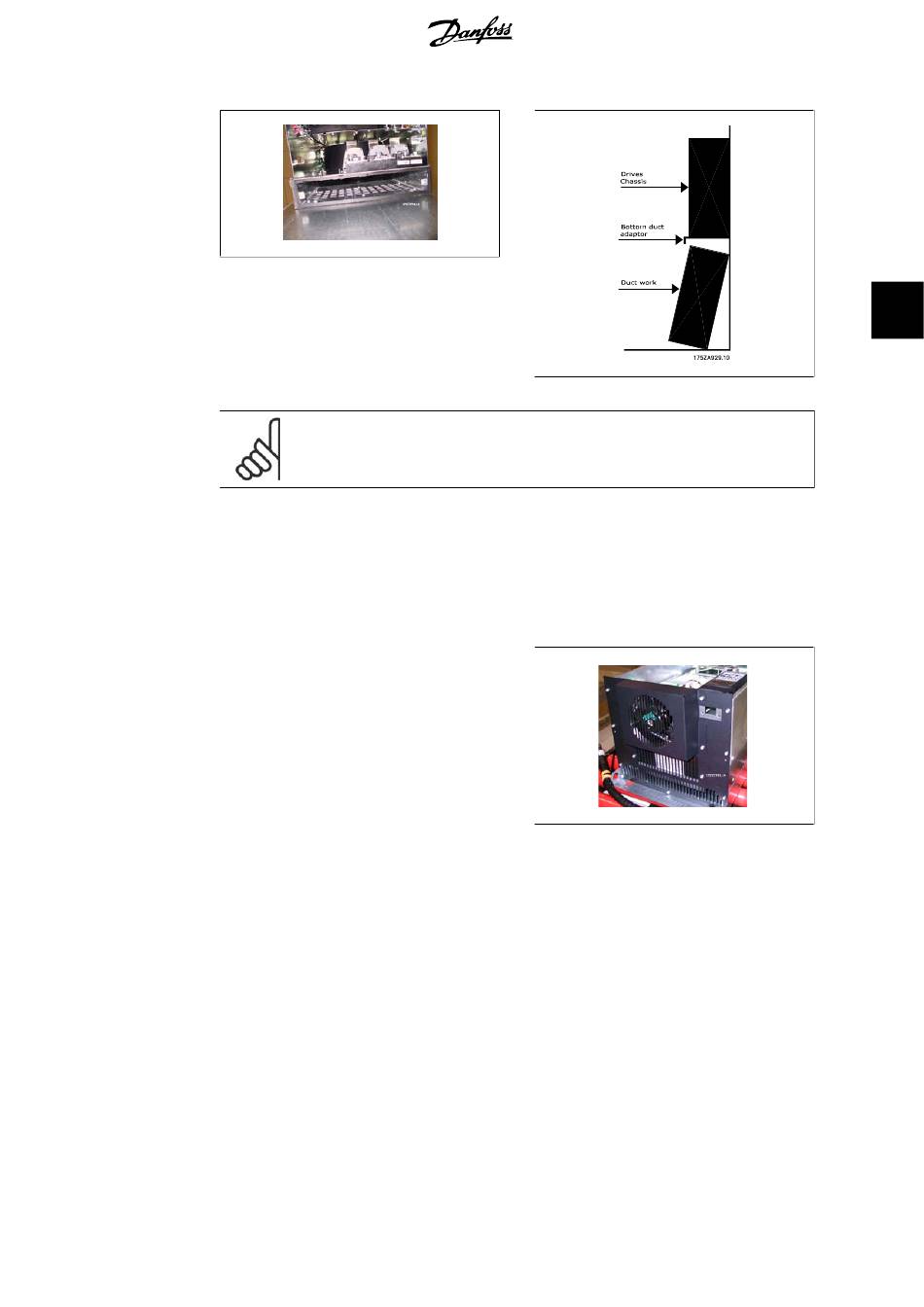

Illustration 4.5: Bottom duct adapter installed
Install the two mounting brackets on the frequency converter chassis and then install the bottom
duct adapter on the bottom of the frequency converter as shown below.
The installation of the bottom plate is easier while the back panel is outside the enclosure. The
curved leading edge of the bottom duct adapter is to the front of the frequency converter and
down.
Before installing the back panel with the fre-
quency converter in the Rittal TS8 enclosure
remove and discard the rearmost 5 screws
(see illustration below) located on the top cov-
er of the frequency converter. The holes will
be used to fasten the top ductwork with longer
screws provided with the kit.
Install the back panel in the enclosure, see illustration below. Use Rittal PS4593.000 brackets
(minimum one per side at the middle of the frequency converter) with appropriate support strip
for additional support of the back panel. For the D2 and E1 frame use two supports per side. If
additional components are mounted on the same back panel, consult Rittal manual for additional
support requirements.
NB!
Install the bottom plate after the frequency converter has been installed on the back
to assure proper gasket coverage.
MI.90.J2.02 - VLT ® is a registered Danfoss trademark
4. Duct Work Cooling Kit for IP00 Units
Illustration 4.6: Side view
Illustration 4.7: Top of IP 00 / Chassis frequency
converter
4
37
