VLT
5000/6000/8000
High Power Installation Guide
Wire access
Ensure that proper wire access is present including necessary bending space. As the IP00 enclo-
sure is open to the bottom wires must be fixed to the back panel of the enclosure where the
frequency converter is mounted, i.e. by using cable clamps.
Terminal locations(D1 and D2 enclosures)
Take the following position of the terminals into consideration when you design for cables access.

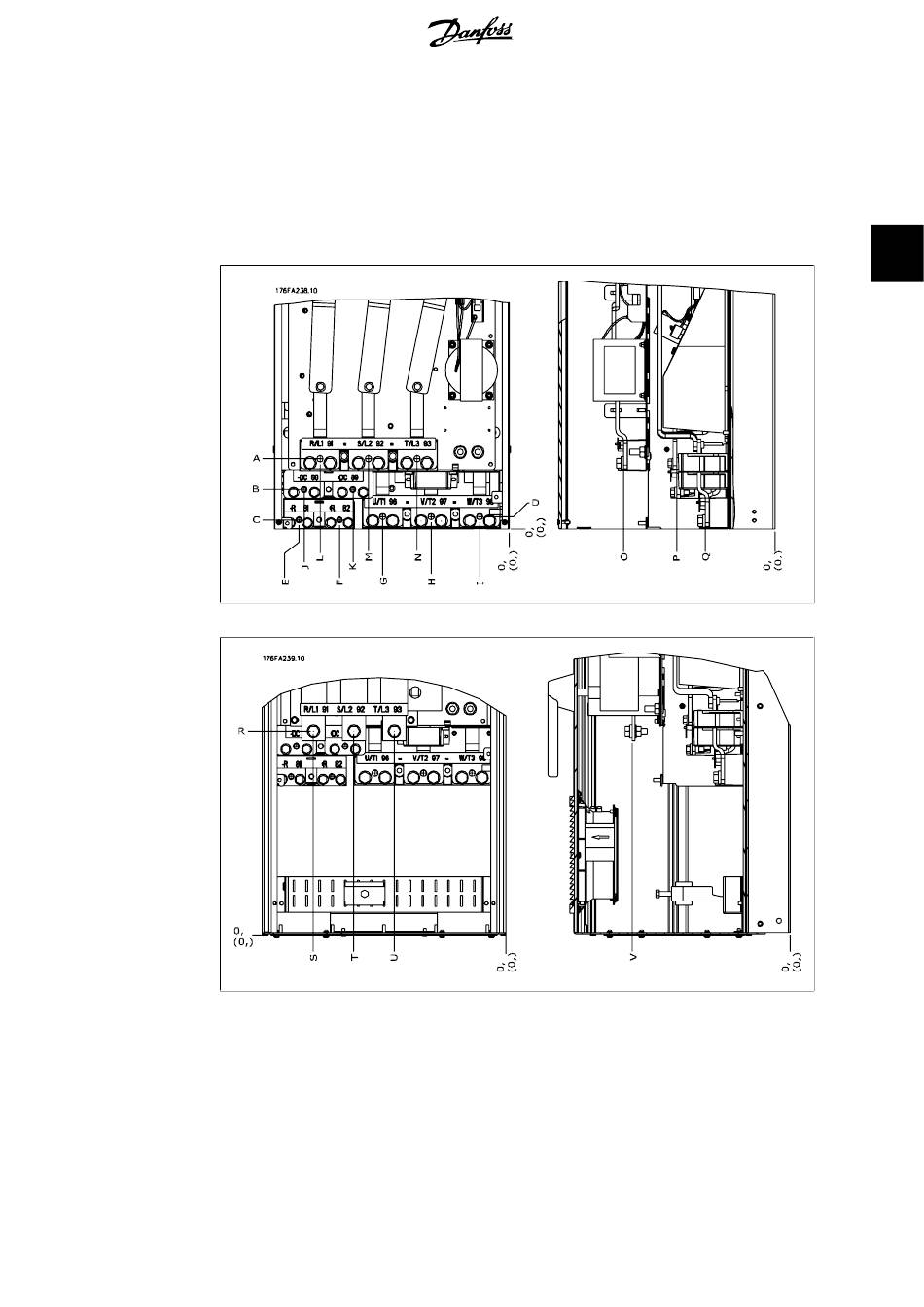

Illustration 3.5: Position of power connections
Illustration 3.6: Position of power connections - Disconnect
Be aware that the power cables are heavy and hard to bend. Consider the optimum position of
the frequency converter for ensuring easy installation of the cables.
MI.90.J2.02 - VLT
®
is a registered Danfoss trademark
3. Installation
3
11
