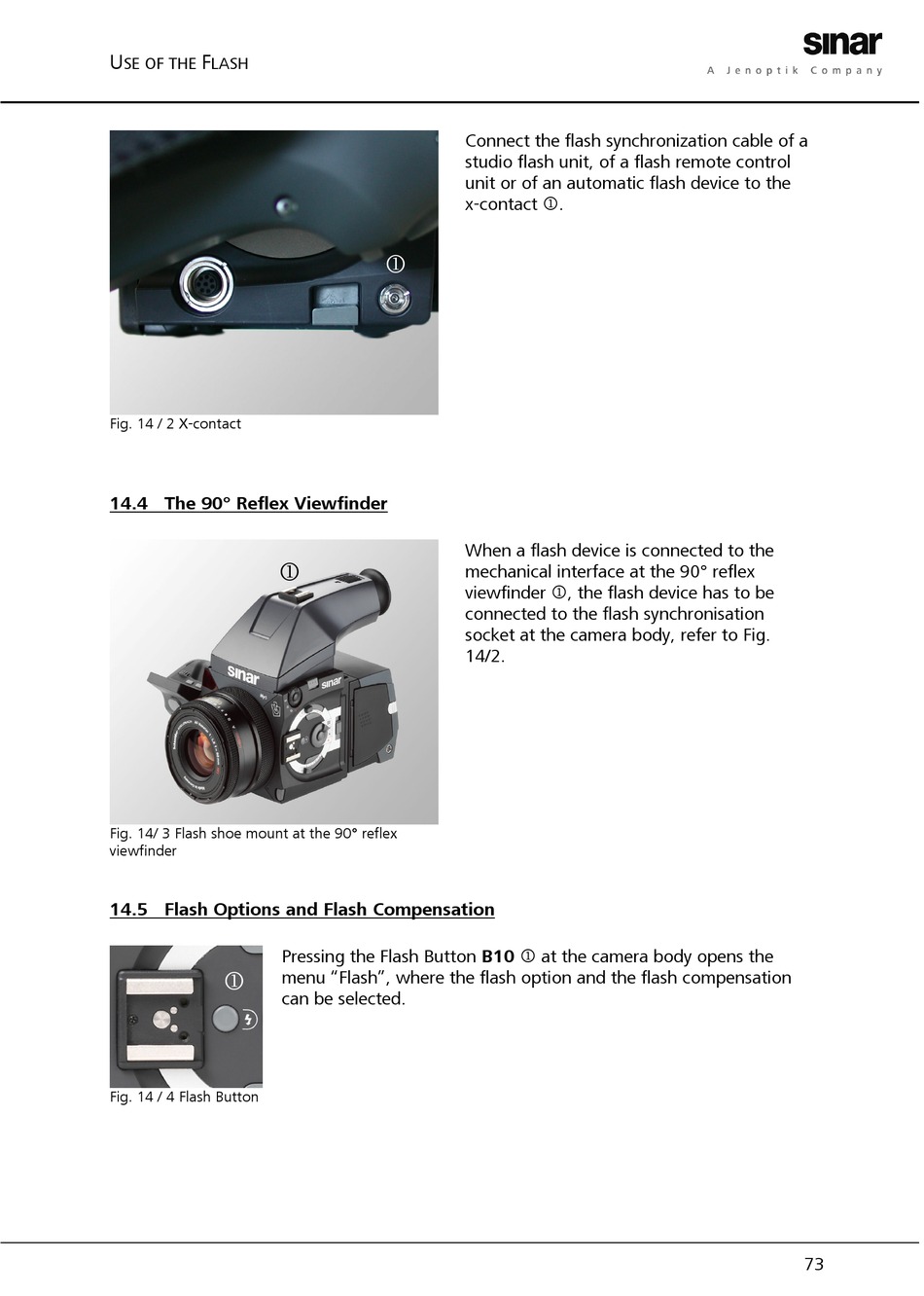

The 90° Reflex Viewfinder; Flash Options And Flash Compensation - Sinar Medium Format Camera System Hy6 Operating Manual

U F
SE OF THE LASH
Fig. 14 / 2 X-contact
14.4 The 90° Reflex Viewfinder
1
Fig. 14/ 3 Flash shoe mount at the 90° reflex
viewfinder

14.5 Flash Options and Flash Compensation

Pressing the Flash Button B10 1 at the camera body opens the
menu "Flash", where the flash option and the flash compensation
1
can be selected.
Fig. 14 / 4 Flash Button
Connect the flash synchronization cable of a
studio flash unit, of a flash remote control
unit or of an automatic flash device to the
x-contact 1.
1
When a flash device is connected to the
mechanical interface at the 90° reflex
viewfinder 1, the flash device has to be
connected to the flash synchronisation
socket at the camera body, refer to Fig.
14/2.
73
