Battery; Inserting And Removing The Battery - Sinar Medium Format Camera System Hy6 Operating Manual

B
ATTERY
6

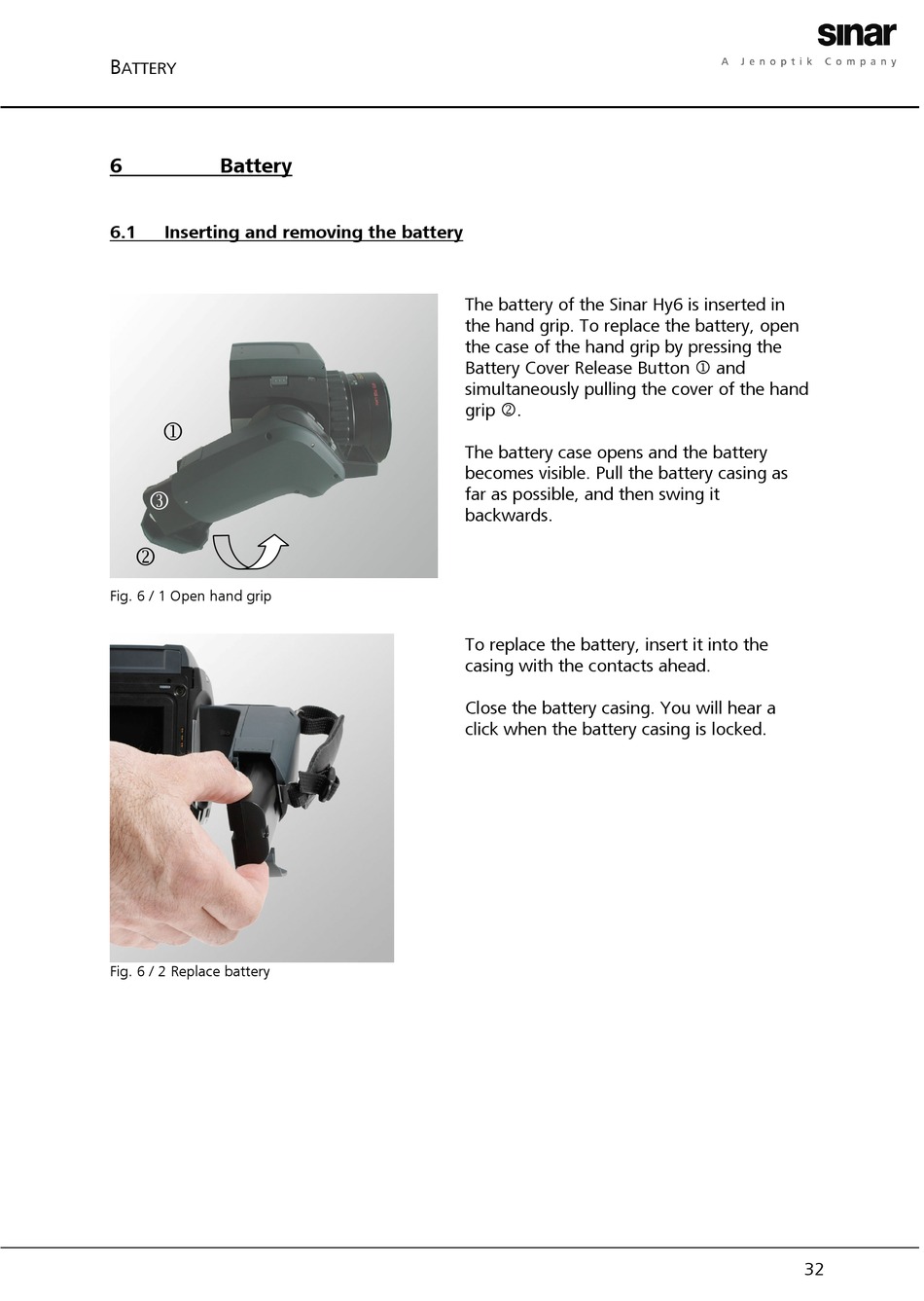

Battery

6.1

Inserting and removing the battery

1
3
2
Fig. 6 / 1 Open hand grip
Fig. 6 / 2 Replace battery
The battery of the Sinar Hy6 is inserted in
the hand grip. To replace the battery, open
the case of the hand grip by pressing the
Battery Cover Release Button 1 and
simultaneously pulling the cover of the hand
grip 2.
The battery case opens and the battery
becomes visible. Pull the battery casing as
far as possible, and then swing it
backwards.
To replace the battery, insert it into the
casing with the contacts ahead.
Close the battery casing. You will hear a
click when the battery casing is locked.
32
