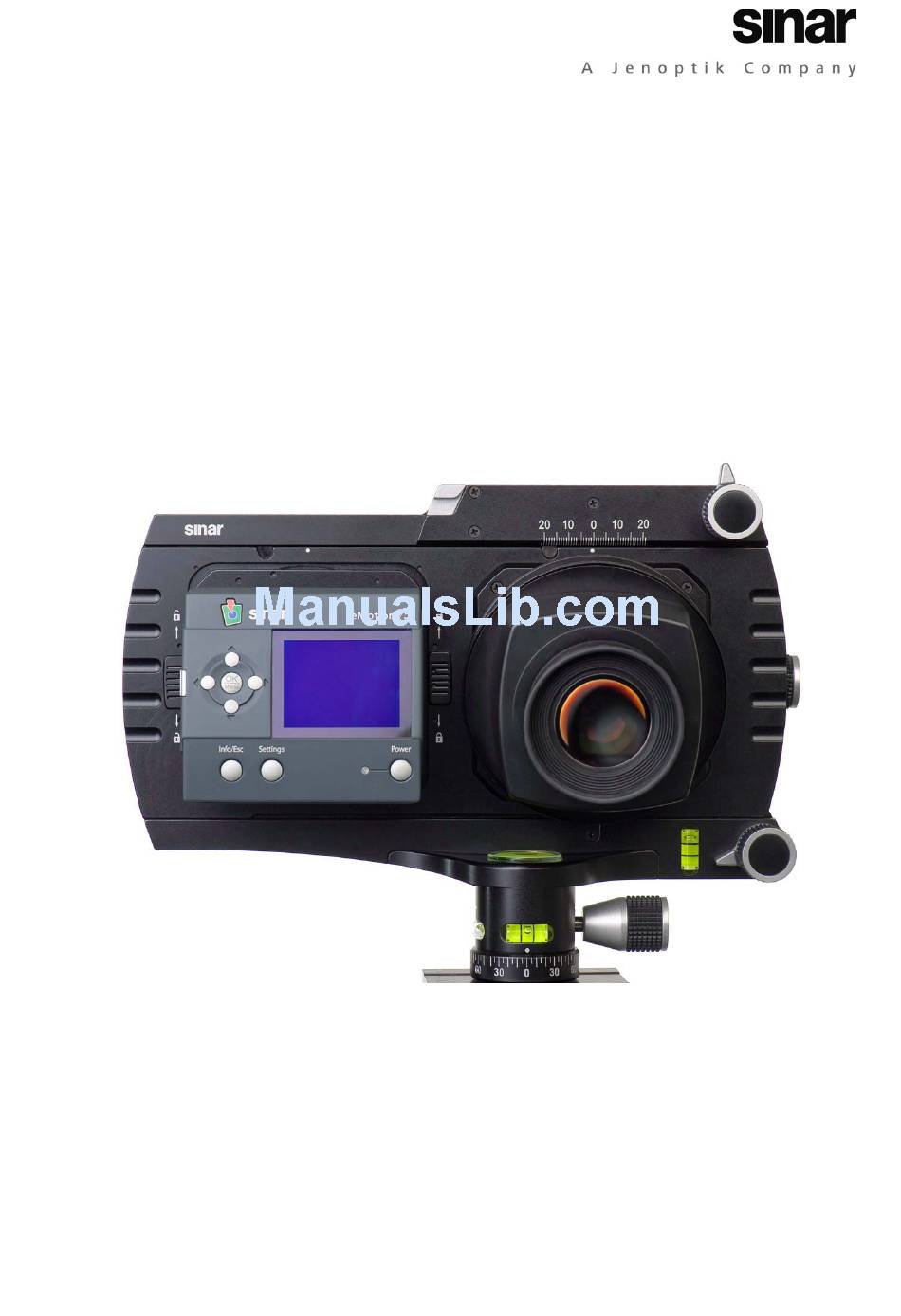

- Page 1 Sinar arTec _____________________________________________________________________ The Camera System for Digital Architectural Photography Operating Instructions...
- Page 2 Please be careful and make sure that you take pictures only in accordance with the laws effective in the respective country. Trademarks The Sinar wordmark and the Sinar logo are registered trademarks of Sinar AG. All other trademarks referred to in this manual belong to their respective proprietors. Sinar AG Sinar arTec Manual V 1.00 - EN.doc...
-
Page 3: Table Of Contents
Removing a Digital back......................8 Changing the Image Format ....................9 2.5.1 Changing the format on a Digital back with a Revolving adapter on Sinar arTec Hy6 ..9 2.5.2 Changing the format on a Digital back with a Conventional adapter on Sinar arTec Hy6..9 2.5.3... - Page 4 3.2.1 Fundamentals of vertical perspective correction ..............17 3.2.2 Vertical perspective correction with the Sinar arTec............18 3.2.3 Fundamentals of horizontal perspective correction............18 3.2.4 Horizontal Perspective correction with the Sinar arTec ............20 Swings and Tilts ........................20 3.3.1 General ..........................20 3.3.2 Tilting..........................20 3.3.3 Swings ..........................20...
-
Page 5: Introduction
Fundamentals We congratulate you on the purchase of your Sinar arTec camera and we thank you for your trust in our prod- ucts. We are convinced that the Sinar arTec will be extremely helpful in your work. Its sturdy and precise con- struction assures you a long and problem-free operation. -
Page 6: Technical Data
5% – 80%, non-condensing Scope of Delivery The Sinar arTec camera is currently available in four different versions. The sets of items that are included are different for each version. Immediately upon receiving your camera, please verify that the set of items that are supplied with your version of the camera is complete and undamaged. -
Page 7: Sinar Artec-E54R
ONTENT 1.3.3 Sinar arTec-e54r Item no. 493.23.011, Sinar arTec Hy6, with Sinarback eMotion 54 LV 493.23.100 Sinar arTec Hy6 552.36.185 SB eMotion/Sinar Hy6 Revolving Adapter 02.10216 Note regarding Sinarback eMotion Adapter 552.36.111 Sinarback eMotion 54 LV 551.43.090 Sinarback Software 551.63.054 Firewire Cable 1394 A, 4.5 m / 15 ft... -
Page 8: Preparation
2.1.1 The operating elements Fig. 4a: Rear view of the Sinar arTec showing the digital back and the flexible focusing magnifier Fig. 4b: Front view of the Sinar arTec showing the lens, the Rod holder and an Accessory shoe Sinar arTec camera body... -
Page 9: Details Of The Camera
Micro drive for horizontal shifts Locking lever for the Horizontal micro drive Attachment position for digital backs Locking slider for digital back, left / right (Sinar arTec Hy6) Combined Fresnel lens and Focusing screen Reversible magnetic metal format mask Guides for the Focusing magnifier... - Page 10 ONTENT Fig. 6a: Front view of the Sinar arTec, without a lens Fig. 6b: The Sinar arTec with an attached lens Lens carrier frame, can be rotated 360º Lens Unlocking slider Micro drive for tilting the Lens carrier frame Zero-position Locating pin for rotating/swinging the Lens carrier frame Locking lever for rotations/swings of the Lens carrier frame Fig.
-
Page 11: Setting Up And Leveling The Camera
Setting up and Leveling the Camera 1. Mount the Sinar arTec on a sturdy tripod equipped with a 3/8“ tripod thread [13]. 2. Tighten the fastening screw of the camera base [14] and make sure that the camera is attached firmly to the tripod head. -
Page 12: Removing The Digital Back
[7] for the digital back from dust as much as possible. Attaching and Removing a Digital Back on a Sinar arTec HB-V Fig. 9: Attaching a digital back to the Sinar arTec HB-V camera Magnetic discs to hold the Protection cover... -
Page 13: Changing The Image Format
Sinar arTec Hy6 When a camera adapter other than the Sinar Revolving Adapter is used on a Sinar arTec Hy6 camera, the digital back has to be detached from the camera and rotated by 90º for changing the format from landscape to por- trait (or vice-versa) and then be re-attached to the camera (also see chapter 2.3) -
Page 14: The Focusing Magnifier
Fig. 13: The focusing magnifier in place on the camera 2.6.1 Features of the Focusing magnifier The flexible Sinar Focusing magnifier 551.32.086 has a 3x magnifying power and it enables you to view the en- tire focusing screen at a glance. -
Page 15: The Focusing Screen
The Focusing Screen The Focusing screen [9] of the Sinar arTec camera consists of a glass plate with grid lines and a Fresnel lens po- sitioned right below that plate. This arrangement guarantees a clear and bright image for viewing. -
Page 16: Attaching And Removing The Lens
Attaching and Removing the Lens 2.9.1 Attaching the lens The lenses used on the Sinar arTec camera are from the "Sinaron Digital CEF" line of lenses, which are equipped with a focusing mount. To attach the lens, insert the lens board into the Lens carrier frame straight from above (see figure 15). Now swing the lens upwards with gentle but secure pressure until the brass-colored Lens latching slider becomes completely visible (also see figure 17). -
Page 17: How To Operate The Sinaron Digital Cef Lens
The numbers on the focusing ring itself serve to indicate the distance at which the lens is focused (in meters and feet). Sinar arTec Operating Instruction V 1.00... -
Page 18: Setting The Shutter Speed
[36] and the shutter must be closed by means of the Shutter setting knob [34]. In addition, the shutter must be cocked by operating the Shutter cocking lever [32]. Only then can the exposure be made. Sinar arTec Operating Instruction V 1.00... -
Page 19: Connecting The Cables
2.12 Photography on Film 2.12.1 General The Sinar Artec HB-V camera can also be used to capture images on roll film. This requires the use of a Hasselblad V Roll Film Magazine (for instance: Type A12-6x6). Please note that certain Sinaron Digital CEF lenses have image circles that do not cover the entire area of a 6x6 cm frame on roll film. -
Page 20: Photographs On Roll Film
Sinar arTec HB-V camera exactly like a digital back with a Hasselblad-V in- terface (please also see chapter 2.4). 2. With the Sinar arTec camera in the Viewing position, you can now compose your picture on the focus- ing screen. -
Page 21: Image Settings And Exposure
Possibilities of Image Settings The Sinar arTec permits all kinds of adjustments, just as we are familiar with them from view camera systems: Horizontal and vertical shifts as well as tilts and swings. The Sinar arTec camera’s operating elements used most often for tilts are user-friendly and they are positioned at the back of the camera (see figure 23). -
Page 22: Vertical Perspective Correction With The Sinar Artec
Instead they will be shown with a converging perspective. 3.2.2 Vertical perspective correction with the Sinar arTec With the Sinar arTec camera, converging lines can be avoided by not tilting the camera upwards, but by shifting the image circle upwards instead. - Page 23 Illustrations 24, 26, and 27 from: Urs Tillmanns: "Creative Large Format: Basics and Applications". Sinar Edition, Verlag Photographie, Schaffhausen 1992 Sinar arTec Operating Instruction V 1.00...
-
Page 24: Horizontal Perspective Correction With The Sinar Artec
3.2.4 Horizontal Perspective correction with the Sinar arTec To perform a horizontal shift on the Sinar arTec, first loosen the Locking lever [6], then use the Micro drive [5] to make the horizontal shift to the desired extent and lock it in that position by tightening the Locking lever [6] again. -
Page 25: Step By Step Towards The Exposure
Step by Step Towards the Exposure 3.4.1 Image settings 1. With the Sinar arTec being in Viewing position (see figure 30a) set the lens to viewing mode by opening the shutter [34] and opening the aperture to maximum [38] (also see chapter 2.9). -
Page 26: Accessories For The Sinar Artec Camera
4 Accessories for the Sinar arTec Camera Lenses The Sinaron Digital CEF Series of Lenses are made for use on the Sinar arTec camera. Sinaron Digital lenses were designed specifically to meet the high demands of digital photography. All Sinaron Digital Lenses have the resolving power of at least 50 pairs of lines/mm all the way to the edge of the image circle. -
Page 27: White Shading Diffusor
Additional information concerning shading exposures and their practical application in the exposure software Sinar eXposure™ can be found in Chapter 5.2. The White Shading Diffusor is included with both the Sinar arTec Hy6 493.23.000 and the Sinar arTec HB-V 493.23.001 cameras. This accessory is also available separately as Item Number 551.43.097. -
Page 28: Lens Shade
But a lens shade can only provide the best protection against stray light when it is optimally tailored to the angle of view, and the Sinar System offers several solutions for that purpose. -
Page 29: Swiveling Polarizing Filter
Polarizing filters can be especially useful for eliminating distracting reflections in outdoor photography. The Sinar Swiveling Circular Polarizing Filter can be mounted on the Sinar arTec camera by means of the optional Filter Rod Holder and a Filter Rod (also see chapter 4.4). This makes it possible very conveniently to swing the filter away from the lens or out of the light path at any time. -
Page 30: Compensation Of The Light Fall-Off Of A Lens With Shading
If, however, outdoor photography is being performed without a computer (untethered), one can still create a Shading exposure, but it must later be identified as such in the Sinar eXposure™ software and it has to be as- signed to the respective images. -
Page 31: Preparation
Using a Shading Image in the Sinar eXposure™ Software 5.3.1 Preparation You have already installed the Sinar eXposure™ Software Version 6.1.1 or higher on your computer and you are already familiar with its current functions. The section that follows supplements the integrated help function of the Sinar eXposure™... -
Page 32: Computing The Shading
ONTENT Fig. 46: Contact sheet in the Sinar eXposure™ software: Marked Shading images The gray background that now surrounds the images designates the Shading file and the images to which it ha been allocated. The pie chart diagram on the right side indicates how strongly the Shading correction should be applied. With every click on that diagram, the correction is increased by a quarter.
