The Displays At The Hand Grip And In The Viewfinder; Easy Mode - Sinar Medium Format Camera System Hy6 Operating Manual

D
ISPLAY
9

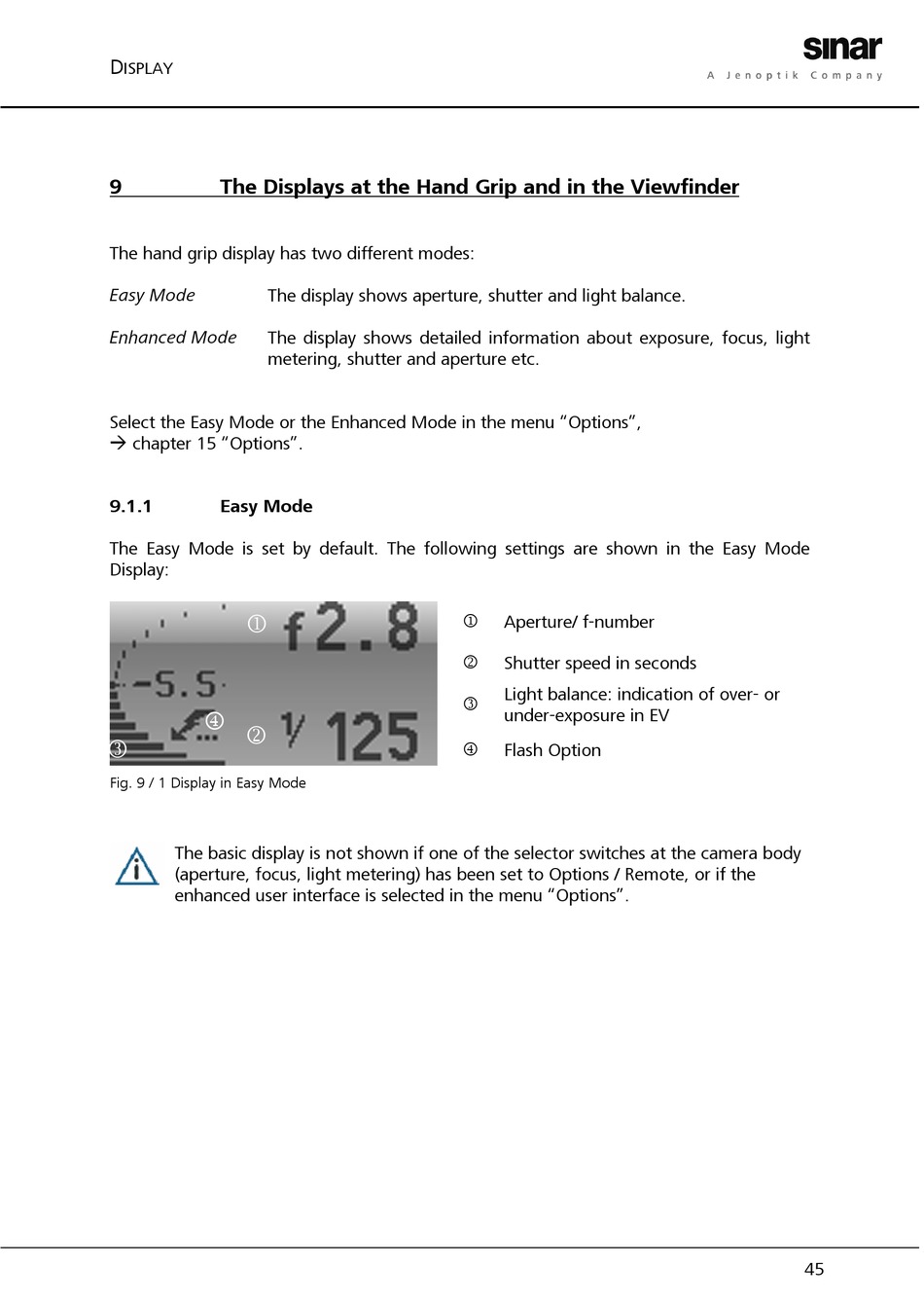

The Displays at the Hand Grip and in the Viewfinder

The hand grip display has two different modes:
The display shows aperture, shutter and light balance.

Easy Mode

The display shows detailed information about exposure, focus, light
Enhanced Mode
metering, shutter and aperture etc.
Select the Easy Mode or the Enhanced Mode in the menu "Options",
chapter 15 "Options".
9.1.1 Easy Mode
The Easy Mode is set by default. The following settings are shown in the Easy Mode
Display:
1
4
2
3
Fig. 9 / 1 Display in Easy Mode
The basic display is not shown if one of the selector switches at the camera body
(aperture, focus, light metering) has been set to Options / Remote, or if the
enhanced user interface is selected in the menu "Options".
Aperture/ f-number
1
2 Shutter speed in seconds
Light balance: indication of over- or
3
under-exposure in EV
4 Flash Option
45
