Sinar Medium Format Camera System Hy6 Operating Manual page 35

A I
SSEMBLY NSTRUCTIONS
4 1
2

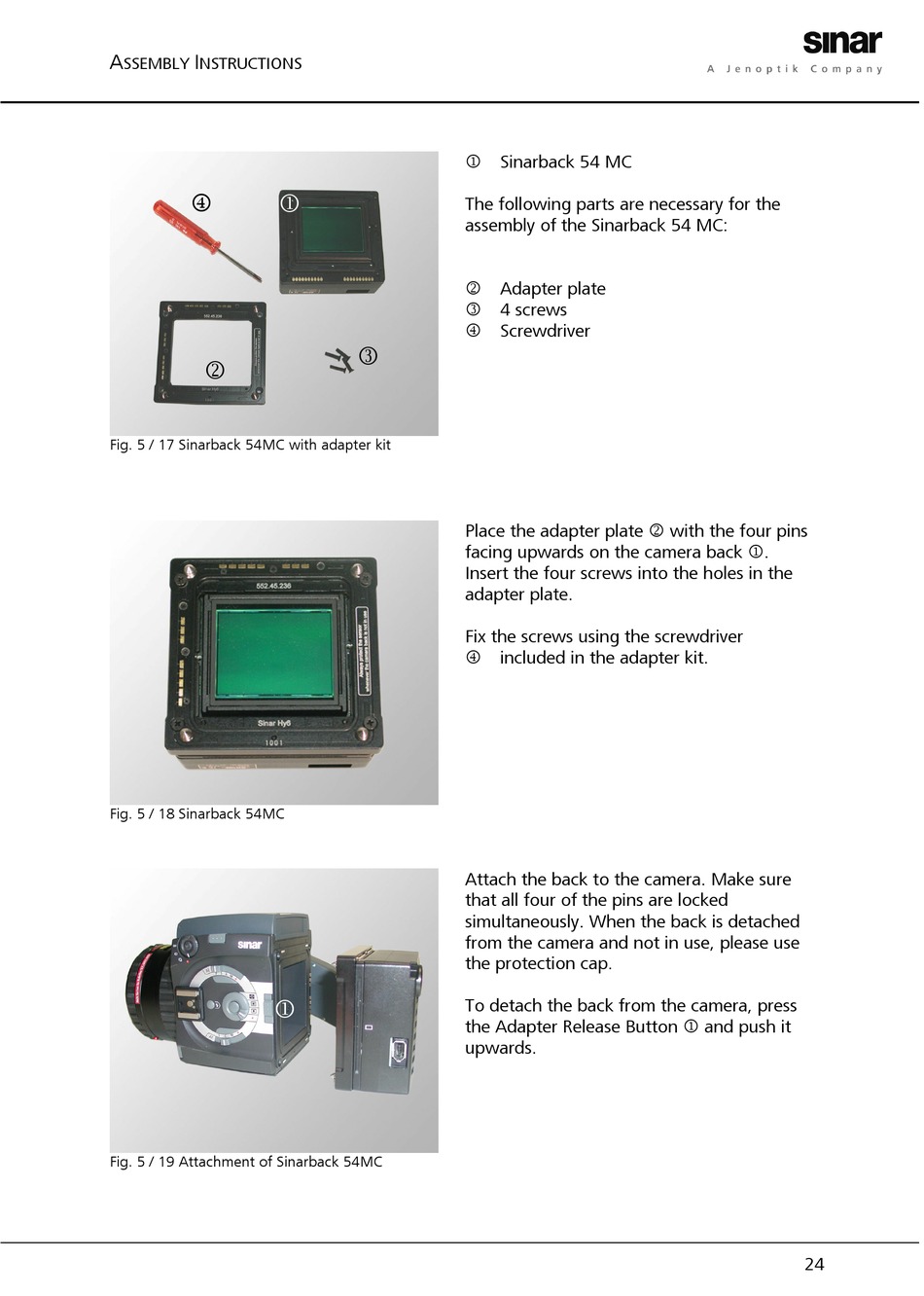

Fig. 5 / 17 Sinarback 54MC with adapter kit
Fig. 5 / 18 Sinarback 54MC
1
Fig. 5 / 19 Attachment of Sinarback 54MC
1 Sinarback 54 MC
The following parts are necessary for the
assembly of the Sinarback 54 MC:
2 Adapter plate
3 4 screws
4 Screwdriver
3
Place the adapter plate 2 with the four pins
facing upwards on the camera back 1.
Insert the four screws into the holes in the
adapter plate.
Fix the screws using the screwdriver
4 included in the adapter kit.
Attach the back to the camera. Make sure
that all four of the pins are locked
simultaneously. When the back is detached
from the camera and not in use, please use
the protection cap.
To detach the back from the camera, press
the Adapter Release Button 1 and push it
upwards.
