A I
SSEMBLY NSTRUCTIONS
5

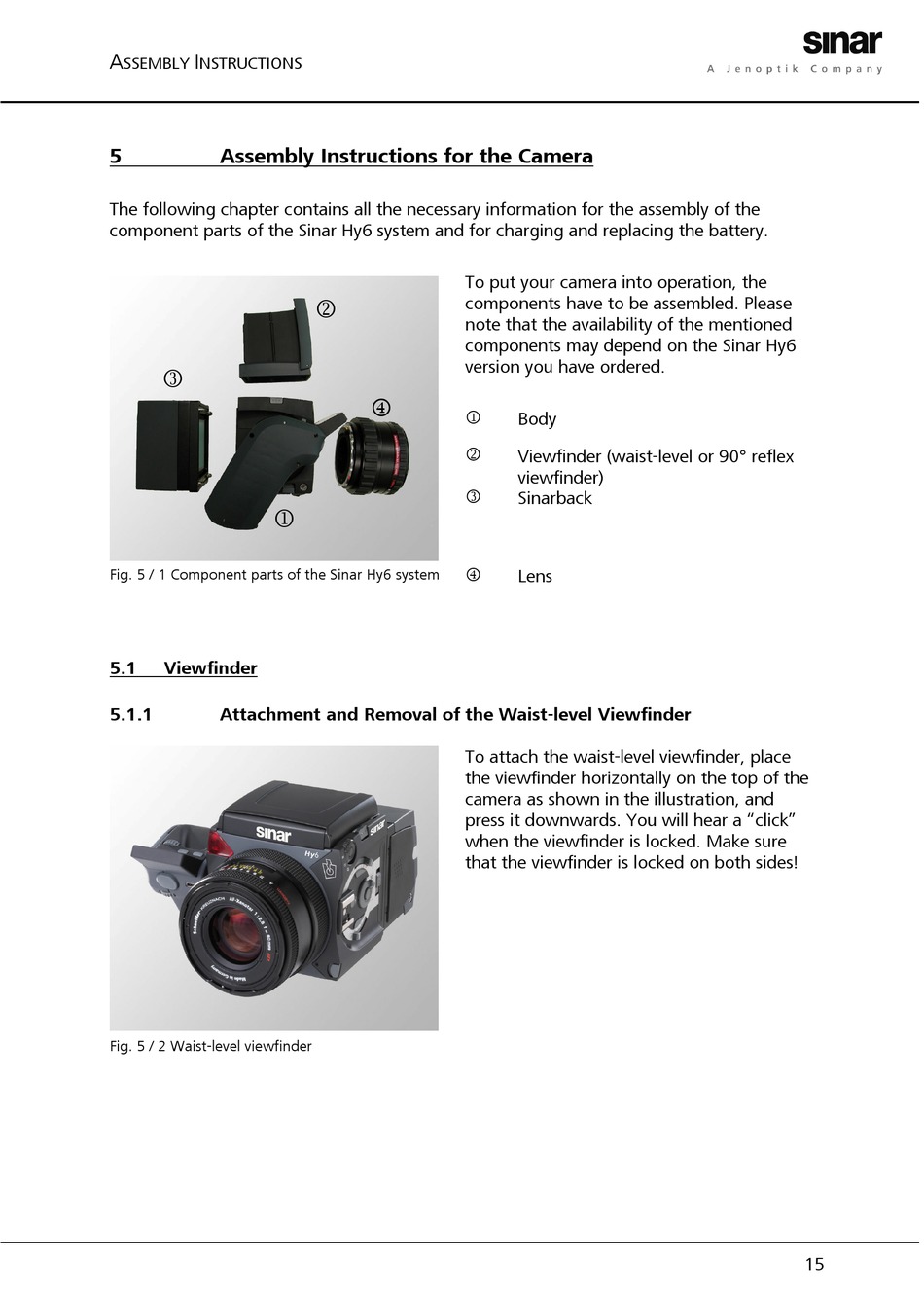

Assembly Instructions for the Camera

The following chapter contains all the necessary information for the assembly of the
component parts of the Sinar Hy6 system and for charging and replacing the battery.
3
1
Fig. 5 / 1 Component parts of the Sinar Hy6 system
5.1

Viewfinder

5.1.1

Attachment and Removal of the Waist-level Viewfinder

Fig. 5 / 2 Waist-level viewfinder
To put your camera into operation, the
components have to be assembled. Please
2
note that the availability of the mentioned
components may depend on the Sinar Hy6
version you have ordered.
4
1
2
3
4
To attach the waist-level viewfinder, place
the viewfinder horizontally on the top of the
camera as shown in the illustration, and
press it downwards. You will hear a "click"
when the viewfinder is locked. Make sure
that the viewfinder is locked on both sides!
Body
Viewfinder (waist-level or 90° reflex
viewfinder)
Sinarback
Lens
15
