A I
SSEMBLY NSTRUCTIONS
1

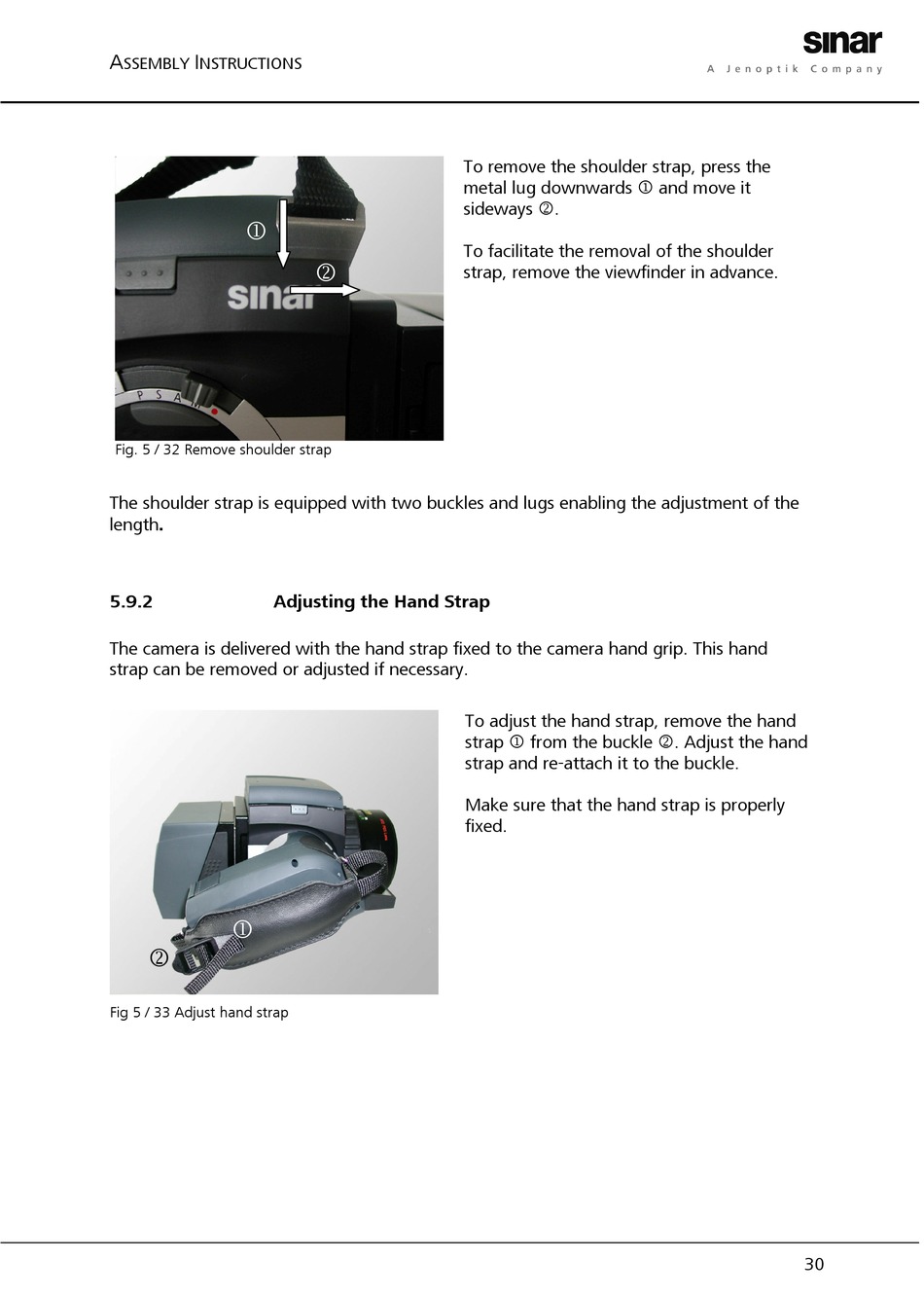

Fig. 5 / 32 Remove shoulder strap
The shoulder strap is equipped with two buckles and lugs enabling the adjustment of the
length.
5.9.2

Adjusting the Hand Strap

The camera is delivered with the hand strap fixed to the camera hand grip. This hand
strap can be removed or adjusted if necessary.
1
2
Fig 5 / 33 Adjust hand strap
To remove the shoulder strap, press the
metal lug downwards 1 and move it
sideways 2.
To facilitate the removal of the shoulder
2
strap, remove the viewfinder in advance.
To adjust the hand strap, remove the hand
strap 1 from the buckle 2. Adjust the hand
strap and re-attach it to the buckle.
Make sure that the hand strap is properly
fixed.
30
