A I
SSEMBLY NSTRUCTIONS
2

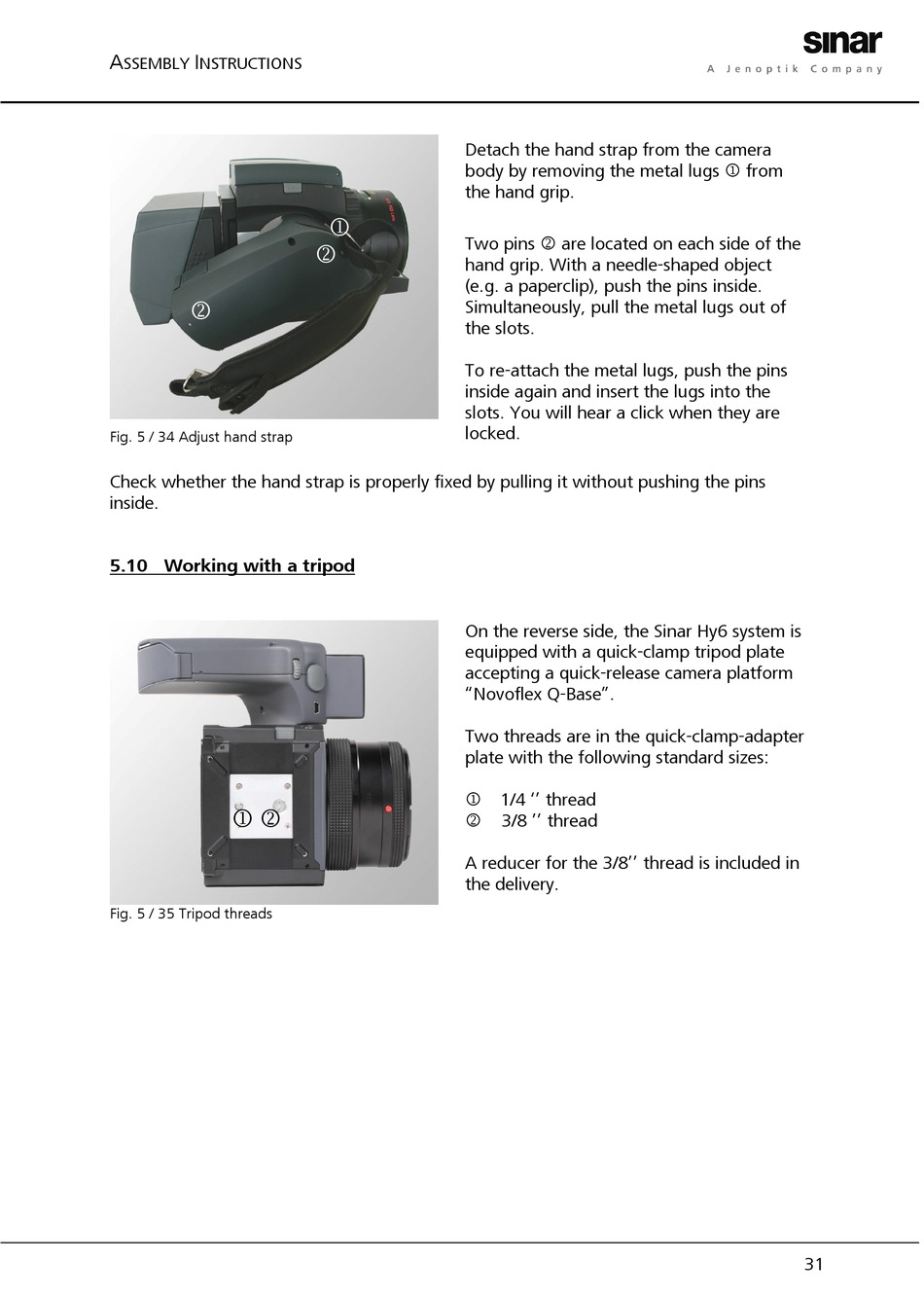

Fig. 5 / 34 Adjust hand strap
Check whether the hand strap is properly fixed by pulling it without pushing the pins
inside.

5.10 Working with a tripod

1 2
Fig. 5 / 35 Tripod threads
Detach the hand strap from the camera
body by removing the metal lugs 1 from
the hand grip.
1
Two pins 2 are located on each side of the
2
hand grip. With a needle-shaped object
(e.g. a paperclip), push the pins inside.
Simultaneously, pull the metal lugs out of
the slots.
To re-attach the metal lugs, push the pins
inside again and insert the lugs into the
slots. You will hear a click when they are
locked.
On the reverse side, the Sinar Hy6 system is
equipped with a quick-clamp tripod plate
accepting a quick-release camera platform
"Novoflex Q-Base".
Two threads are in the quick-clamp-adapter
plate with the following standard sizes:
1 1/4 '' thread
2
A reducer for the 3/8'' thread is included in
the delivery.
3/8 '' thread
31
