A I
SSEMBLY NSTRUCTIONS
5.9

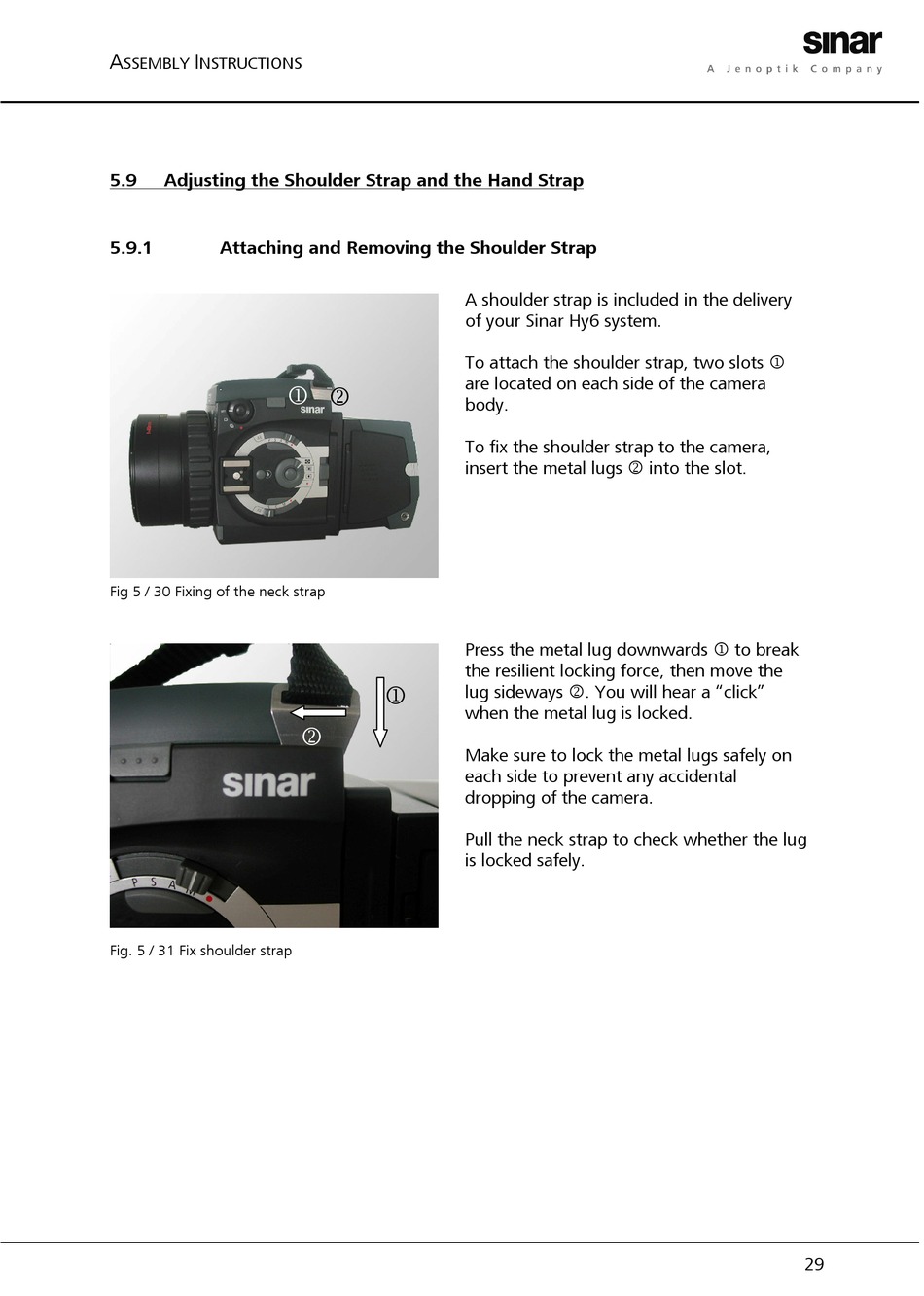

Adjusting the Shoulder Strap and the Hand Strap

5.9.1

Attaching and Removing the Shoulder Strap

Fig 5 / 30 Fixing of the neck strap
Fig. 5 / 31 Fix shoulder strap
1
2
1
2
A shoulder strap is included in the delivery
of your Sinar Hy6 system.
To attach the shoulder strap, two slots 1
are located on each side of the camera
body.
To fix the shoulder strap to the camera,
insert the metal lugs 2 into the slot.
Press the metal lug downwards 1 to break
the resilient locking force, then move the
lug sideways 2. You will hear a "click"
when the metal lug is locked.
Make sure to lock the metal lugs safely on
each side to prevent any accidental
dropping of the camera.
Pull the neck strap to check whether the lug
is locked safely.
29
