5.1.5 Use of the 90° Reflex Viewfinder
1

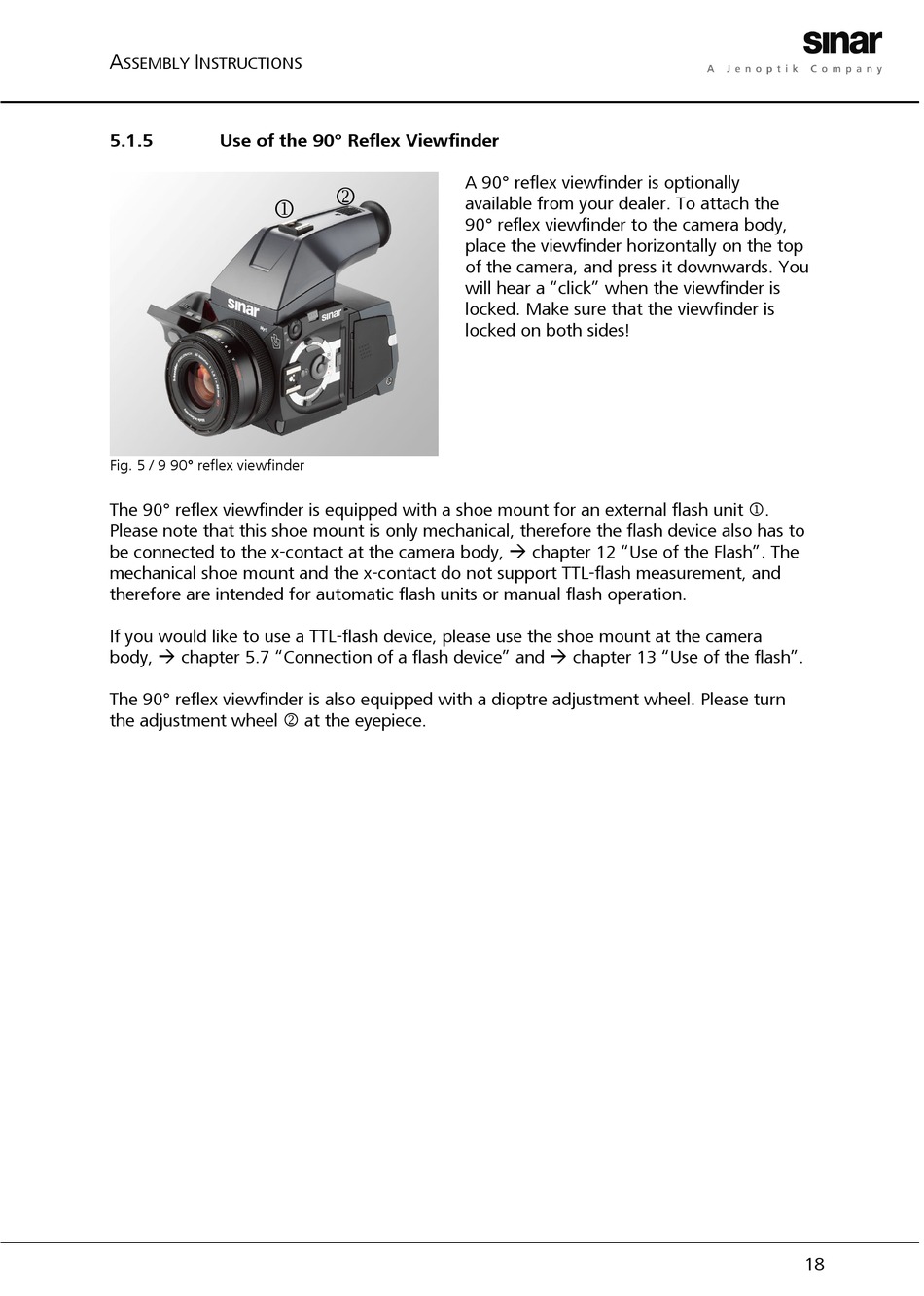

Fig. 5 / 9 90° reflex viewfinder
The 90° reflex viewfinder is equipped with a shoe mount for an external flash unit 1.
Please note that this shoe mount is only mechanical, therefore the flash device also has to
be connected to the x-contact at the camera body,
mechanical shoe mount and the x-contact do not support TTL-flash measurement, and
therefore are intended for automatic flash units or manual flash operation.
If you would like to use a TTL-flash device, please use the shoe mount at the camera
body, chapter 5.7 "Connection of a flash device" and
The 90° reflex viewfinder is also equipped with a dioptre adjustment wheel. Please turn
the adjustment wheel 2 at the eyepiece.
A 90° reflex viewfinder is optionally
2
available from your dealer. To attach the
90° reflex viewfinder to the camera body,
place the viewfinder horizontally on the top
of the camera, and press it downwards. You
will hear a "click" when the viewfinder is
locked. Make sure that the viewfinder is
locked on both sides!
chapter 12 "Use of the Flash". The
chapter 13 "Use of the flash".
