B
ATTERY
6.2

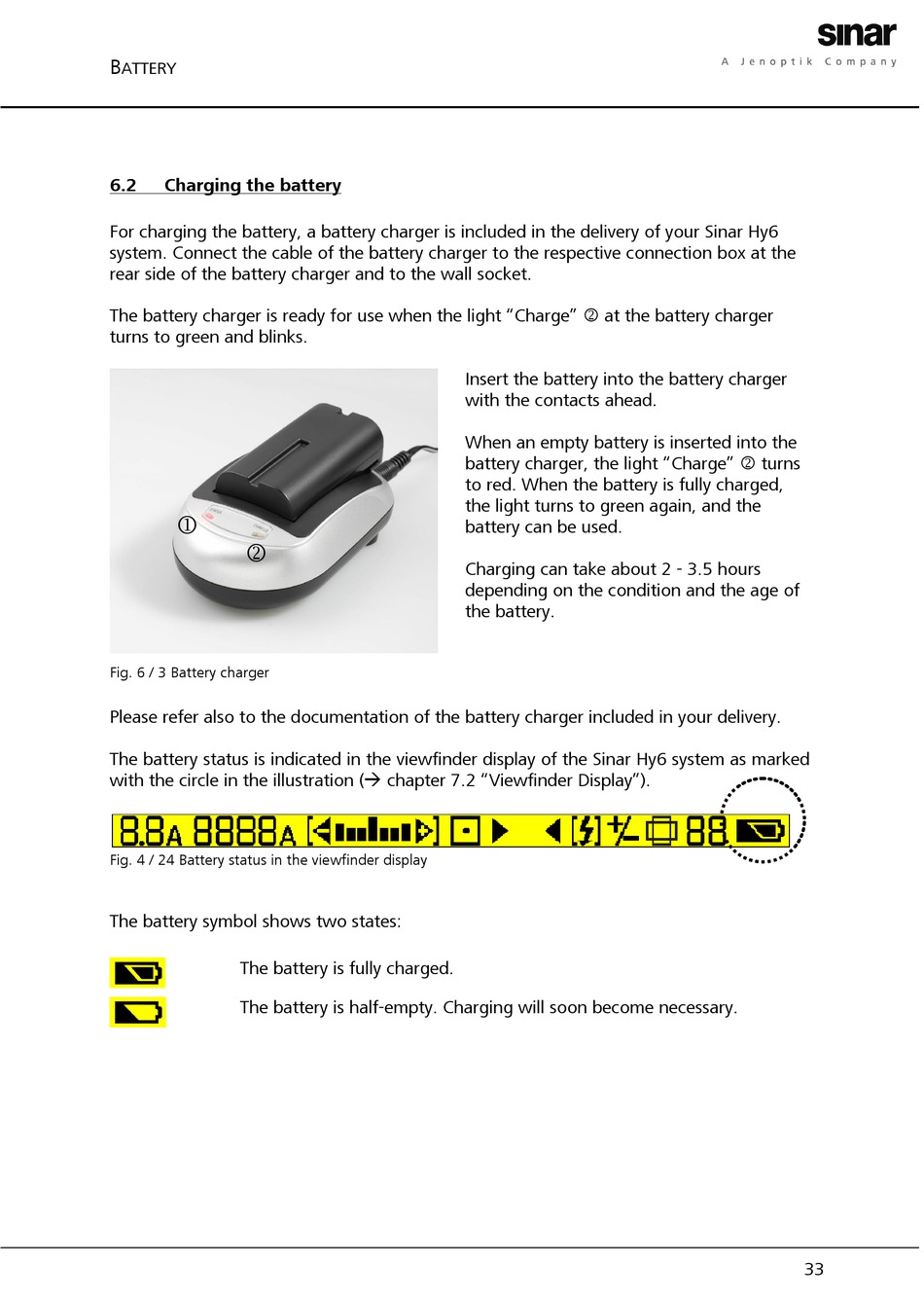

Charging the battery

For charging the battery, a battery charger is included in the delivery of your Sinar Hy6
system. Connect the cable of the battery charger to the respective connection box at the
rear side of the battery charger and to the wall socket.
The battery charger is ready for use when the light "Charge" 2 at the battery charger
turns to green and blinks.
1
2
Fig. 6 / 3 Battery charger
Please refer also to the documentation of the battery charger included in your delivery.
The battery status is indicated in the viewfinder display of the Sinar Hy6 system as marked
with the circle in the illustration (
Fig. 4 / 24 Battery status in the viewfinder display
The battery symbol shows two states:
The battery is fully charged.
The battery is half-empty. Charging will soon become necessary.
Insert the battery into the battery charger
with the contacts ahead.
When an empty battery is inserted into the
battery charger, the light "Charge" 2 turns
to red. When the battery is fully charged,
the light turns to green again, and the
battery can be used.
Charging can take about 2 - 3.5 hours
depending on the condition and the age of
the battery.
chapter 7.2 "Viewfinder Display").
