Sinar Medium Format Camera System Hy6 Operating Manual page 33

A I
SSEMBLY NSTRUCTIONS

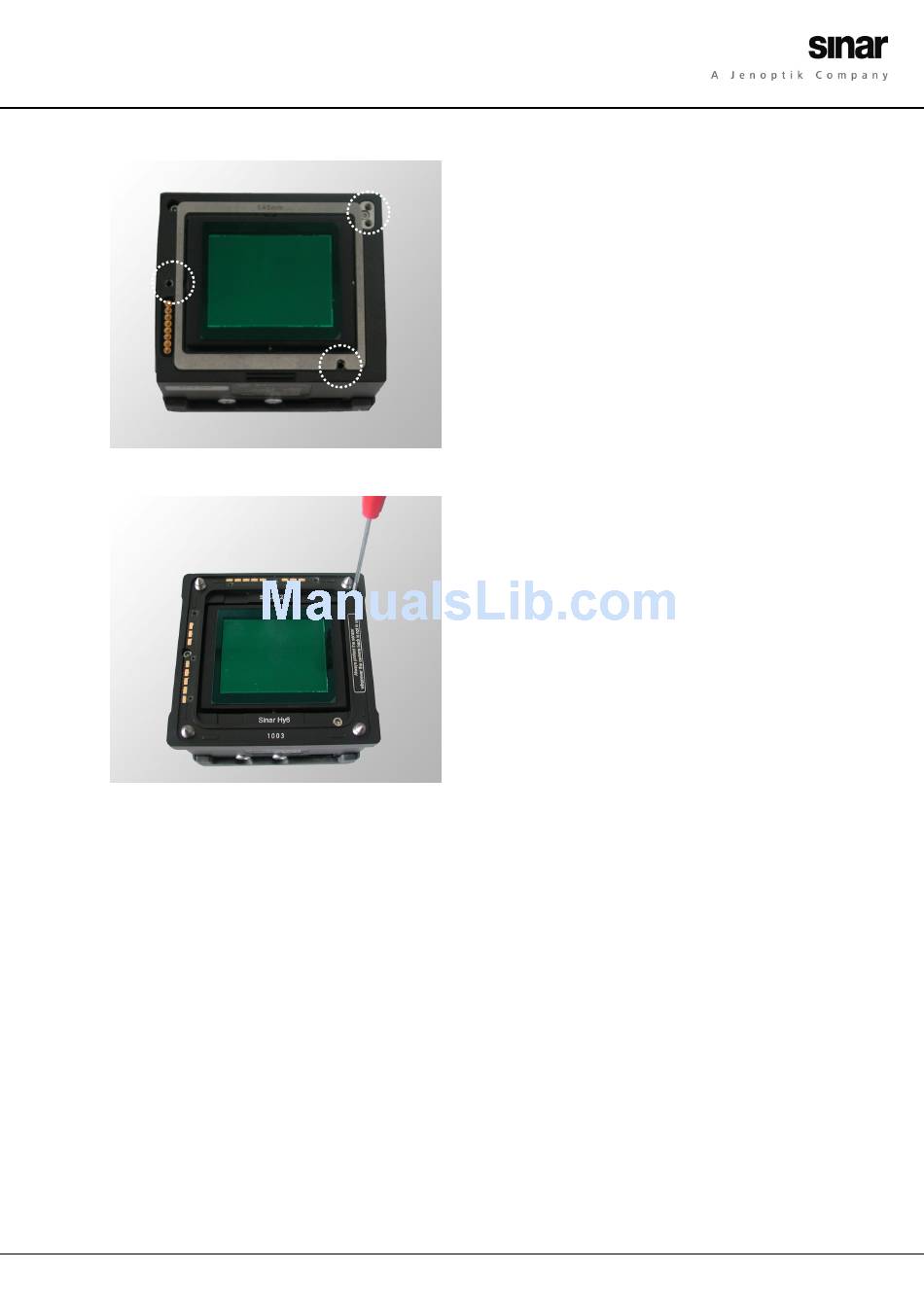

Fig. 5 / 13 Assembly of the Sinarback eMotion
Fig. 5 / 14 Assembly of the Sinarback eMotion
Place the spacer on the Sinarback. The
openings of the spacer have to be placed
over the holes of the Sinarback as indicated
with the white circles in Fig. 5 / 13.
Insert the three screws into the holes in the
adapter plate as shown in the image left.
Place the adapter plate on the back. The
openings for the screws have to be placed
over the holes in the adapter plate.
Make sure that the pins in the plate point
upwards, as the back will be fixed to the
camera by means of those pins.
Insert all three of the screws into the
respective openings.
Fix the screws with the screwdriver included
in your delivery.
