A I
SSEMBLY NSTRUCTIONS
5.1.3

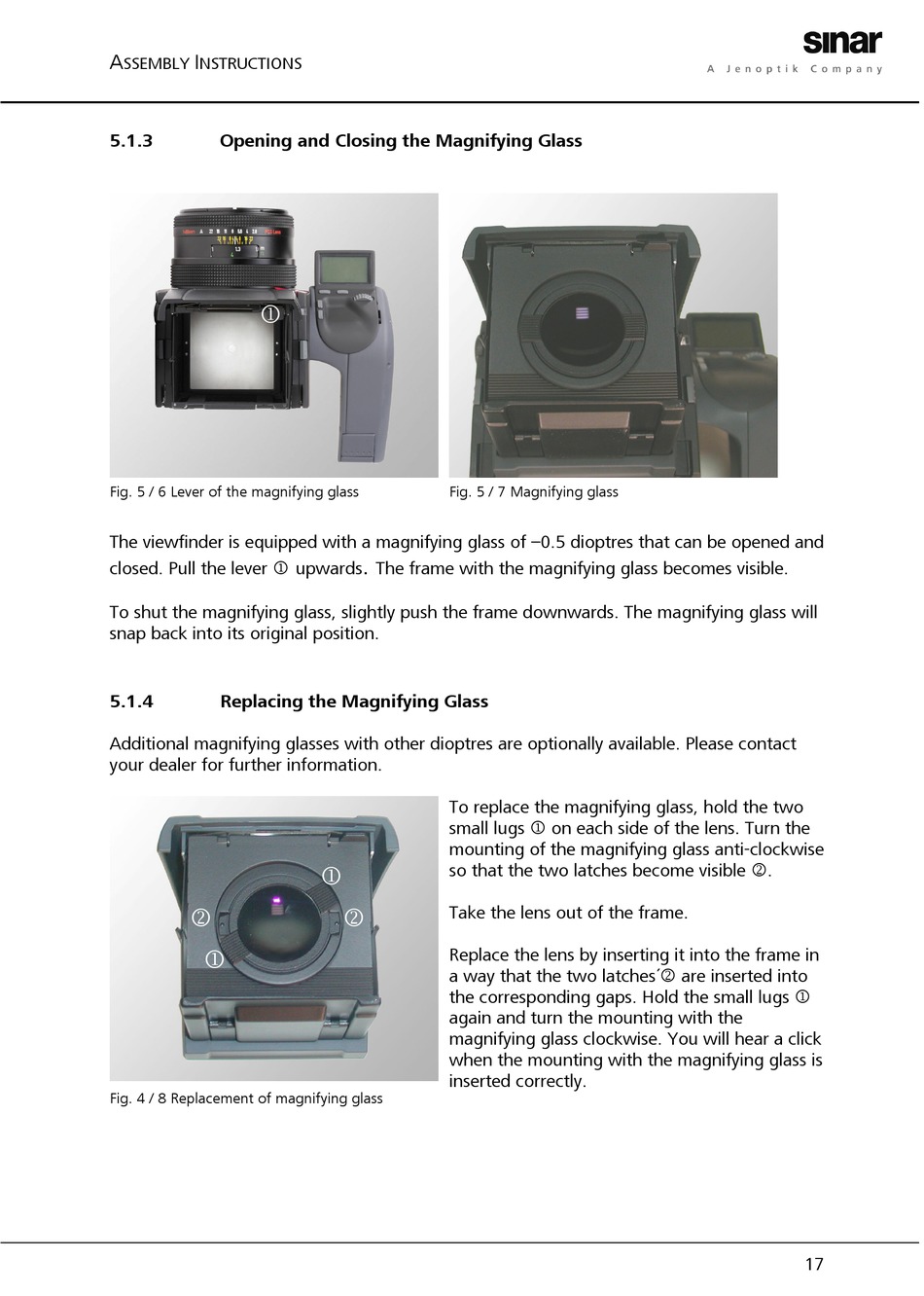

Opening and Closing the Magnifying Glass

1
Fig. 5 / 6 Lever of the magnifying glass
The viewfinder is equipped with a magnifying glass of –0.5 dioptres that can be opened and
closed. Pull the lever 1 upwards
To shut the magnifying glass, slightly push the frame downwards. The magnifying glass will
snap back into its original position.
5.1.4

Replacing the Magnifying Glass

Additional magnifying glasses with other dioptres are optionally available. Please contact
your dealer for further information.
2
1
Fig. 4 / 8 Replacement of magnifying glass
Fig. 5 / 7 Magnifying glass
.
The frame with the magnifying glass becomes visible.
To replace the magnifying glass, hold the two
small lugs 1 on each side of the lens. Turn the
mounting of the magnifying glass anti-clockwise
so that the two latches become visible 2.
1
Take the lens out of the frame.
2
Replace the lens by inserting it into the frame in
a way that the two latches´2 are inserted into
the corresponding gaps. Hold the small lugs 1
again and turn the mounting with the
magnifying glass clockwise. You will hear a click
when the mounting with the magnifying glass is
inserted correctly.
17
