Johnson Controls METASYS VAV110 Technical Manual page 70

120VAC
ANALOG INPUTS
DPT1
OUT 1
COM 2
VDC 3
DPT2
OUT 1
COM 2
VDC 3
70 VAV Controller—Variable Air Volume Controller
120/24VAC
24VAC
Power
Transformer
BINARY IN
TE2

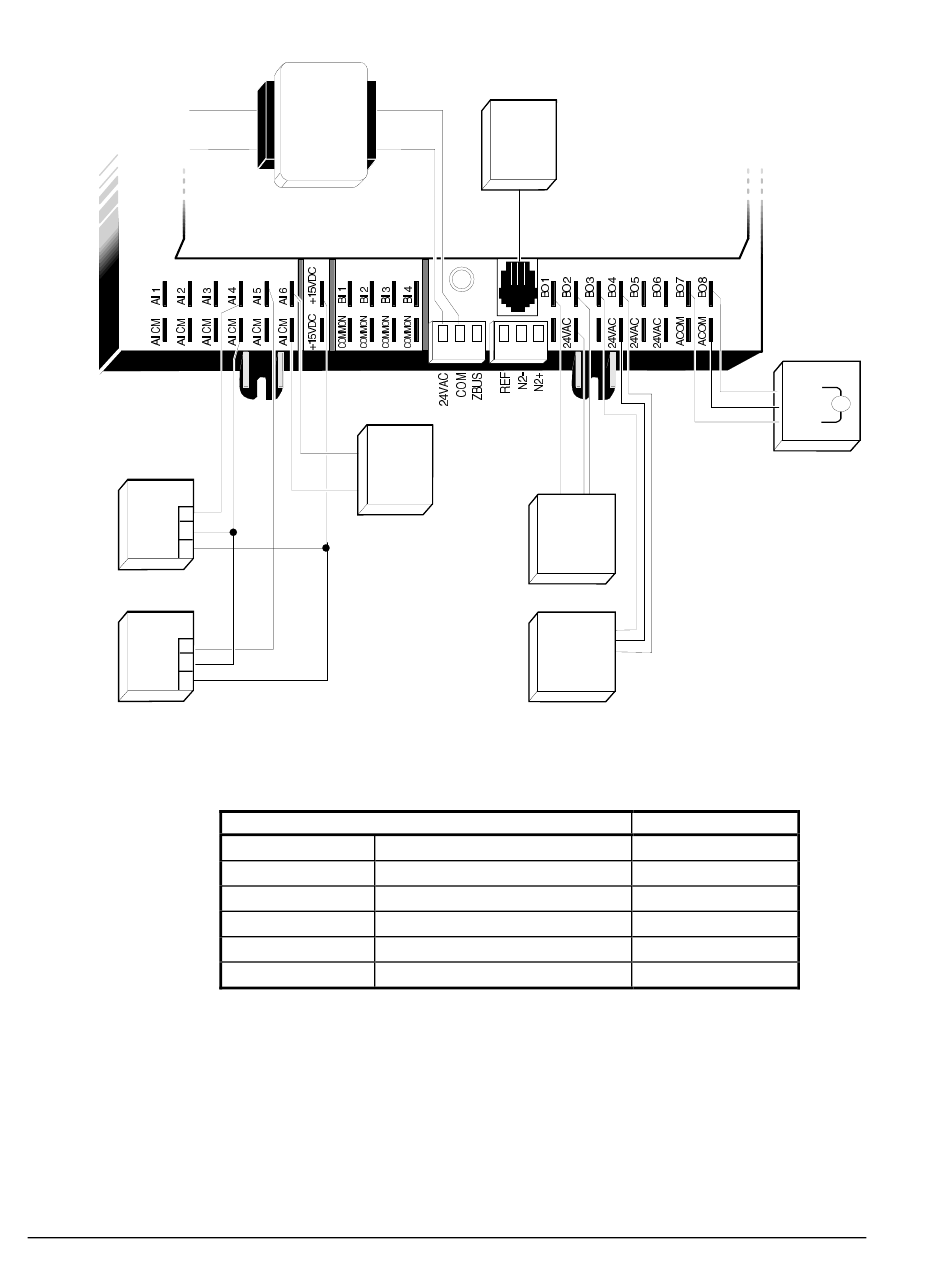

Figure 36: Dual Duct Wiring Example 2
Table 30: Dual Duct Wiring Example 2 Bill of Materials
Component Description
C1 Digital Controller
TE1 Metastat
Discharge Air
TE2
DPT1 and DA1 Cold Deck
DPT2 and DA2 Hot Deck
Lighting Relay
R1
TE1
Room
Sensor
BIN ARY OUTPUTS
DSI
DA1
Damper
Actuator
DA2
Damper
Actuator
R1
Lighting
Relay
ON
COM
OFF
vavwe5a
Part Number
AS-VAV110-1
TE-6400
TE-6000 Series
ATP-2040-nn
ATP-2040-nn
GE-RR7
C
