The following table illustrates the selections made through HVAC PRO for
Windows for this example.
Note: The examples contained in this technical bulletin do not reflect all
of the possible questions and answers. These examples are
provided as a basic overview of wiring locations you might expect
to see.
Table 29: Dual Duct Wiring Example 2
Questions and Configuration Selections
HVAC PRO for Windows Questions
Control Strategy
Discharge Air Low Limit
Exhaust Box Required
Baseboard Heat Type
Lighting Integration
Hot Deck
DPT2
Cold Deck

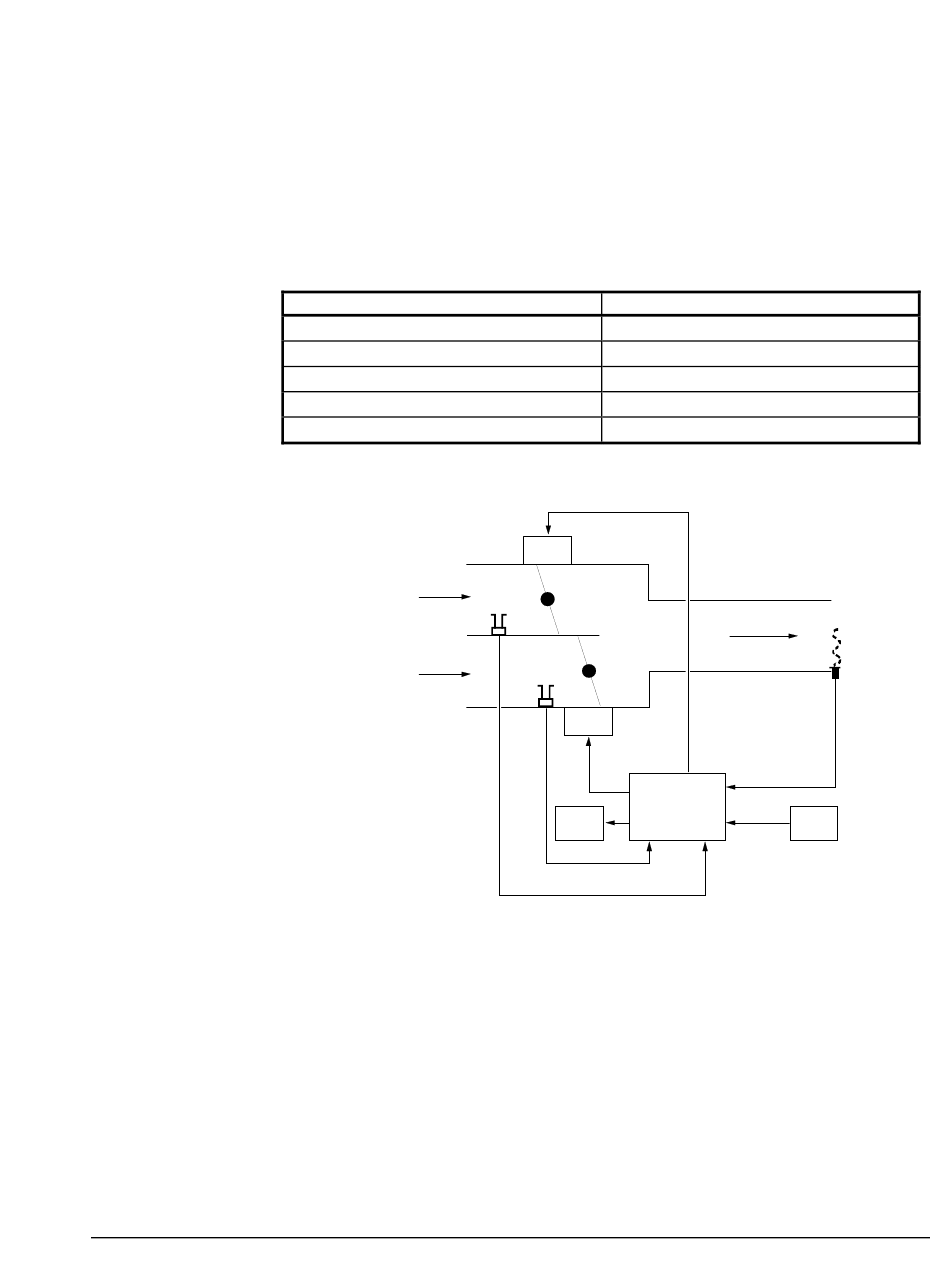

Figure 35: Dual Duct Wiring Example 2
Configuration Selections
Pressure Independent
Yes
No
No
Yes
DA2
DA1
DPT1
R1
Mechanical Flow Diagram
VAV Controller—Variable Air Volume (VAV) Controller 69
TE2
C1
TE1
VAV5
