Note: The examples contained in this technical bulletin do not reflect all
of the possible questions and answers. These examples are
provided as a basic overview of wiring locations you might expect
to see.
Table 18: Single Duct Wiring Example 1
Questions and Configuration Selections
HVAC PRO for Windows Questions
Control Strategy
Fan Type
Exhaust Box Required
Baseboard Heat Type
Box Heat Type
Lighting Integration
Note: The OEM box manufacturer typically supplies the fan relays and
electric heat relays.
Plenum
Supply
DPT1
Figure 23: Single Duct Wiring Example 1
Configuration Selections
Pressure Independent
Series/On-Off
Not Available
None
3-Stages
Yes
H
T
G
DA1 R
C 1
R1

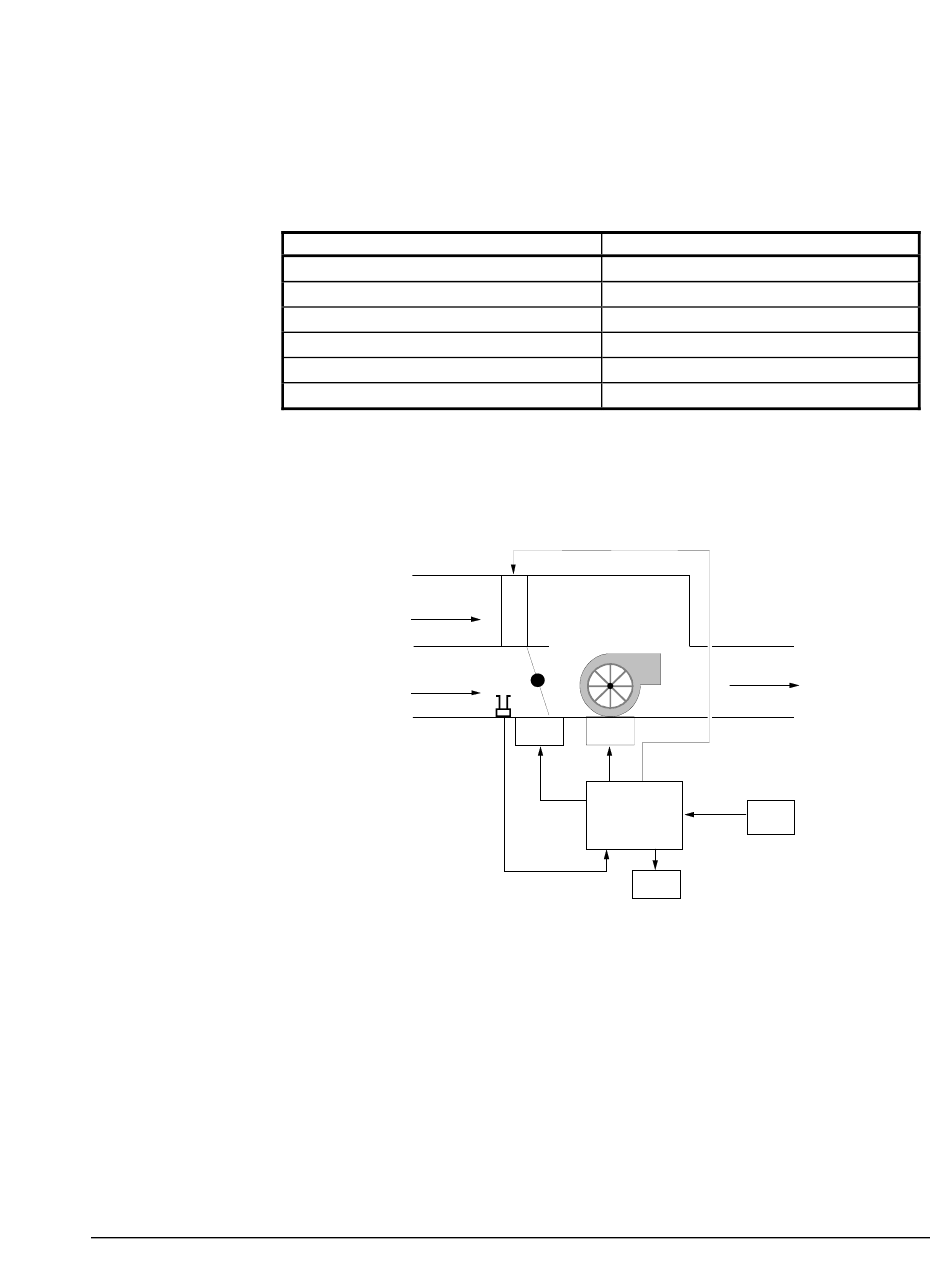

Mechanical Flow Diagram
VAV Controller—Variable Air Volume (VAV) Controller 55
Discharge
TE1
vav1
