The following table illustrates the selections made through HVAC PRO for
Windows for this example.
Note: The examples contained in this technical bulletin do not reflect all
of the possible questions and answers. These examples are
provided as a basic overview of wiring locations you might expect
to see.
Table 22: Single Duct Wiring Example 3
Questions and Configuration Selections
HVAC PRO for Windows Questions
Control Strategy
Fan Type
Exhaust Box Required
Baseboard Heat Type
Box Heat Type
Lighting Integration
Figure 27: Single Duct Wiring Example 3
Configuration Selections
Pressure Dependent Without Feedback
Not Available
Not Available
On-Off
Incremental
Yes
H
T
G
DA1 VA2
C1
R1

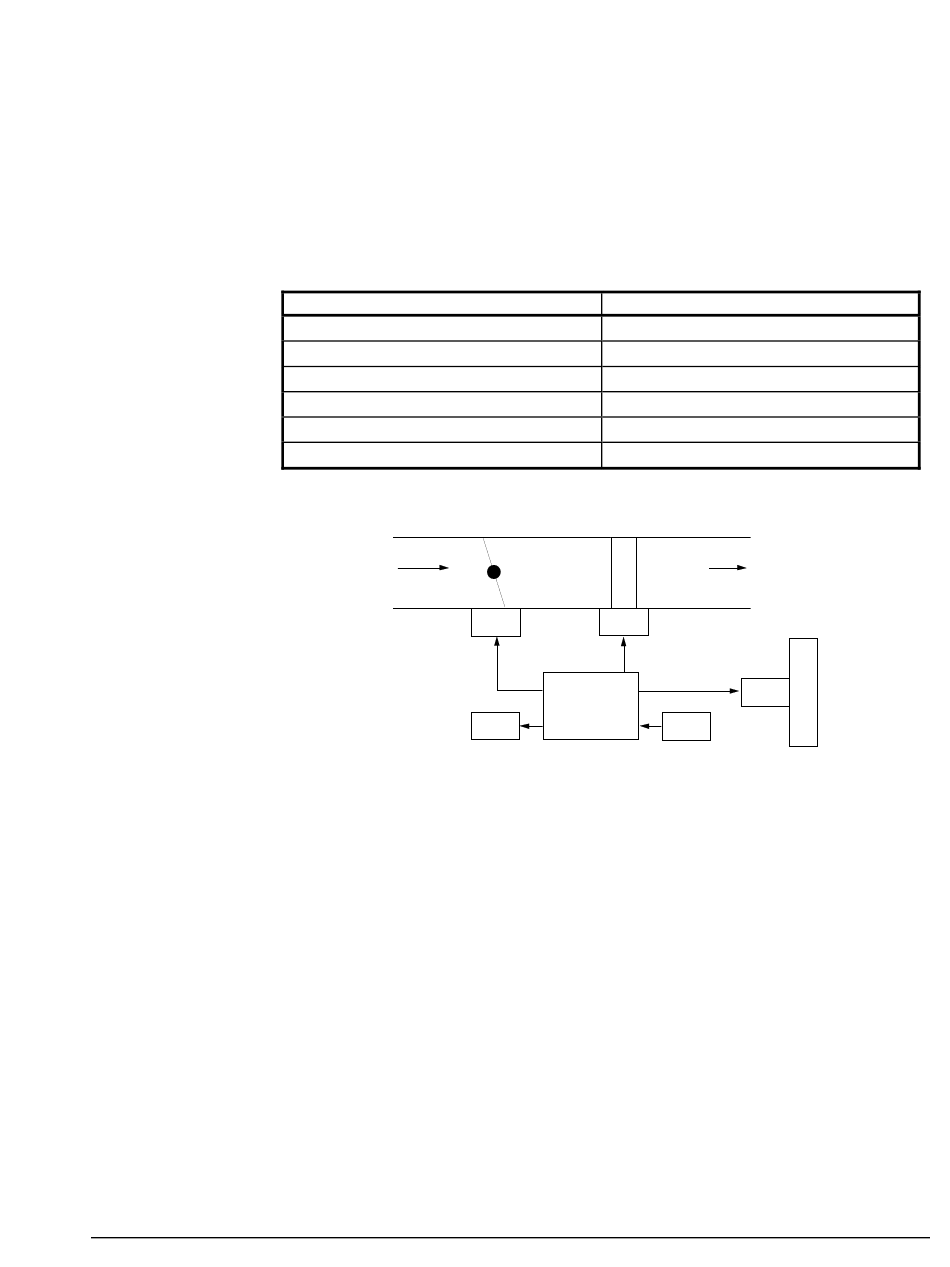

Mechanical Flow Diagram
VAV Controller—Variable Air Volume (VAV) Controller 59
B
A
S
VA1
E
B
TE1
D
VAV3
