Fabricating an
Interconnection
Cable
You must construct any fabricated interconnection cable so the same color
wire on both ends of the cable align with Pin 1 in the plug. This provides a
consistent field assembly of the cable. Figure 17 illustrates the

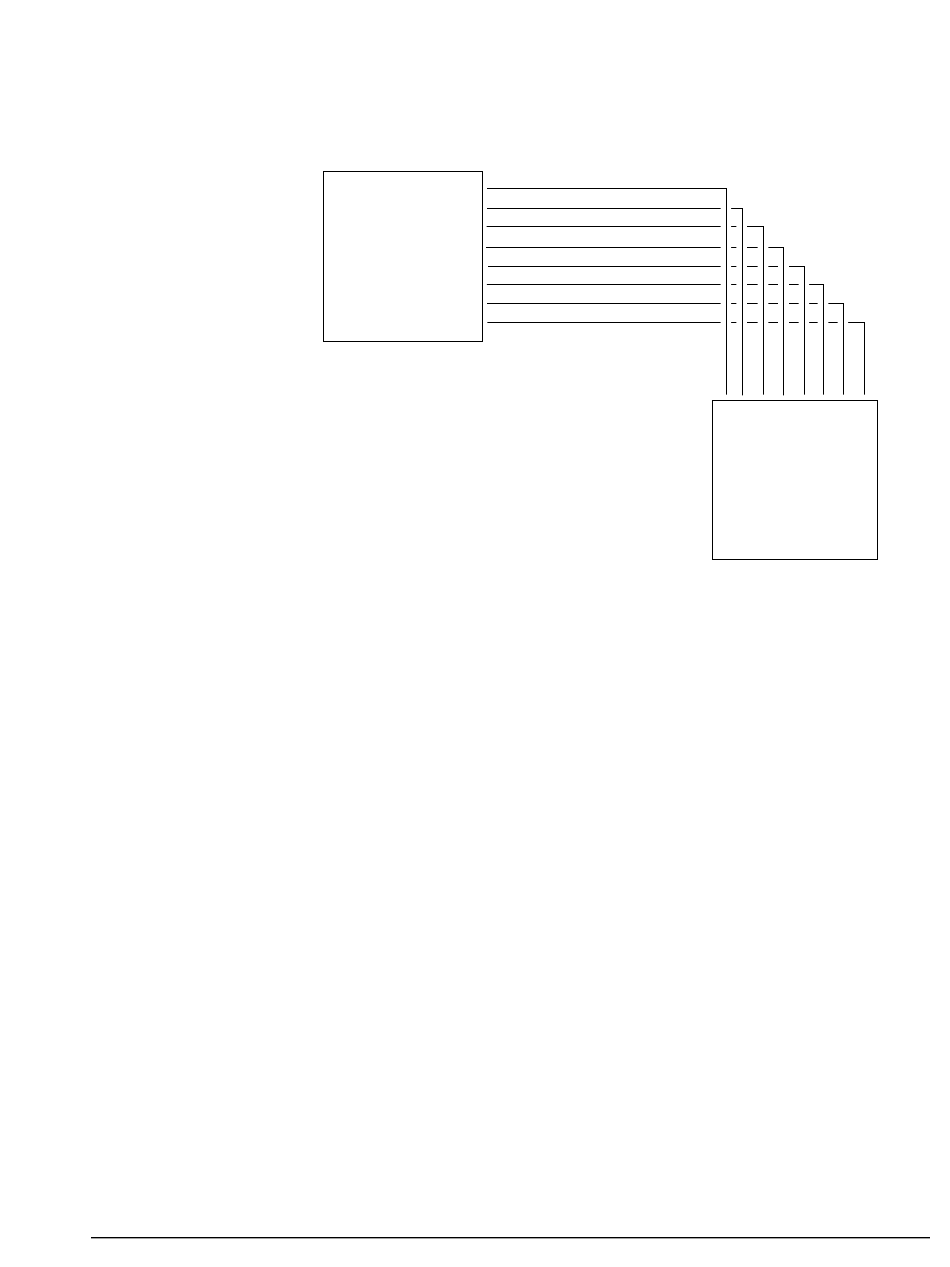

interconnection cable.
Metastat
Phone Plug
Figure 17: Interconnection Cable
Note: This is not typical of pre-assembled phone cable purchased in retail
stores. A telephone system cable is wired opposite the zone sensor
requirements.
ZBUS
8
AI2/3 COM
7
COM
6
24VAC
5
AI1COM
4
AI1
3
AI2
2
AI3
1
VAV Controller—Variable Air Volume (VAV) Controller 43
8 7 6 5 4 3 2 1
Controller
Phone Plug
CBLFAB
