Altronix TROVE Trove2HW2 Installation Manual page 6

Installation Instructions for Honeywell PRO32E1PS or PW6K2E2PS to THW3:
1. Install four (4) mounting screws approximately halfway into mounting holes in the power supply's frame.
2. Position the power supply over four (4) keyholes (B) on THW3 so the AC Input terminal marked [CN1] (smaller opening in the frame)
is positioned to the bottom.
3. Slide the power supply to the left until secure. Tighten the mounting screws.
Installation Instructions for Honeywell Access Controllers to THW3:

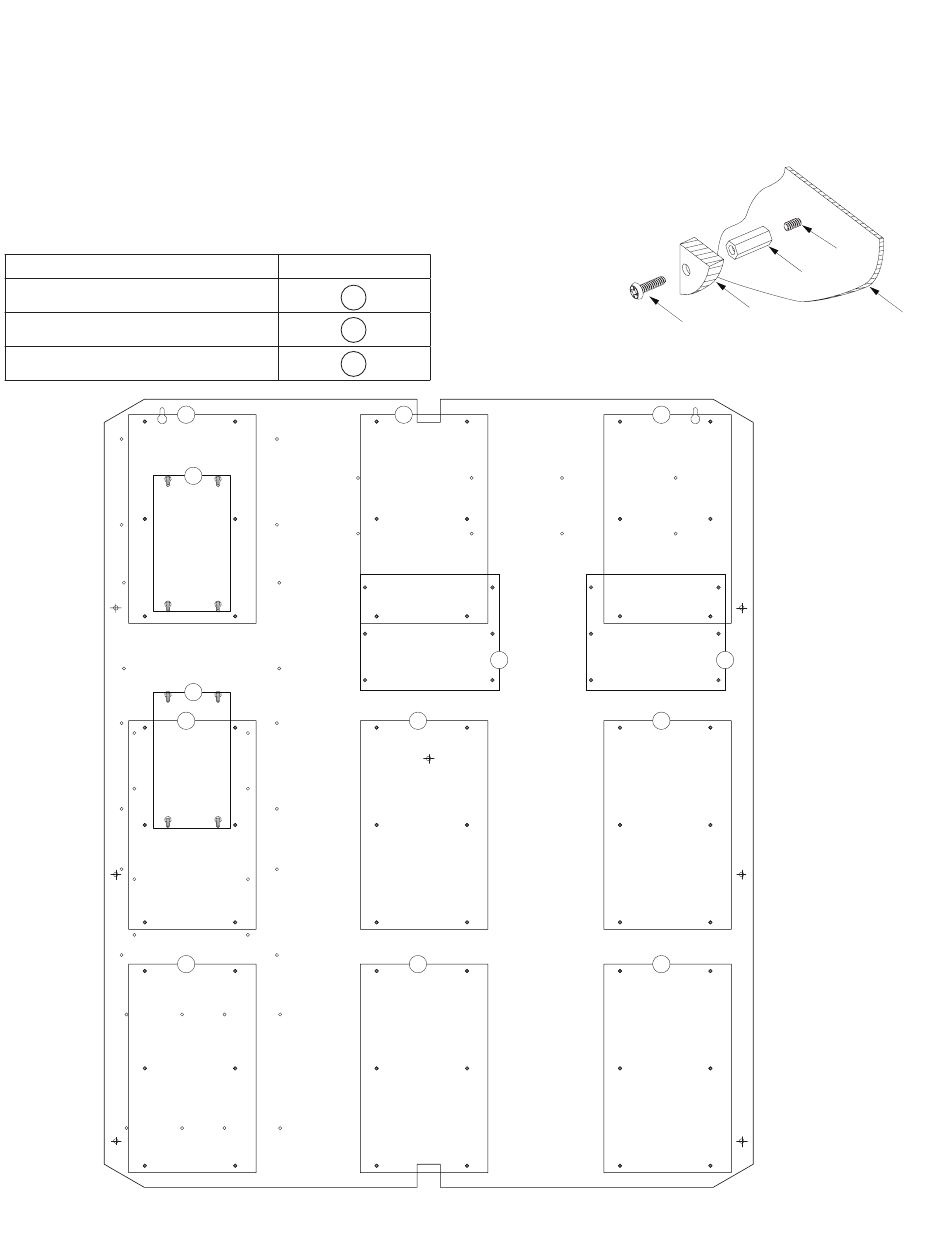

1. Fasten standoffs (provided) into pem configuration (A) or (C) of backplane (Fig. 5, pg. 6).
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 5a, pg. 6).
3. Mount backplane to enclosure with hardware.
Honeywell ProWatch/WinPak Power Supply or Access Controller
Position Chart for the Following Models:
Honeywell Board
3200 Series or WIN-PAK Series
PRO32E1PS or PW6K2E2PS
PRO22MX8
Fig. 5
A
A
A
- 6 -
Pem Mounting
A
B
C
B
B
A
C
A
A
Standoff
Honeywell
Pan Head
Access Controller
Screw
A
C
A
A
Fig. 5a
Pem
Backplane
TroveHW
