Access & Power Integration
Trove2KA2
- Trove2 enclosure with Altronix/Keyscan backplane (TKA2)
TKA2
- Altronix/Keyscan backplane only
Trove3KA3
- Trove3 enclosure with Altronix/Keyscan backplane (TKA3)
TKA3
- Altronix/Keyscan backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TKA042816
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
SIGNALING
More than just power.™
Advertisement
Related Manuals for Altronix Trove Trove2KA2
Summary of Contents for Altronix Trove Trove2KA2
- Page 1 SIGNALING Access & Power Integration Trove2KA2 - Trove2 enclosure with Altronix/Keyscan backplane (TKA2) TKA2 - Altronix/Keyscan backplane only Trove3KA3 - Trove3 enclosure with Altronix/Keyscan backplane (TKA3) TKA3 - Altronix/Keyscan backplane only Installation Guide More than just power.™ All registered trademarks are property of their respective owners.

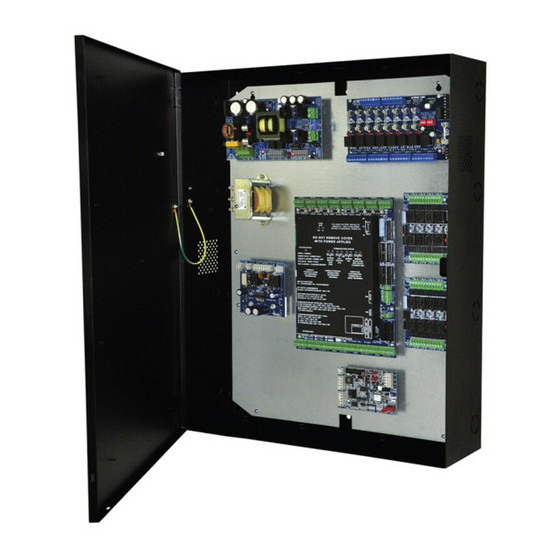

- Page 2 Overview: Trove2KA2/Trove3KA3 accommodates various combinations of Keyscan boards with or without Altronix power supplies and accessories for access systems. Specifications: Trove2KA2 Trove3KA3 Trove2 enclosure with TKA2 Altronix/Keyscan backplane Trove3 enclosure with TKA3 Altronix/Keyscan backplane • Includes: tamper switch, cam lock, and mounting hardware.
- Page 3 Sub-Assembly Boards and Keyscan Boards Fasten metal and snap on spacers (provided) to pems which match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 2, 2a, pg. 3). Note: Please fasten metal and snap on spacers in the proper locations (Fig. 2, pg. 3).
- Page 4 Sub-Assembly Boards and Keyscan Boards Fasten metal and snap on spacers (provided) to pems which match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 3, 3a, pg. 4). Note: Please fasten metal and snap on spacers in the proper locations (Fig. 3, pg. 4).
- Page 5 TKA2 Dimensions (H x W x D): 25.375” x 19.375” x 0.3125” (644.6mm x 492.1mm x 7.9mm) 19.375” (492.1mm) 2.2” (55.9mm) 2.2” (55.9mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5” (190.5mm) 7.5” (190.5mm) 9.2” (233.7mm) 9.2” (233.7mm) Trove2KA2 / Trove3KA3 - 5 -...
- Page 6 Trove2KA2 Enclosure Dimensions (H x W x D approximate): 27.25” x 21.75” x 6.5” (692.15mm x 546.1mm x 165.1mm) 21.50” (546.1mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.35mm) 3.5”(88.9mm) 3.5”(88.9mm) 5.25” (133.35mm) 0.685” (17.4mm) 1.25” Knockouts 0.5625” (14.3mm) (31.8mm) 1.77” 1.125” (28.3mm) (45mm) 2.415”...
- Page 7 TKA3 Dimensions 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” (711.2mm) 2.5” (63.5mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 13.5” 13.5” (342.9mm) (342.9mm) - 7 - Trove2KA2 / Trove3KA3...
- Page 8 2” (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. MEMBER IITrove2KA2/3KA3 K08S - 8 -...
