Altronix TROVE Trove2HW2 Installation Manual page 5

Installation Instructions for Altronix Power Supplies and Sub-Assemblies to THW3:
1. Fasten standoffs (provided) into pem configuration (A) or (B) of backplane (Fig. 4, pg. 5).
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 4a, pg. 5).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Altronix Board
Altronix Power Supply/Charger or
Sub-Assembly
Altronix Sub-Assembly

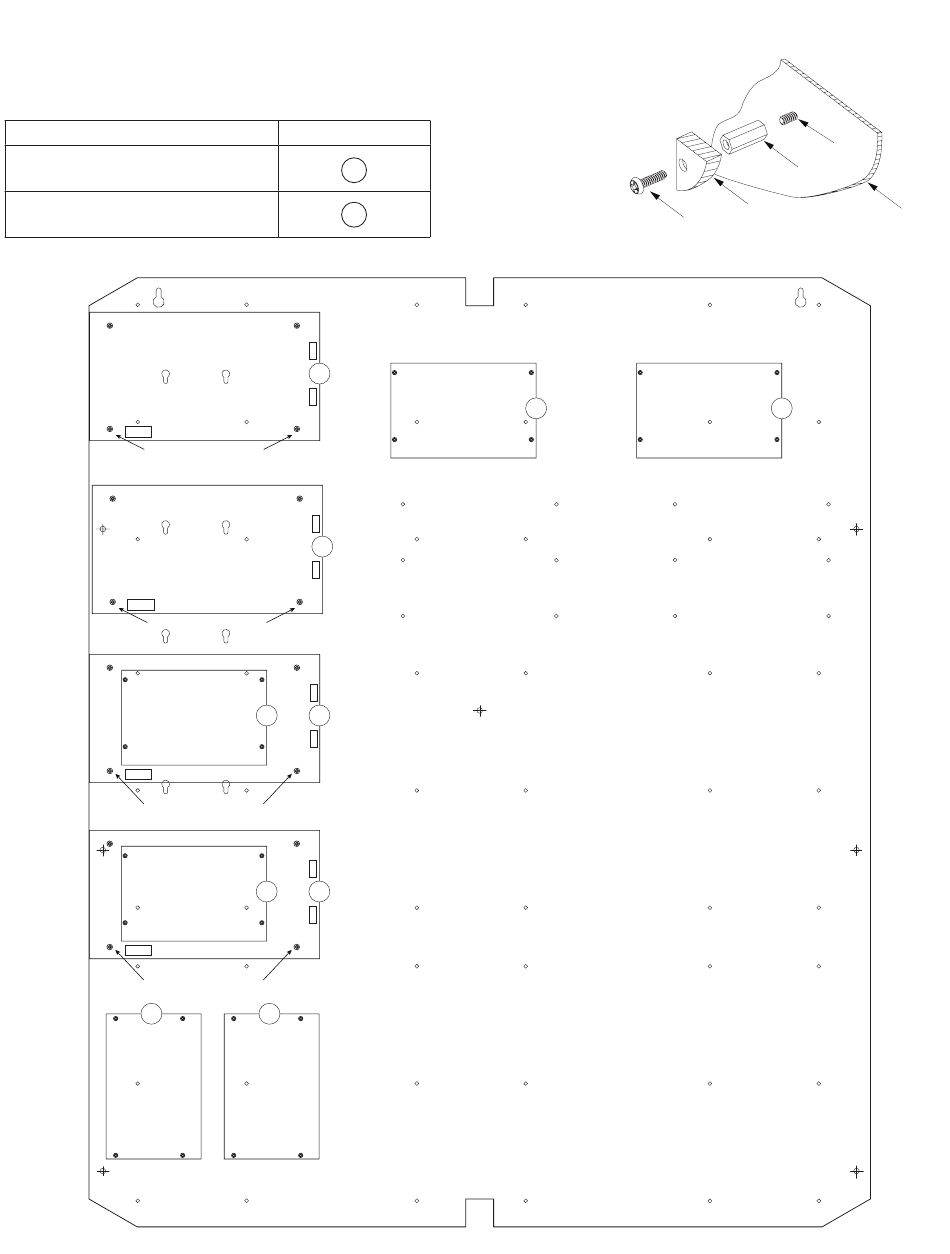

Fig. 4
Metal Standoff Placement
Metal Standoff Placement
Metal Standoff Placement
Metal Standoff Placement
B
TroveHW
Pem Mounting
A
B
A
A
B A
B A
B
Pan Head
Screw
B
Fig. 4a
Pem
Standoff
Altronix
Backplane
Power Supply or
Sub-Assembly
B
- 5 -
